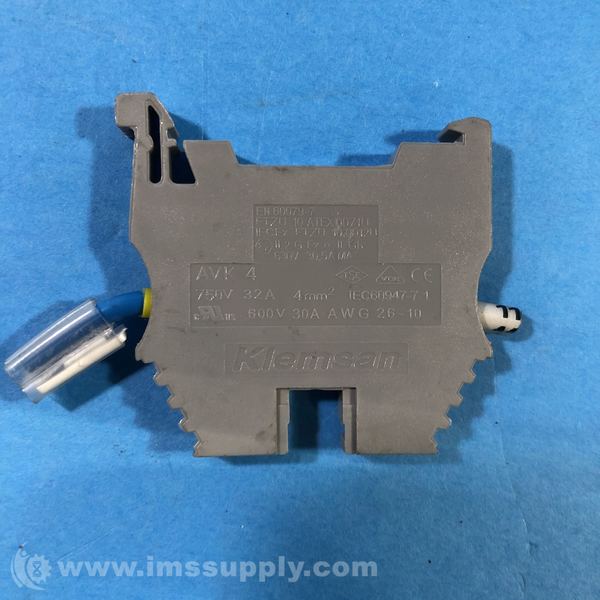

KLEMSAN AVK 4 DIN RAIL TERMINAL
Quick Overview
Manufactured By: KLEMSAN
Manufacturer Part Number: AVK 4
IMS Product Code: 1904062
Packaging: Sold Individually
Description:
Klemsan AVK 4 Din Rail Terminal
Klemsan AVK 4 Din Rail Wire Terminal for electrical connections
Specifications
- Insulating material: PA
- Inflammability class acc. to UL 94: V2
- Width: 6 mm
- Length: 44.2 mm
- Height (MR 35×7.5): 44.5 mm
- Nominal Voltage: 750 V ~
- Nominal Current: 32 A
- Cross Section: 4 mm2
- Norm: EN 60947-7-1
- VDE Norm: IEC 60947-7-1
- UL Nominal Voltage: 600 V ~
- UL Nominal Current: 30 A
- UL Cross Section: AWG/26-10
- ATEX Nominal Voltage: 400 V ~
- ATEX Nominal Current: 28 A
- Minimum solid strand cross section: 0.5 mm2
- Maximum solid Strand cross section: 6 mm2
- Minimum fine Strand cross section: 1.5 mm2
- Maximum fine strand cross section: 4 mm2
- AWG Conductor Range: 26-10
- Connection Type: screw/vidali
- Insulation Stripping length: 10 mm
- Tightening torque: 0.5 Nm
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
