KODIAK CONTROLS KC301L2530/60 PRESSURE GAUGE
Quick Overview
Manufactured By: KODIAK CONTROLS
Manufacturer Part Number: KC301L2530/60
IMS Product Code: 2152925
Packaging: Sold Individually
Description:

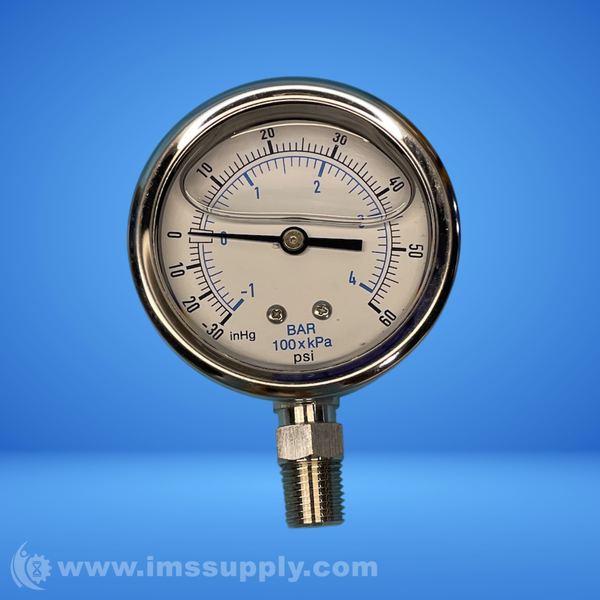

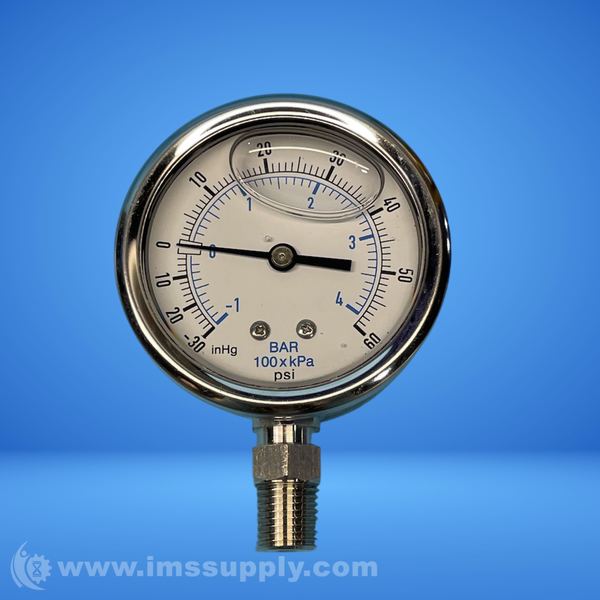

Kodiak Controls KC301L2530/60 Pressure Gauge
Pressure gauge with diaphragm seal, 2.5-inch dial, 1/4-inch NPT connection.
Specifications
- type: Pressure Gauge
- material: 304 Stainless Steel (Case)/ 316 Stainless Steel (Wetted Parts)
- range: 0 to 30 psi
- connection size: 1/4" FNPT
- connection location: Bottom
- accuracy: +/-1.60%
- operating temp. range: -30 Degrees to 200 Degrees F
- case material: 304 Stainless Steel
- lens material: Polycarbonate
- ring material: Polished Stainless Steel
- tube material: 316 Stainless Steel
- case color: Silver
- graduations: 5 psi
- dial size: 2 1/2 in
- seal connection size: 1/2 in
- series: KC301; DSM35LP
- primary pressure range: 0 to 30
- primary scale units: psi
- liquid-filled case: Yes
- gauge filled with: Glycerin
- seal fill liquid: Mineral Oil
- diaphragm seal type: Welded
- seal diaphragm material: 316 Stainless Steel
- scale type: Dual
- secondary scale units: bar
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 129 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
