KOGANEI KMP-11 MICRO VALVE
Quick Overview
Manufactured By: KOGANEI
Manufacturer Part Number: KMP-11
IMS Product Code: 2129395
Packaging: Sold Individually
Description:

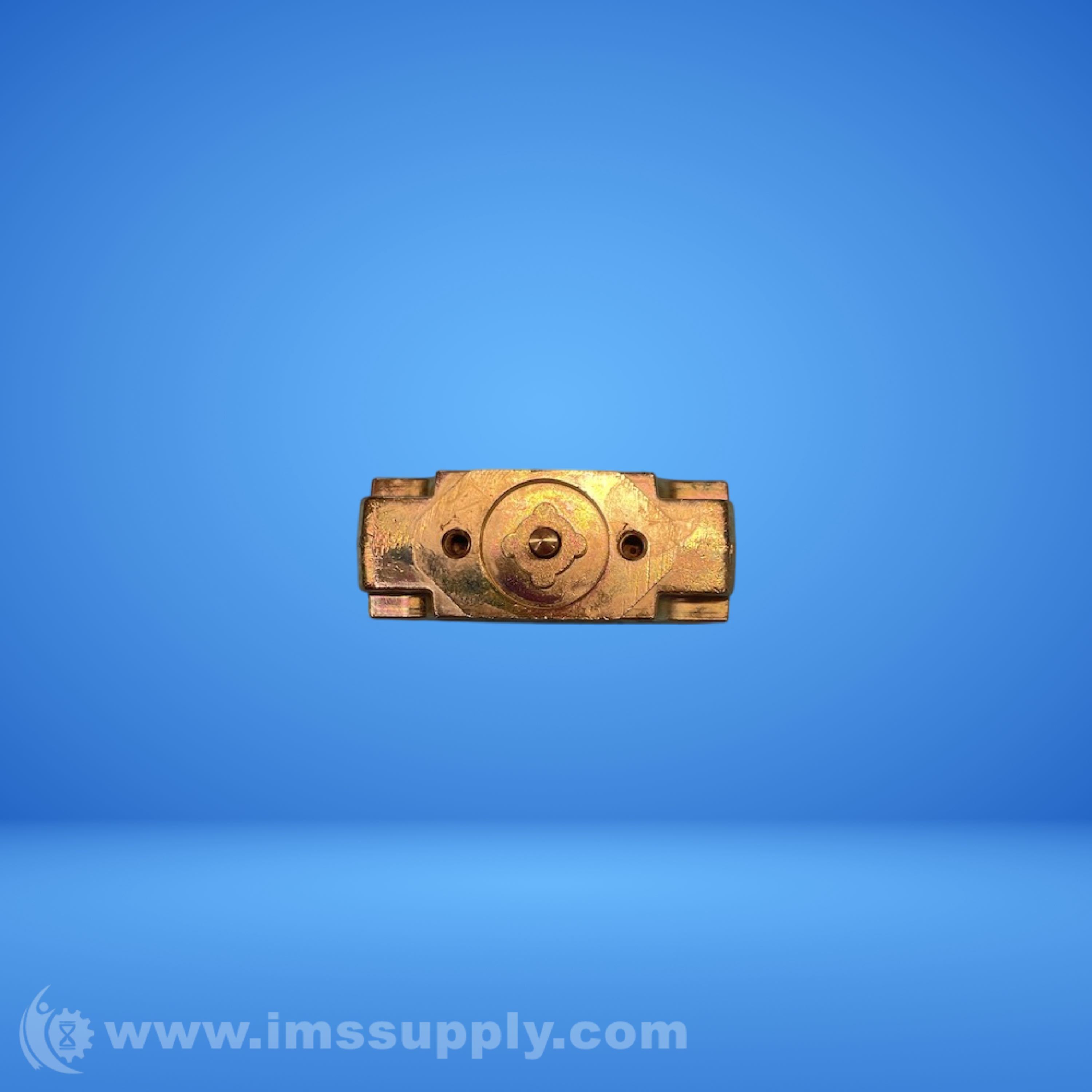

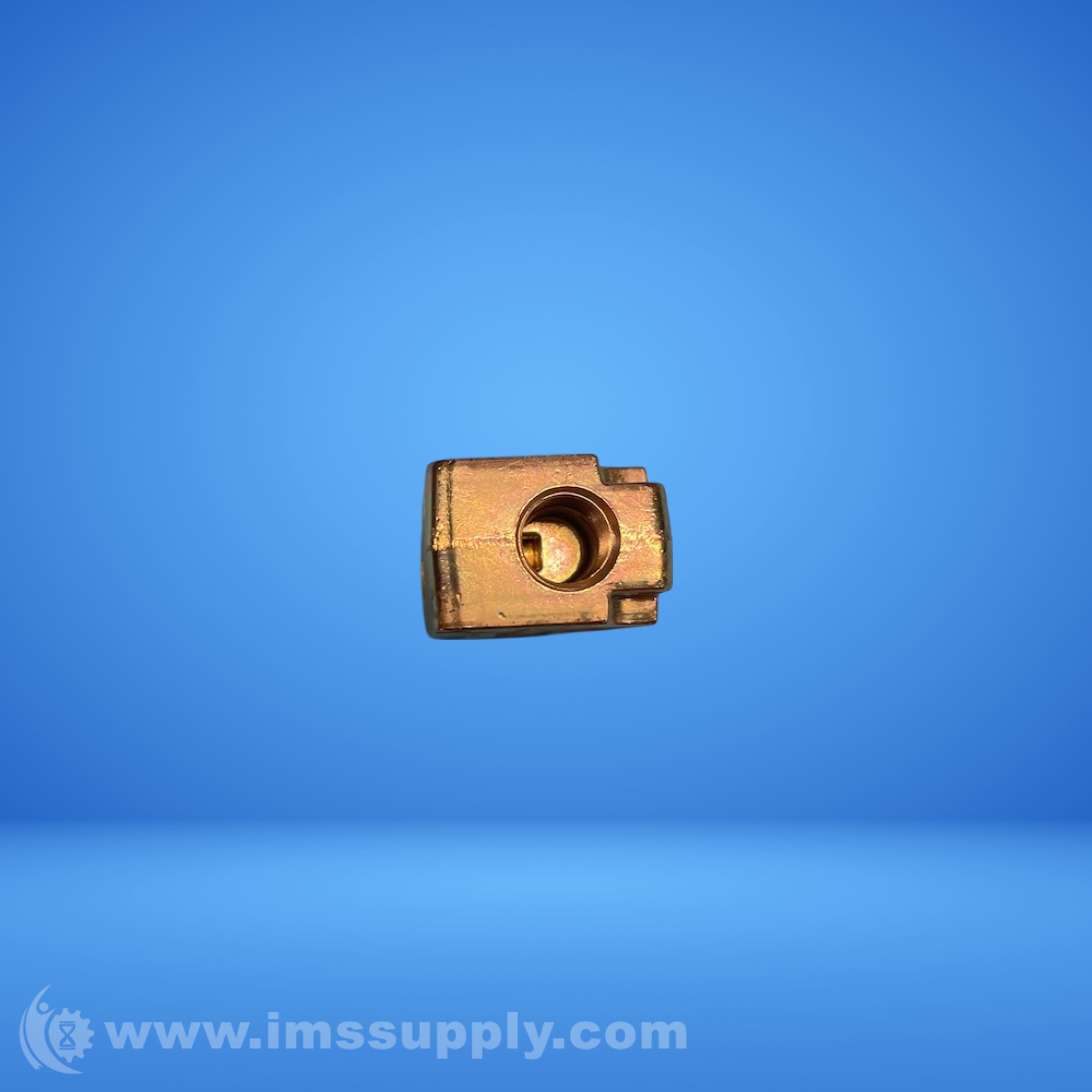

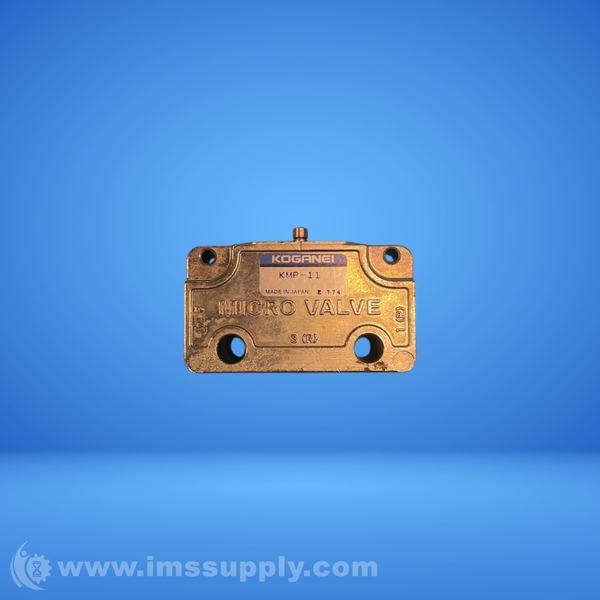

Koganei KMP-11 Micro Valve
A mechanical valve plunger type micro valve series used for air system control. It is a directional control valve that switches the main shaft by external mechanical operation.
Specifications
- fluid used: air
- usable pressure range: 0 - 0.9 MPa
- usable temperature range: 0 - 60 degrees C
- material (body): zinc die-cast
- material (roller part): stainless steel
- material (packing): synthetic rubber
- material (main shaft): stainless steel
- port number: 3 ports
- stroke: approximately 1.5 mm
- mass: 0.09 kg
- warranty pressure resistance: 1.35 MPa
- piping connection port size: Rc1/8 (1(P), 2(A)), F2 2 places (3(R))
- flow characteristics: sonic conductance C (dm3/(s·bar)) 0.36, effective cross-sectional area (Cv value) (mm2) 1.8 (0.08)
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
