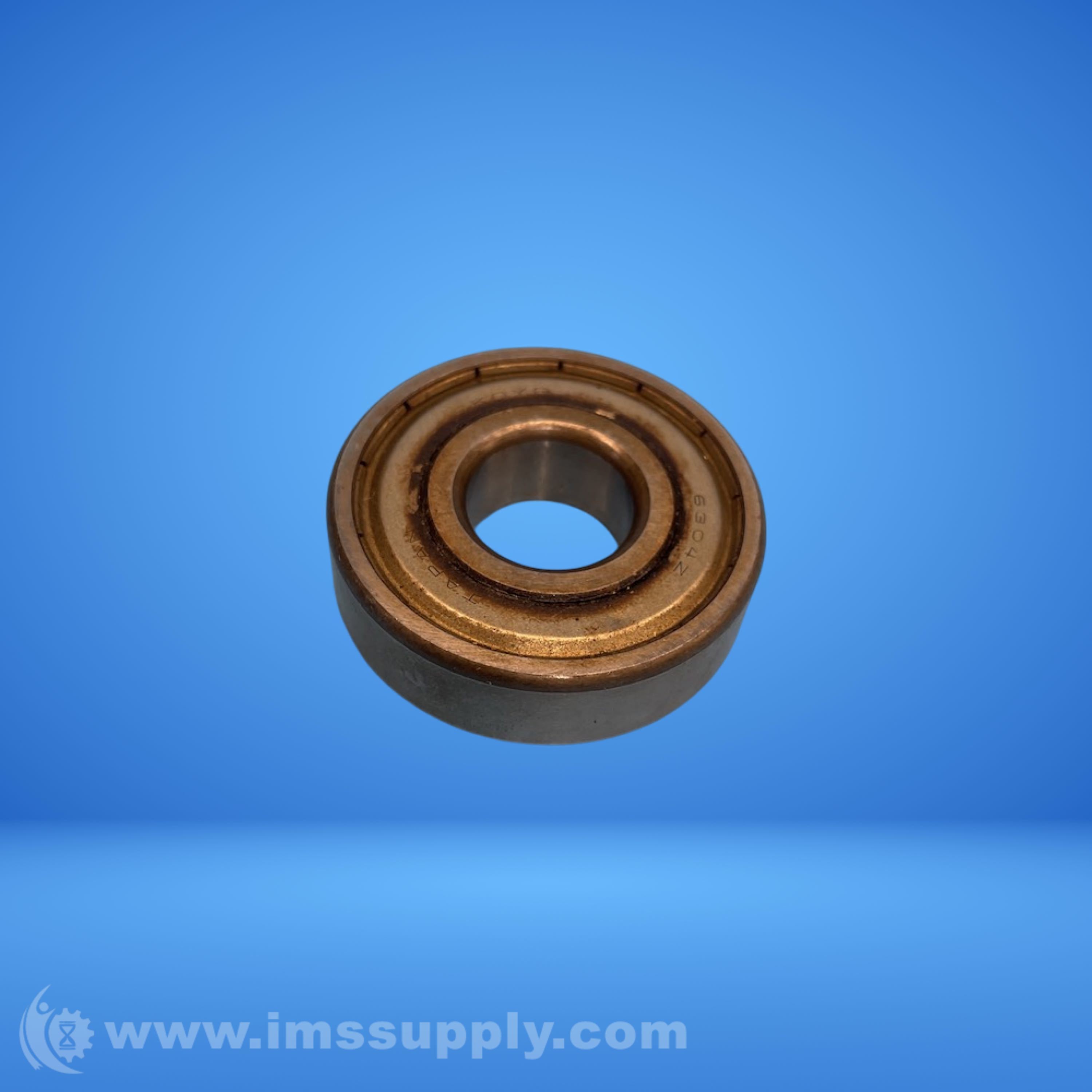

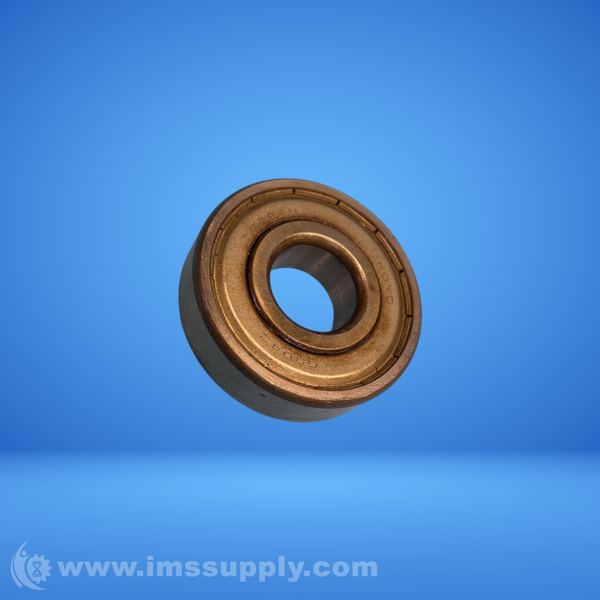

KOYO 6304Z DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: KOYO CORPORATION
Manufacturer Part Number: 6304Z
IMS Product Code: 2139311
Packaging: Sold Individually
Description:
Koyo 6304Z Deep Groove Ball Bearing
Single Shielded, Deep Groove Ball Bearing, 20 mm Inner Diameter x 52 mm Outer Diameter x 15 mm Width, Steel, Riveted Steel Cage, Round Bore, C0 Internal Clearance
Specifications
- Bearing Material: Steel
- Bearing Type: Deep Groove Ball Bearings
- Bore Diameter: 20 mm
- Cage Material: Steel
- Cage Type: Riveted
- Closure Type: Single Shield
- Dynamic Load Capacity: 19.9 kN
- Fillet Radius: 1 mm
- Internal Clearance: C0
- Lubricant: Grease
- Maximum RPM: 14000 rpm Grease/17000 rpm Oil
- Number of Rows: 1
- O.D.: 52 mm
- Operating Temperature Range: -30 to 120 deg C
- Outer Diameter Type: Straight
- Precision class: Class 0
- Series: 6300
- Static Load Capacity: 7.85 kN
- Type: Round
- Width: 15 mm
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
