KOYO 6309Z DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: KOYO
Manufacturer Part Number: 6309Z
IMS Product Code: 2140629
Packaging: Sold Individually
Description:

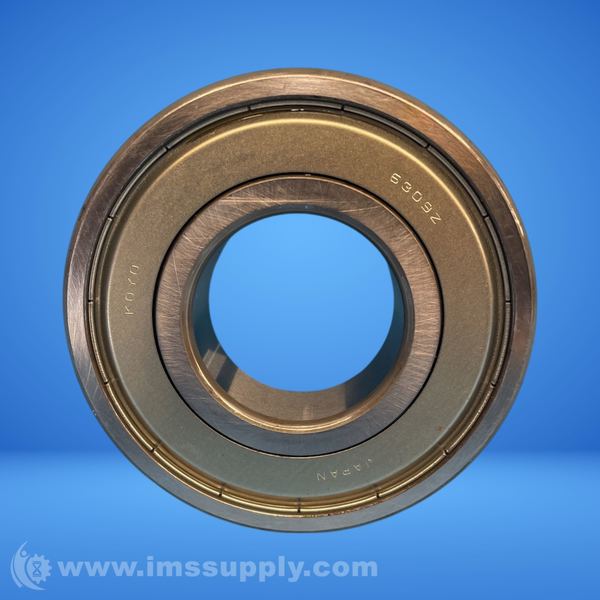

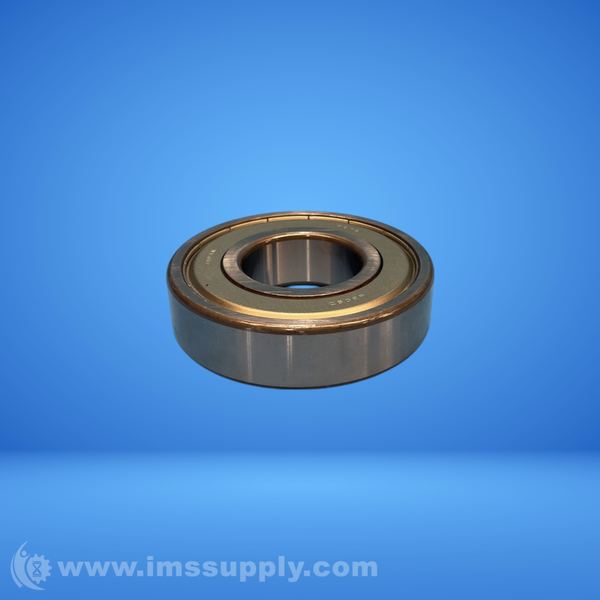

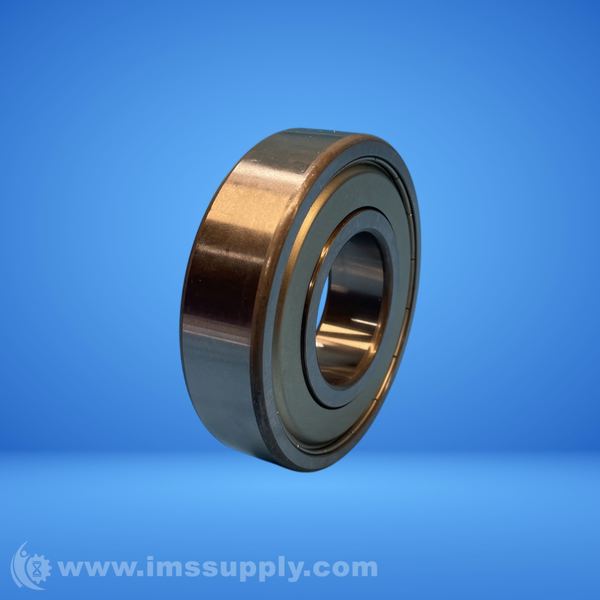

Koyo 6309Z Deep Groove Ball Bearing
Single shielded, deep groove ball bearing with 45 mm inner diameter, 100 mm outer diameter, and 25 mm width.
Specifications
- Bearing Material: Steel
- Bearing Type: Deep Groove Ball Bearing
- Bore Diameter: 45 mm
- Cage Material: Steel
- Cage Type: Riveted
- Closure Type: Single Shield
- Dynamic Load Capacity: 61.1 kN
- Fillet Radius: 1.5 mm
- Internal Clearance: C0
- Lubricant: Grease
- Maximum RPM: 6800 rpm Grease/8100 rpm Oil
- Number of Rows: 1
- O.D.: 100 mm
- Operating Temperature Range: -30 to 120 degrees C
- Outer Diameter Type: Straight
- Precision Class: Class 0
- Series: 6300
- Static Load Capacity: 29.5 kN
- Type: Round
- Width: 25 mm
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 7 hours and 59 minutes.
