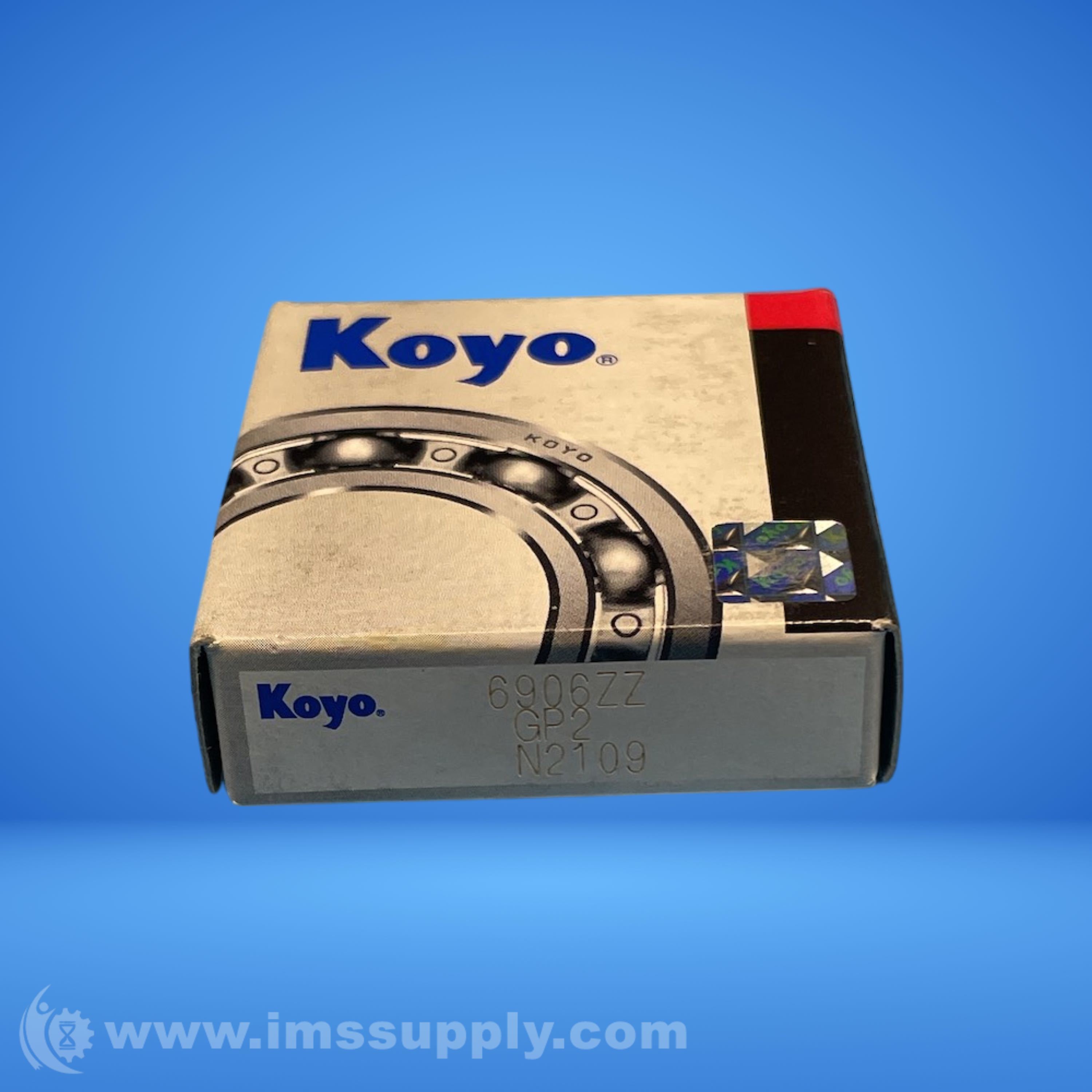

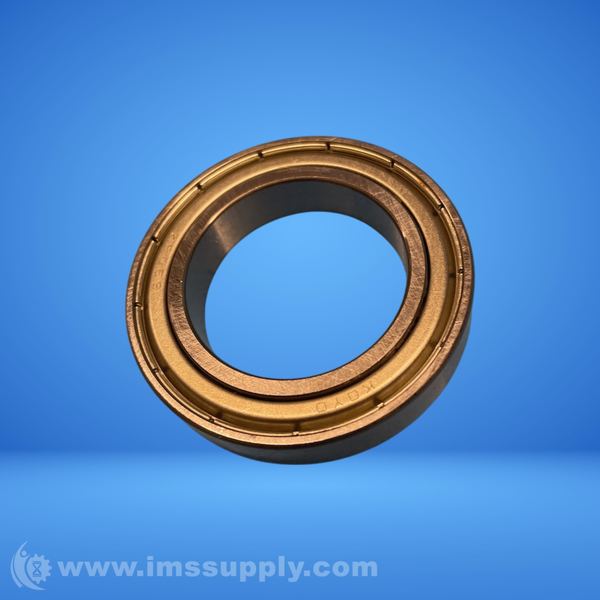

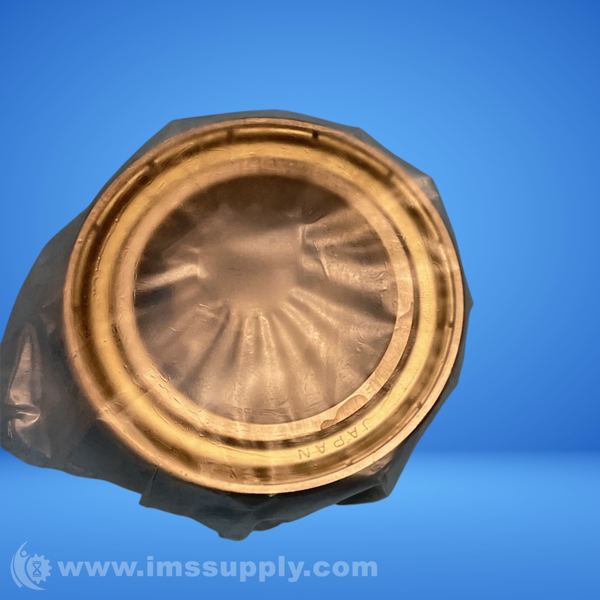

KOYO 6906ZZ DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: KOYO
Manufacturer Part Number: 6906ZZ
IMS Product Code: 2124980
Packaging: Sold Individually
Description:
Koyo 6906ZZ Deep Groove Ball Bearing
Deep groove ball bearing with double shielding, 30 mm inner diameter, 47 mm outer diameter, and 9 mm width.
Specifications
- d: 30 mm
- D: 47 mm
- B: 9 mm
- r(min.): 0.3 mm
- Basic load ratings : Cr: 9.05 kN
- Basic load ratings : C0r: 5.00 kN
- Fatigue load limit : Cu: 0.260 kN
- factor : f0: 15.8
- Limiting speeds(Grease lub.): 14000 min-1
- Mounting dimensions: da(min.) = 32 mm, da(max.) = 33 mm, Da(max.) = 45 mm, ra(max.) = 0.3 mm
- Mass: 0.045 kg
- Bore Type: Straight
- Closure Type: Double Shielded
- Snap Ring Included: Without Snap Ring
- Ball Material: Steel
- Cage Type: Metal
- Contact Angle: 0
- Locking Device: No Locking Device
- Lubricant: Mul-Temp SRL
- Material: Steel
- No. in Set: Single Bearing
- O.D. Type: Straight
- Origin: Single Row Radial
- Precision Level: Standard (ABEC 1)
- Rows of Balls: Single
- Seal Material: Metal
- Seal Type: Non-Contact Seals
- Snap Ring: No Snap Ring
- Temperature Range [MAX]: 230 ?F
- Temperature Range [MIN]: -22 ?F
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
