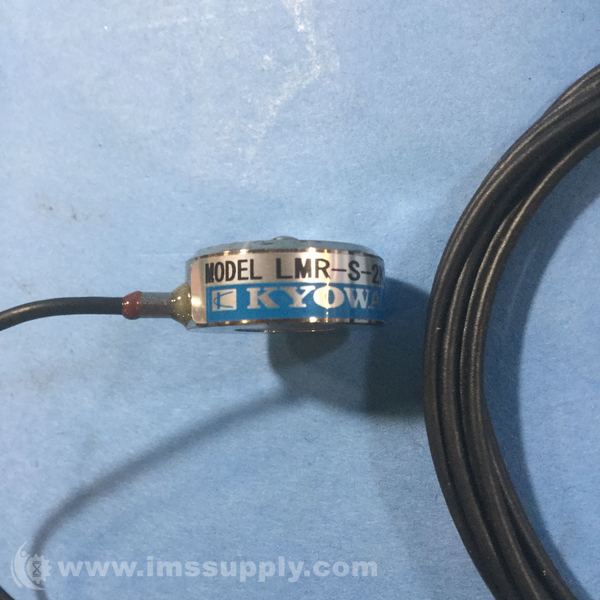

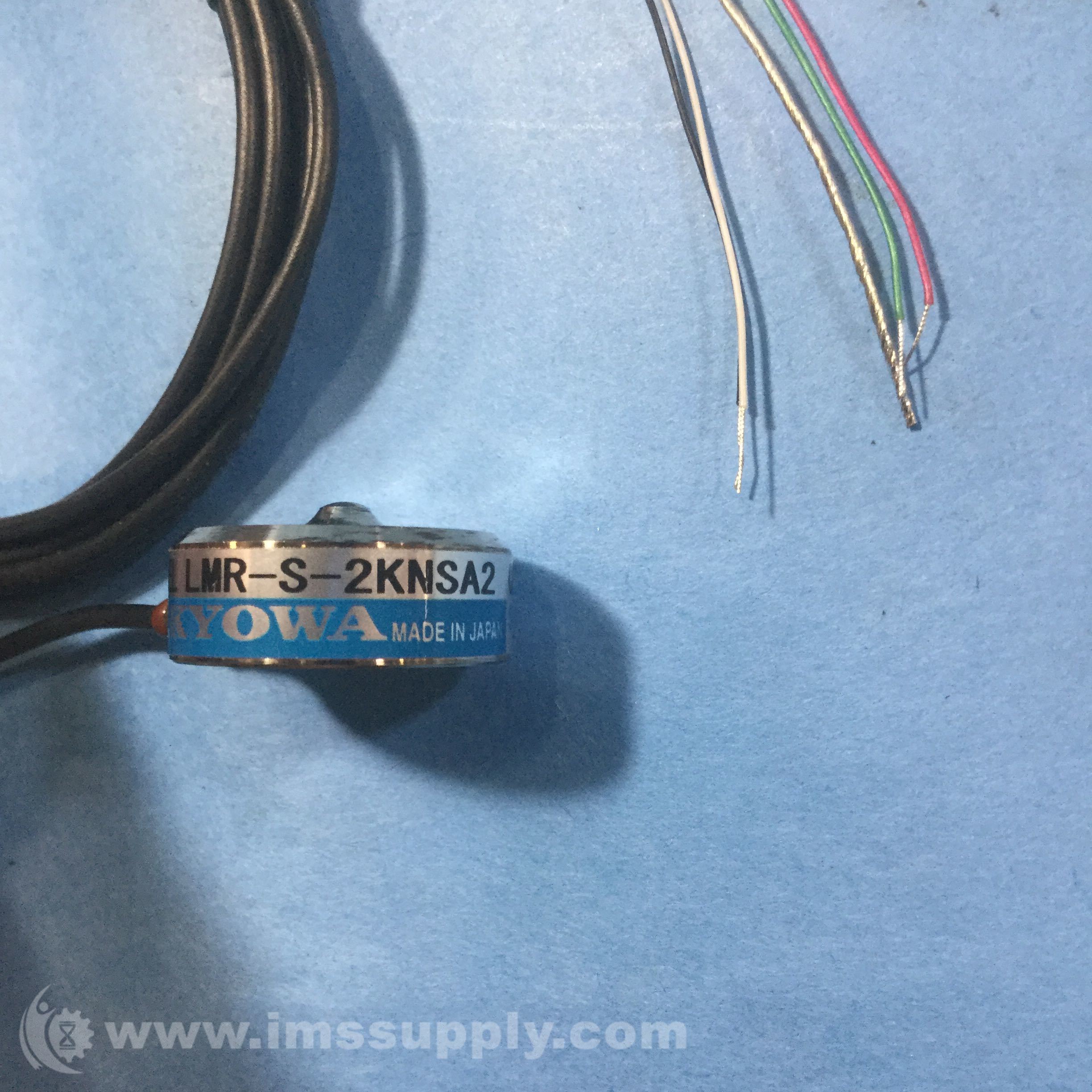

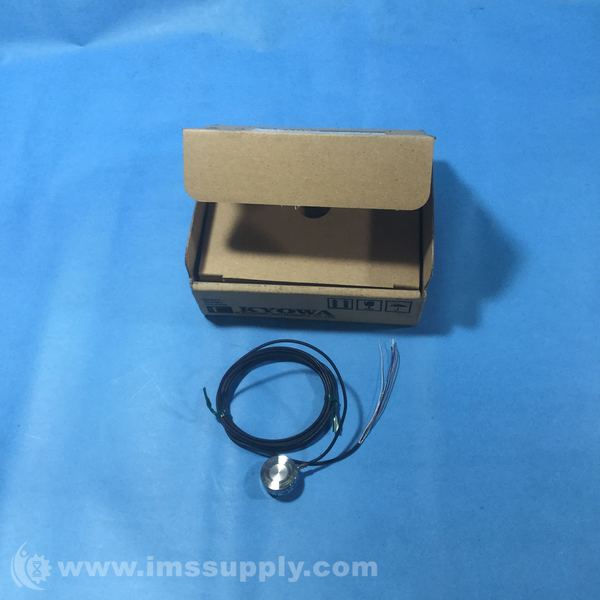

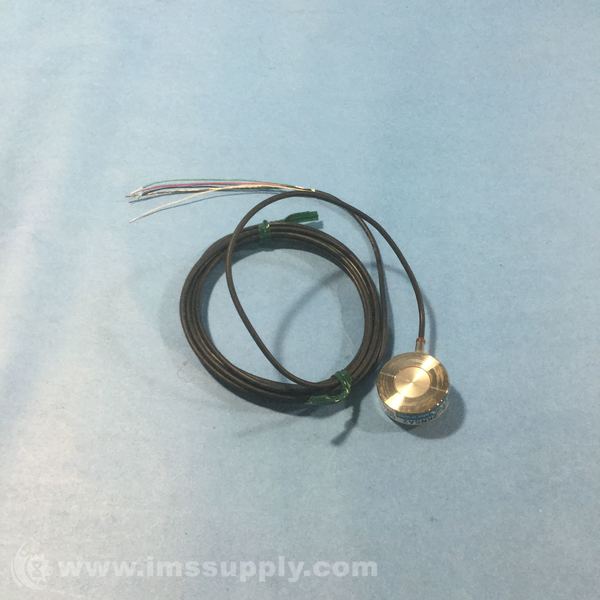

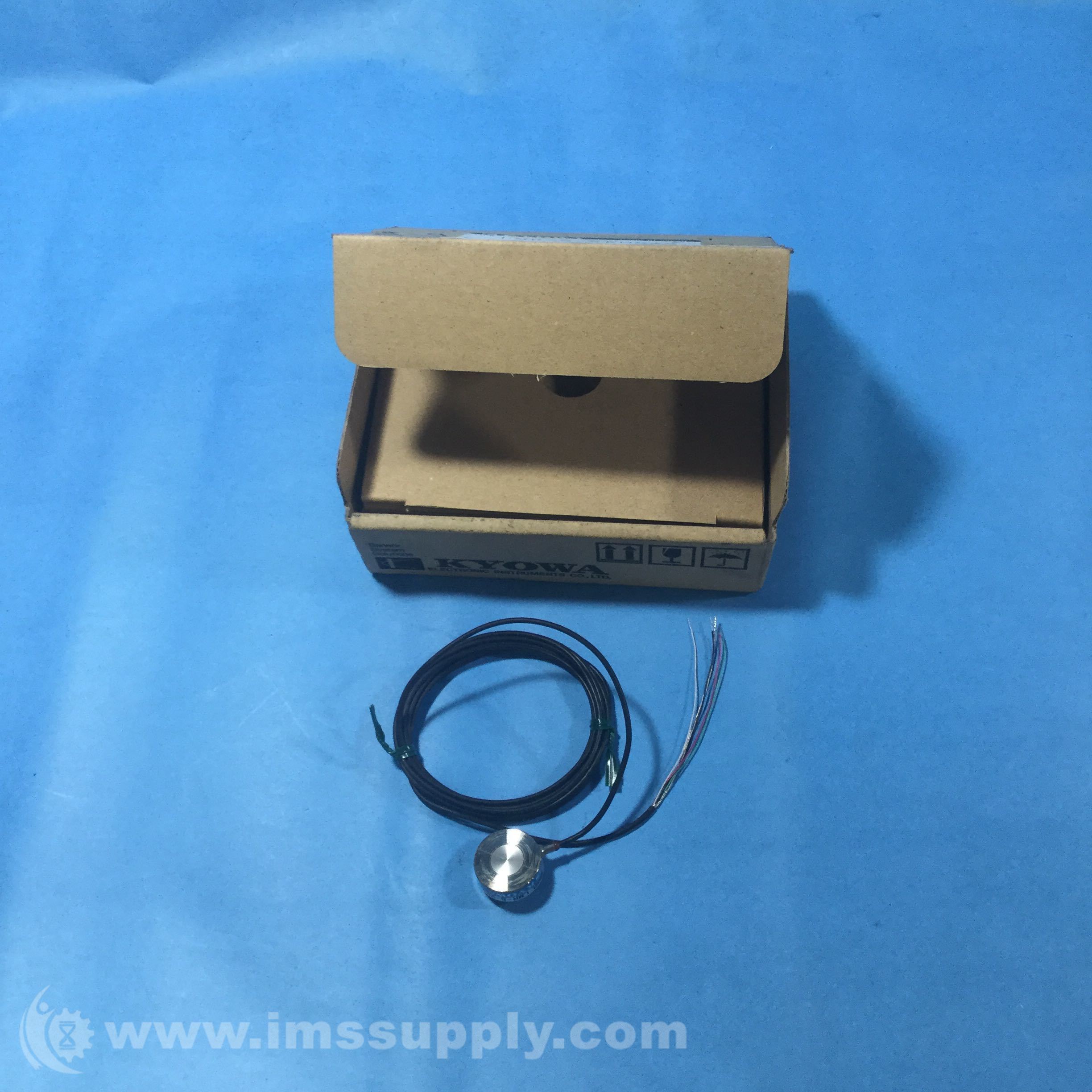

KYOWA LMR-S-2KNSA2 COMPRESSION LOAD CELL

Call For Quote

Quick Overview

Manufactured By: KYOWA
Manufacturer Part Number: LMR-S-2KNSA2
IMS Product Code: 1769280
Packaging: Sold Individually

Description:

Kyowa LMR-S-2KNSA2 Compression Load Cell

Specifications:

  • Rated Capacity: 2 kN
  • Nonlinearity: Within ±1% RO
  • Hysteresis: Within ±1% RO
  • Rated Output: 1 mV/V (2000 ×10-6 strain) or more
  • Safe Temperature: -10 to 60 ºC
  • Compensated Temperature: 0 to 50 ºC
  • Temperature Effect on Zero: Within ±0.05% RO/ºC
  • Temperature Effect on Output: Within ±0.05%/ºC
  • Safe Excitation: 7 V AC or DC
  • Recommended Excitation: 1 to 2 V AC or DC
  • Input Resistance: 350 Ω ±2%
  • Output Resistance: 350 Ω ±2%
  • Cable: 4-conductor (0.035 mm2) vinyl shielded cable, 1.7 mm diameter by 2 m long, bared at the tip (Shield wire is not connected to the case.)
  • Safe Overloads: 120%
  • Natural Frequencies:  Approx. 50 kHz
  • Materials: Stainless steel
