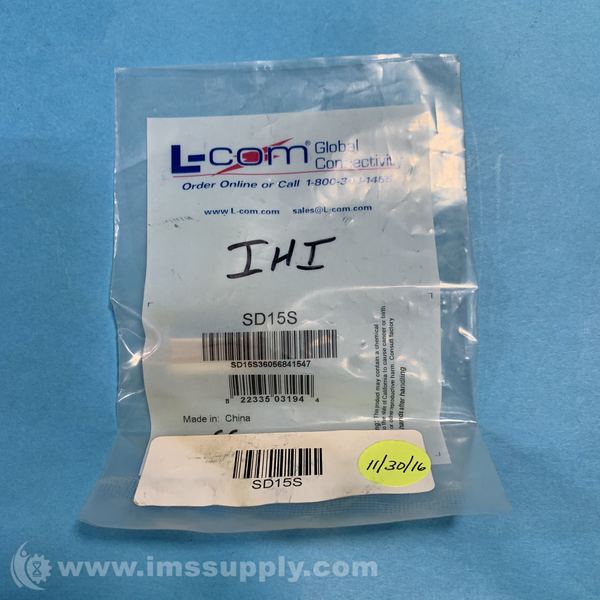

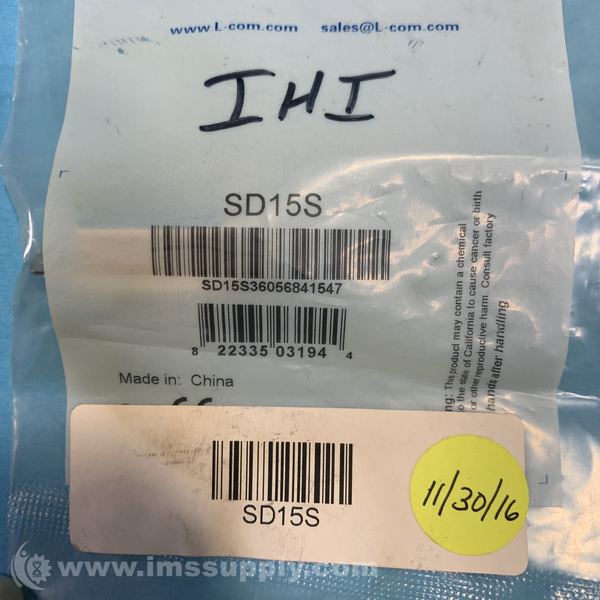

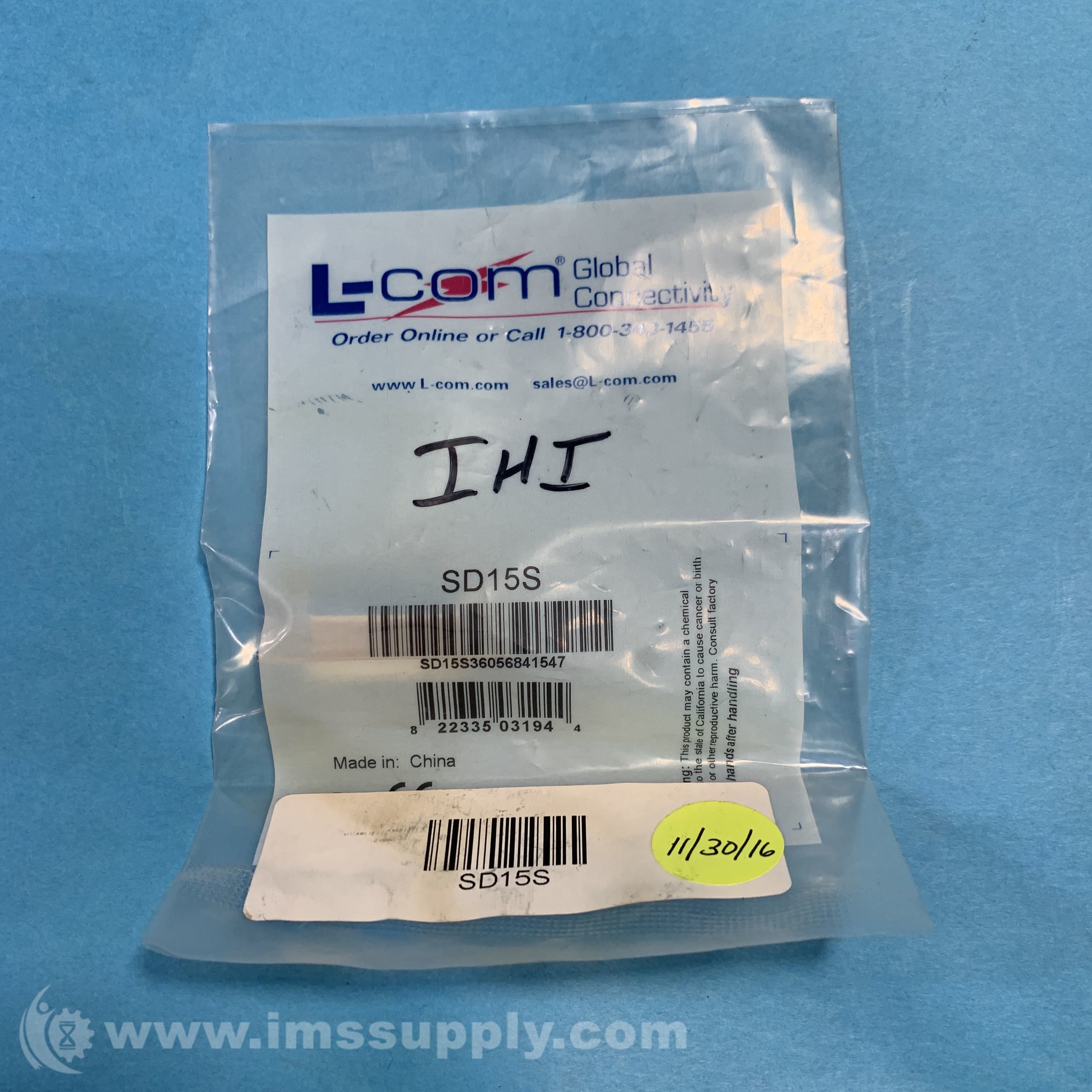

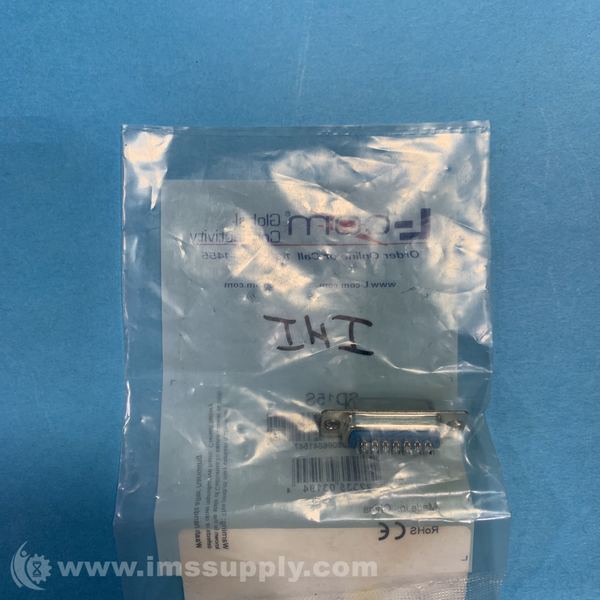

L-COM SD15S DB15 FEMALE SOLDER CUP CONNECTOR
Quick Overview
Manufactured By: L-COM
Manufacturer Part Number: SD15S
IMS Product Code: 1903342
Packaging: Sold Individually
Description:
L-Com SD15S DB15 Female Solder Cup Connector
DB15 female solder cup connector with gold flash contact plating and UL94V-0 rated insulator.
Specifications
- Number of Positions: 15
- Maximum Wire Size: 20 AWG
- Contact Plating: Gold Flash
- Insulator Material: UL94V-0 Rated
- Connector Shell: Steel
- Contacts: Copper Alloy
- Front Shell: Nickel Plated
- Back Shell: Tin Plated
- Solder Cups: Tin Plated
- Dielectric Withstanding Voltage: 1000 Vac Rms
- Insulation Resistance: 5000 Mohms @ 500Vdc
- Operating Temperature: -55 To +105 degrees C
- ROHS Compliant: Yes
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 2 In Stock
Ships today if ordered in the next 13 hours and 23 minutes.
