LAMBDA MYB-1206-33 NOISE FILTER
Quick Overview
Manufactured By: LAMBDA
Manufacturer Part Number: MYB-1206-33
IMS Product Code: 1957530
Packaging: Sold Individually
Description:

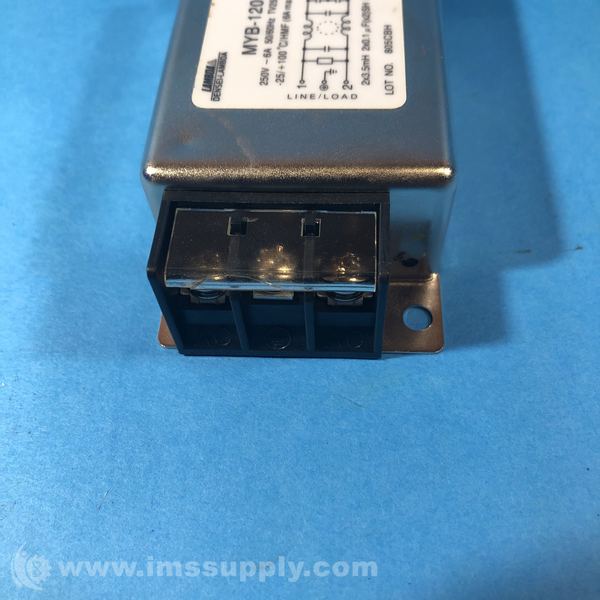

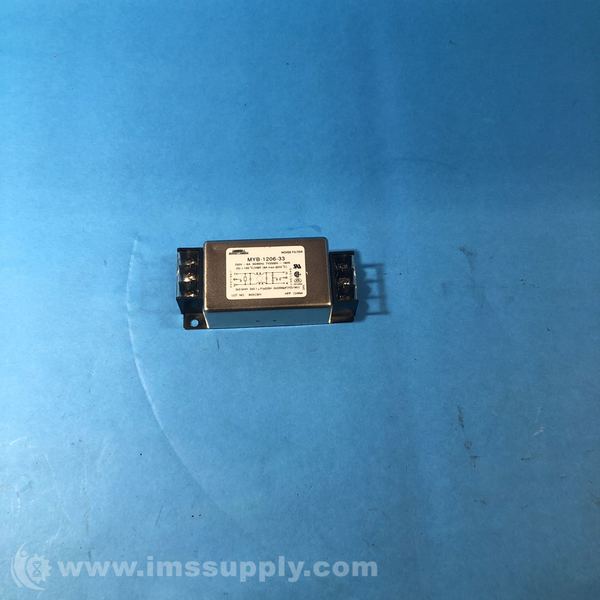

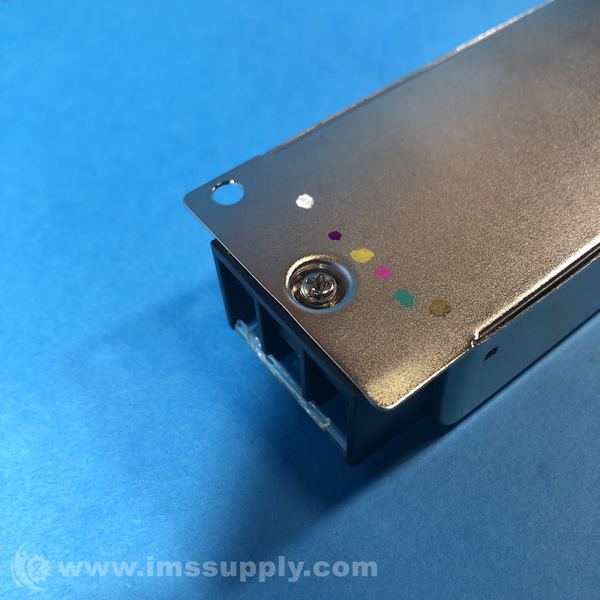

Lambda MYB-1206-33 Noise Filter
A compact, high-performance EMI/RFI filter for AC and DC power lines with a 6 A/250 V rating.
Specifications
- Rated Voltage (AC/DC): 250 V
- Rated Current (AC/DC): 6 A
- Test Voltage (Terminal to Case, 1 min): 2500 V AC (25 °C, 70% RH)
- Isolation Resistance: 100 MO minimum (500 VDC, 25 °C, 70% RH)
- Leakage Current (125 V, 60 Hz): 0.25 mA maximum
- Leakage Current (250 V, 60 Hz): 0.5 mA maximum
- DC Resistance: 0.1 O maximum
- Temperature Rise: 30 °C maximum
- Operating Temperature Range: -25 °C to +85 °C
- Operating Humidity: 30% to 90% RH (No dew condensation)
- Storage Temperature Range: -30 °C to +85 °C
- Storage Humidity: 10% to 95% RH (No dew condensation)
- Mounting Style: Chassis Mount
- Frequency: 50/60 Hz
- Phase: Single Phase
- Stage: Single Stage
- Country/Region of Manufacture: Japan
- Weight (Typical): 210 g
- Series: MYB
- RoHs Status: Lead free/RoHS Compliant
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships on Monday, September 15, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
