LAPP KABEL 10191000 EPIC H-BE 6 BS FEMALE CONNECTOR INSERT
Quick Overview
Manufactured By: LAPP KABEL
Manufacturer Part Number: 10191000
IMS Product Code: 1834593
Packaging: Sold Individually
Description:

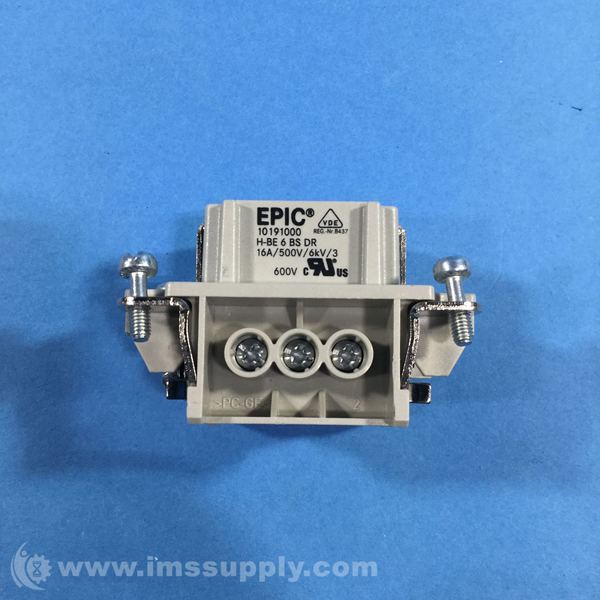

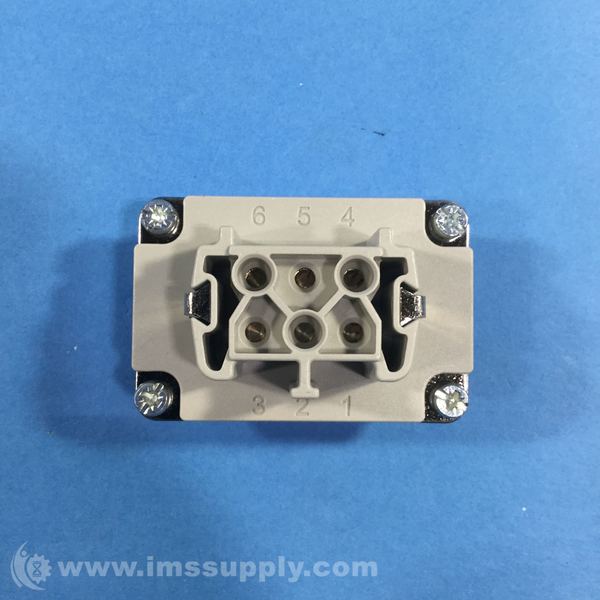

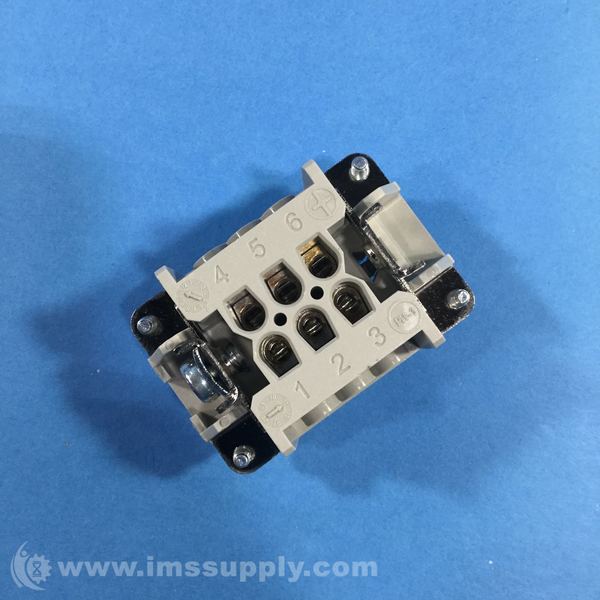

Lapp Kabel 10191000 EPIC H-BE 6 BS Female Connector Insert
6-pin female connector insert with screw terminal connections, rated for 16A/500V applications. Made of polycarbonate with silver-plated copper alloy contacts.
Specifications
- Number of contacts: 6 + PE
- Rated current: 16 A
- Rated voltage: 500 V
- Contact resistance: < 2 mOhm
- Material: Polycarbonate
- Contact material: Copper alloy
- Contact surface finish: Silver-plated
- Termination method: Screw termination
- Wire size range: 0.5 - 2.5 mm²
- Temperature range: -40°C to +100°C
- Pollution degree: 3
- Flammability: UL94 V-0
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
