LEESON 108051.00 DC MOTOR
Quick Overview
Manufactured By: LEESON ELECTRIC CO
Manufacturer Part Number: 108051.00
IMS Product Code: 926510
Packaging: Sold Individually
Description:

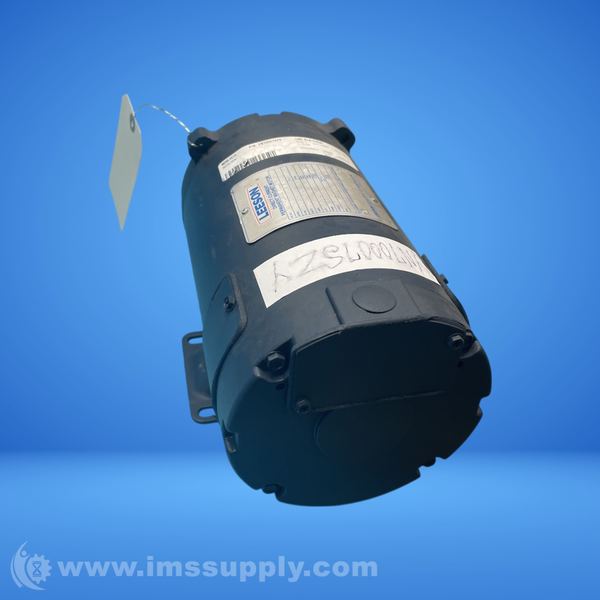

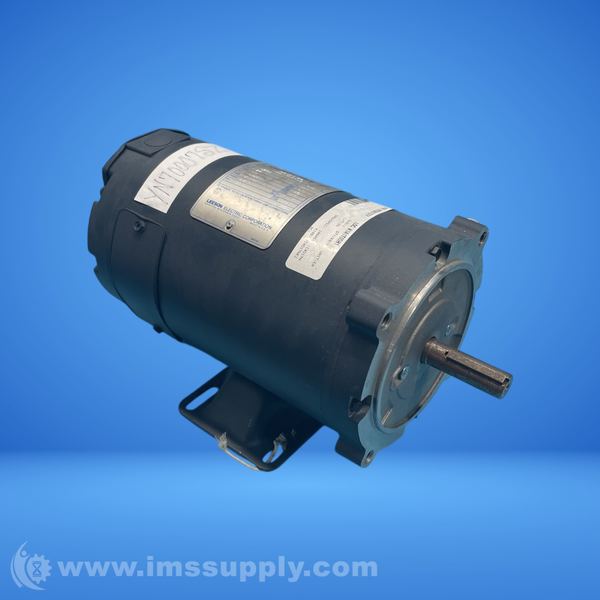

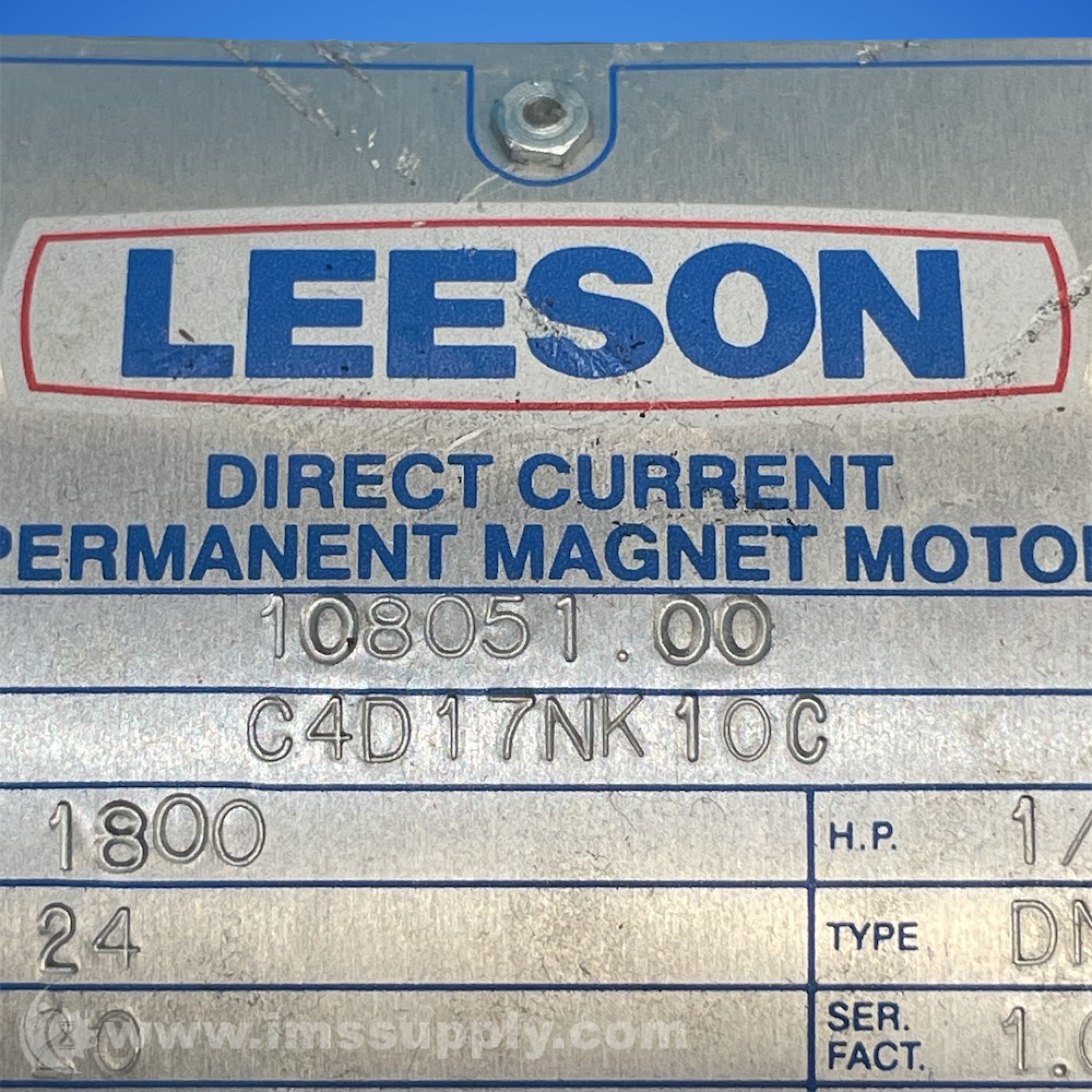

Leeson 108051.00 DC Motor
Permanent Magnet DC Motor, 1/2 HP, 24V DC, 1800 RPM, TENV Enclosure, 56C Frame
Specifications
- Output HP: 0.50 Hp
- Voltage: 24 V
- Speed: 1800 rpm
- Service Factor: 1.0
- Frame: S56C
- Enclosure: Totally Enclosed Non Ventilated
- Thermal Protection: No Protection
- Efficiency: 77 %
- Ambient Temperature: 40 °C
- Current: 20.0 A
- Duty: Continuous
- Insulation Class: F
- Drive End Bearing Size: 6203
- Opp Drive End Bearing Size: 6203
- Rotation: Reversible
- Mounting: Rigid C base
- Overall Length: 11.77 in
- Frame Length: 5.47 in
- Shaft Diameter: 0.625 in
- Shaft Extension: 2.06 in
- Torque: 17.5 LB-IN
- Weight: 32.00 LB
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
