LEESON 114159.00 BRAKE MOTOR
Quick Overview
Manufactured By: LEESON ELECTRIC CO
Manufacturer Part Number: 114159-00
IMS Product Code: 2172865
Packaging: Sold Individually
Description:

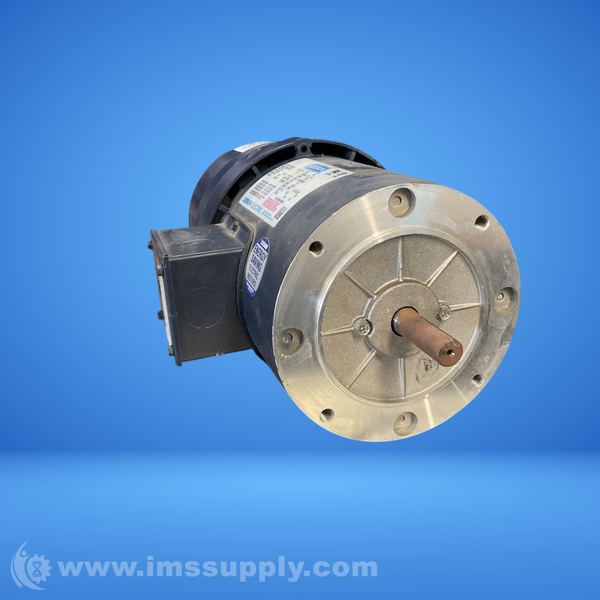

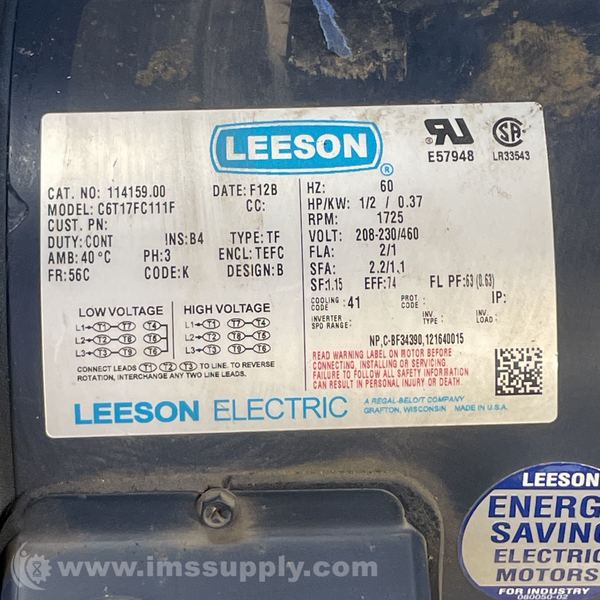

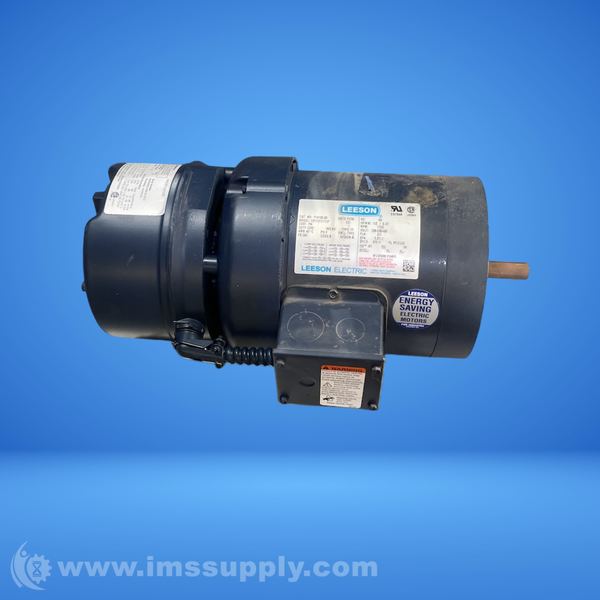

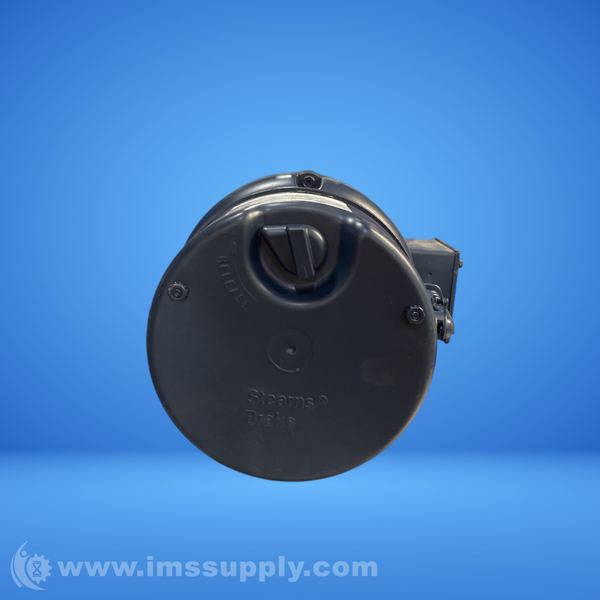

Leeson 114159.00 Brake Motor
0.50 HP, 1725 RPM three-phase brake motor with 56C NEMA frame and Totally Enclosed Fan Cooled (TEFC) enclosure.
Specifications
- Horsepower: 1/2 HP
- Voltage: 208-230/460 Volts
- Phase: 3
- Frequency: 60 Hz
- Speed: 1725 RPM
- Current: 1.0 Amps
- Enclosure: TEFC
- Frame Size: 56C
- Motor Orientation: Horizontal
- Number of Poles: 4
- Mounting Type: Round
- Frame Material: Rolled Steel
- Overall Length: 15.31 in
- Service Factor: 1.15
- Efficiency @ 100% Load: 74%
- Duty Rating: Continuous
- Starting Method: Across The Line
- Design Code: B
- KVA Code: K
- Shaft Diameter: 0.625 in
- Insulation Class: B
- Ambient Temperature: 40 degrees C
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 14 hours and 4 minutes.
