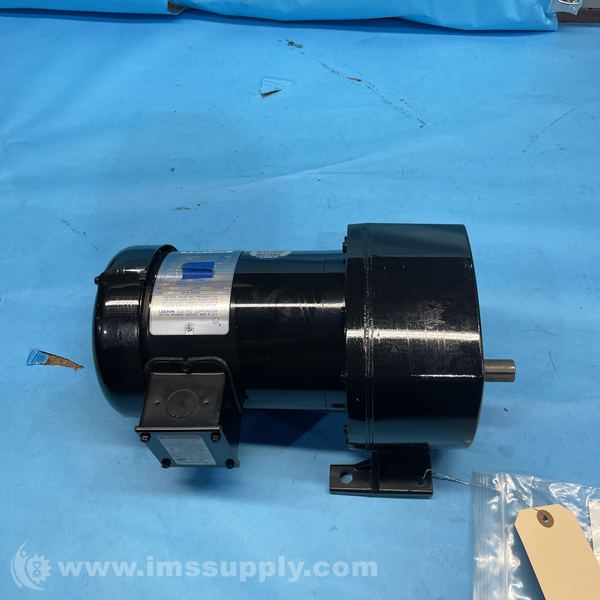

LEESON C4T17FZ52B AC PARALLEL GEAR MOTOR
Quick Overview
Manufactured By: LEESON ELECTRIC CO
Manufacturer Part Number: C4T17FZ52B
IMS Product Code: 2137265
Packaging: Sold Individually
Description:
Leeson C4T17FZ52B AC Parallel Gear Motor
AC Parallel Gear Motor with 13:1 ratio, 1/2 hp, 208-230/460 V, 3-phase, TEFC enclosure
Specifications
- Frame Size: 48Y
- Full Load Current: 2.00 / 1.00 A
- Gear Ratio: 13 :1
- Input Horsepower: 1/2 hp
- Insulation Class: F
- Motor Phase: 3 ph
- Motor Supply Voltage: 208-230/460 V
- Mounting Type: Special
- NEMA Frame: 48Y
- Output RPM: 133.0 rpm
- Overall Length C Dimension: 13.42 in
- Shaft Diameter: 0.7500 in
- Shaft Type: Parallel
- Service Factor: 1.15
- Thermal Protection: None
- Weight: 31.00 lbs
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 14 hours and 38 minutes.
