LEESON 107026.00 PARALLEL SHAFT GEARMOTOR
Quick Overview
Manufactured By: LEESON
Manufacturer Part Number: 107026.00
IMS Product Code: 2146914
Packaging: Sold Individually
Description:

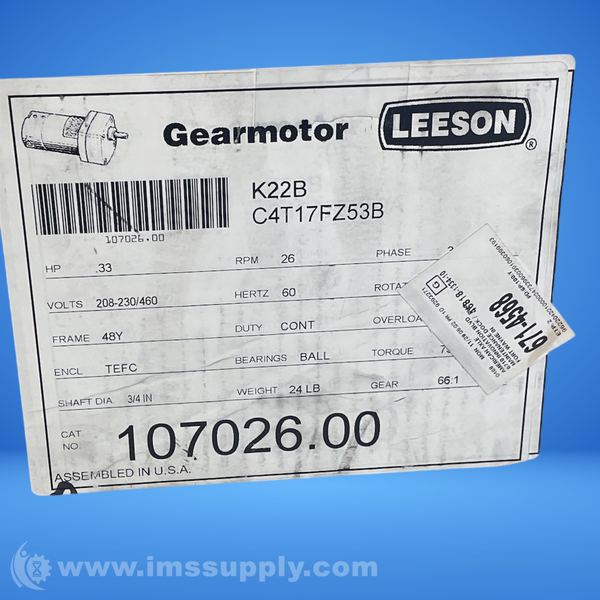

LEESON 107026.00 Parallel Shaft Gearmotor
Parallel shaft gearmotor with 0.33 HP output, 26 RPM, 208-230/460 V, 3-phase, 60 Hz, TEFC enclosure, 48Y frame.
Specifications
- Phase: 3
- Output HP: 0.33 Hp
- Speed: 26 rpm
- Service Factor: 1.15
- Frame: 48Y
- Enclosure: Totally Enclosed Fan Cooled
- Frequency: 60 Hz
- Current: 1.6/0.80 A
- Duty: Continuous
- Insulation Class: F
- KVA Code: L
- Drive End Bearing Size: 6203
- Opp Drive End Bearing Size: 6203
- Rotation: Reversible
- Mounting: Special
- Shaft Type: Parallel
- Overall Length: 12.92 in
- Frame Length: 5.00 in
- Shaft Diameter: 0.750 in
- Shaft Extension: 1.5 in
- Torque: 752 LB-IN
- Weight: 24.00 LB
- Country of Origin: United States of America
- Bearing Type: Ball
- Dimensions: 12.92 in L x 8.13 in W x 7.69 in H
- Enclosure Type: Totally Enclosed Fan Cooled (TEFC)
- Frequency Rating: 60/50 Hz
- Full Load Amperage: 1.6/0.8 A
- Gear Ratio: 66:1
- Horsepower: 0.33 hp
- Housing Material: Die Cast Aluminum
- Maximum Speed: 26 rpm
- Motor Type: Right-Angle Capacitor Start
- Overhung Load: 650 lb
- Temperature Rating: 40 deg C Ambient
- Torque Rating: 752 in-lb
- Type: Parallel Shaft Continuous Duty
- Voltage Rating: 208 to 230/460 VAC
- Series: P1100
