LEESON 111310.00 2 HP ELECTRIC MOTOR
Quick Overview
Manufactured By: LEESON
Manufacturer Part Number: 111310.00
IMS Product Code: 2124186
Packaging: Sold Individually
Description:

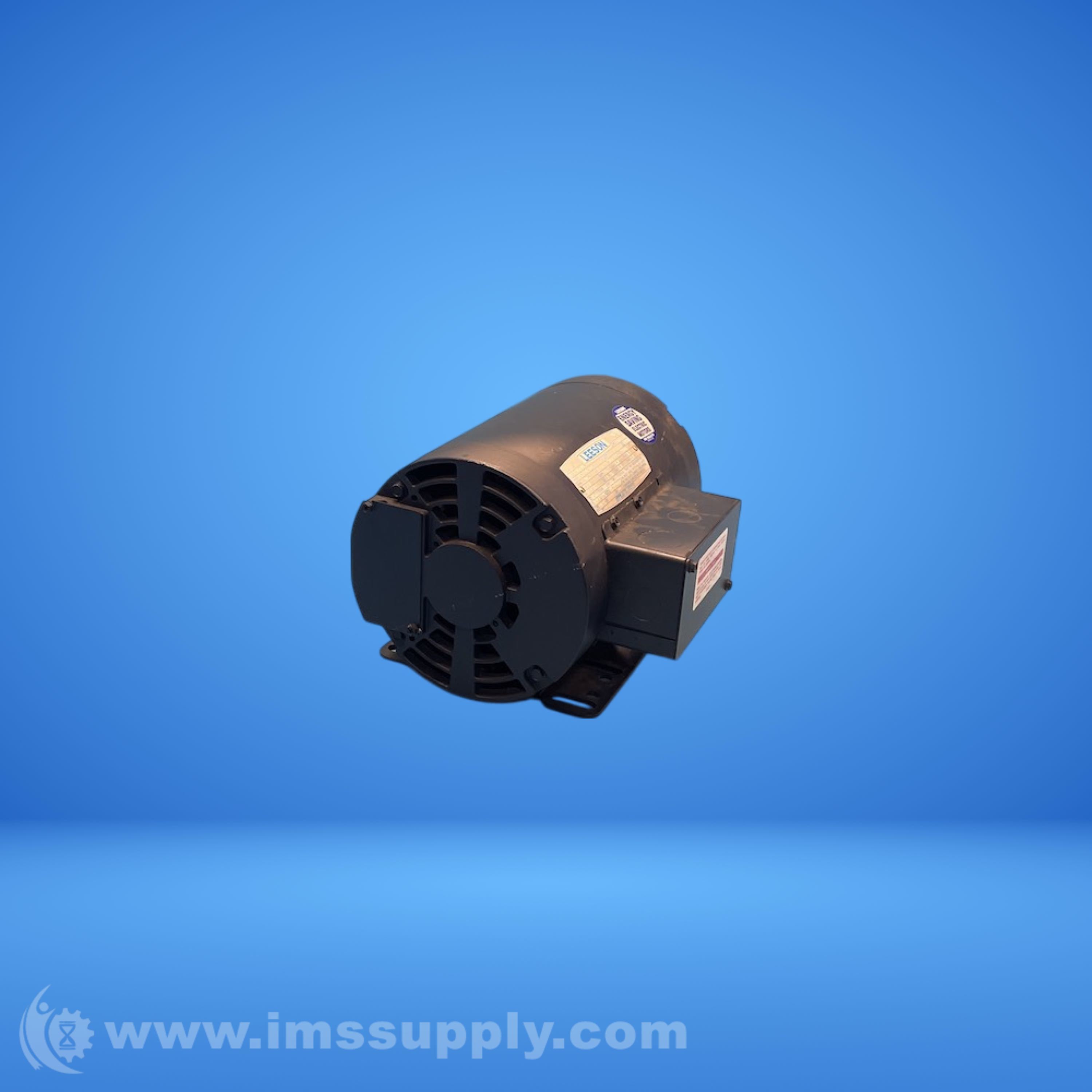

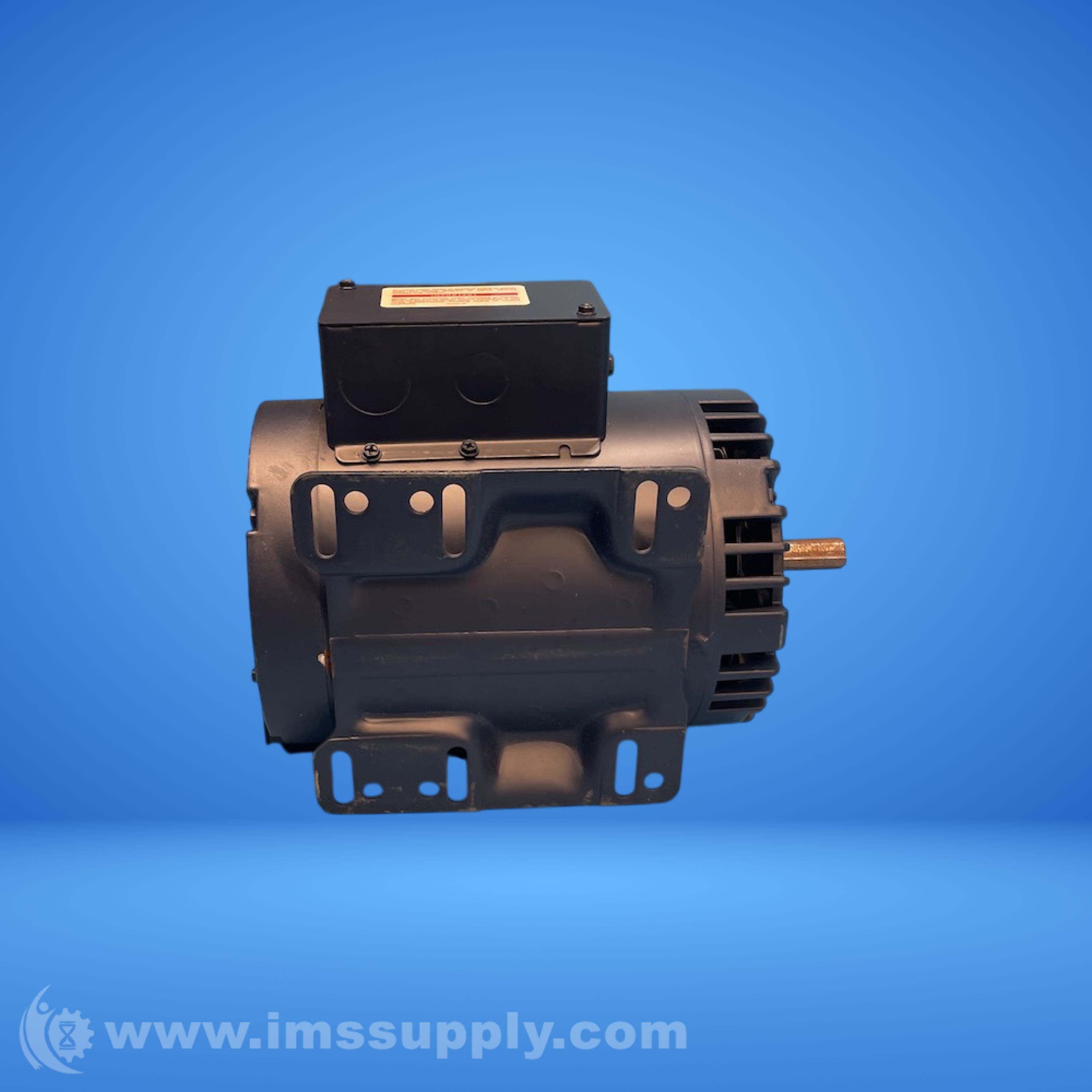

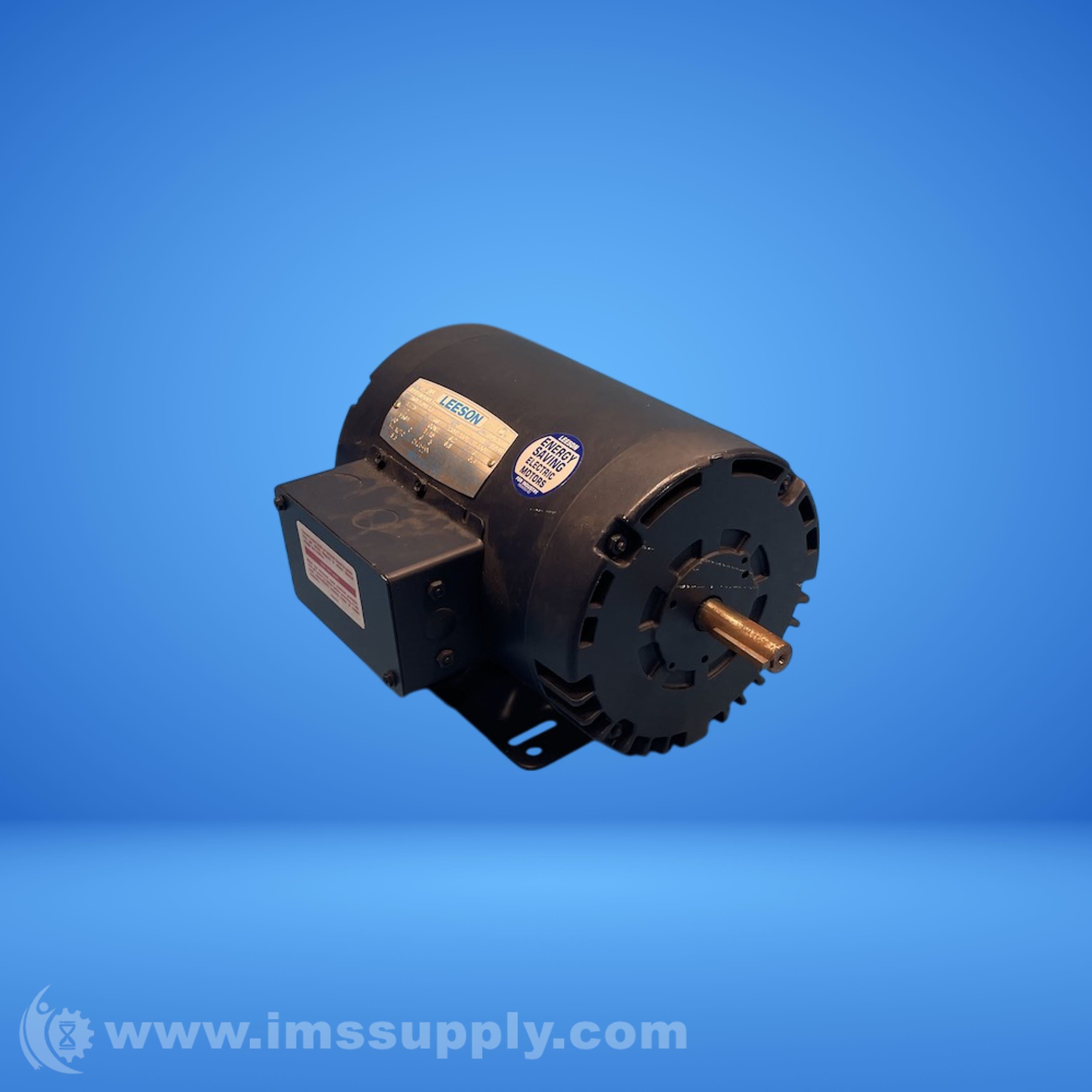

LEESON 111310.00 2 HP Electric Motor
Three-phase general purpose motor with drip-proof enclosure, 2 HP output at 1800 RPM, 208-230/460V voltage rating, rigid base mounting, and 56H NEMA frame size.

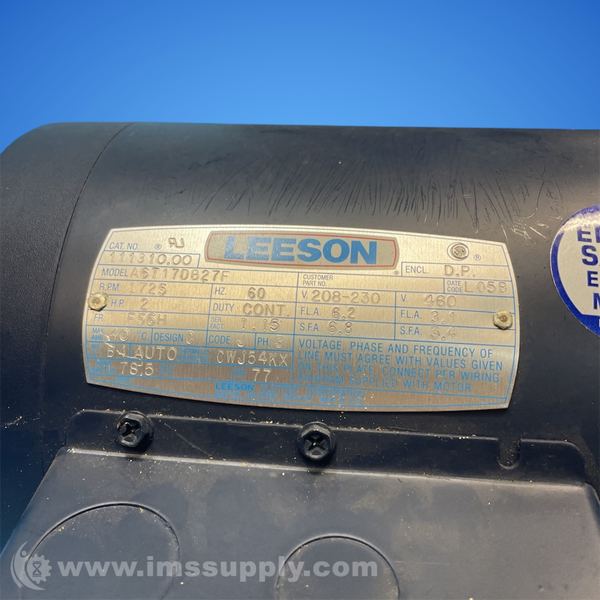

Specifications
- type: General Purpose
- horsepower: 2 hp
- speed: 1,800 RPM
- RPM: 1,800 RPM
- number of poles: 4
- phase: 3
- NEMA frame: 56H
- nominal voltage: 208 VAC, 240 VAC, 480 VAC
- enclosure: Drip Proof
- mounting: Foot Mount, Rigid
- current rating: 6.2 A
- service factor: 1.15
- composition: Steel
- bearing type: Ball
- length: 11.4 "
- approvals: CSA, UL
- volts: 208-230/460
- F.L. amps: 6.2/3.1
- S. F. amps: 6.8/3.4
- hertz: 60
- HP: 2
- duty: CONTINUOUS
- design: C
- code: J
- insul class: B
- protection: AUTOMATIC
- therm.prot.: CWJ54KX
- eff 100%: 78.5
- PF: 77
- UL: Yes
- CSA: Yes
- bearing ope: 6203 CC
- bearing pe: 6203
- motor wt.: 39 LB
- lubrication: POLYREX EM
- shaft dia.: 5/8 IN
- inertia (WK˛): .11 LB-FT^2
- torque full load: 6
- torque break down: 21.35
- torque pull up: 17
- torque locked rotor: 17.2
- CURRENT (amps) full load: 3.1
- CURRENT (amps) locked rotor: 20.8
- efficiency (%) 75% load: 79.3
- efficiency (%) 50% load: 75.9
- efficiency (%) 25% load: 68.2
- powerfactor full load: 0
- powerfactor 75% load: 64.9
- powerfactor 50% load: 52.9
- powerfactor 25% load: 33.4
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
