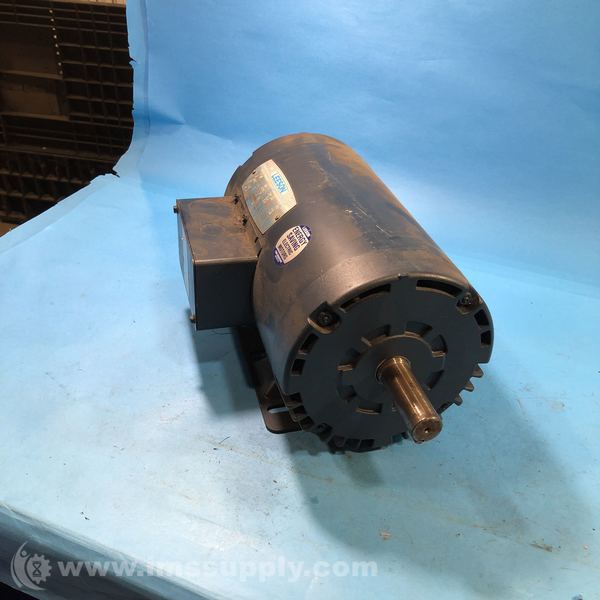

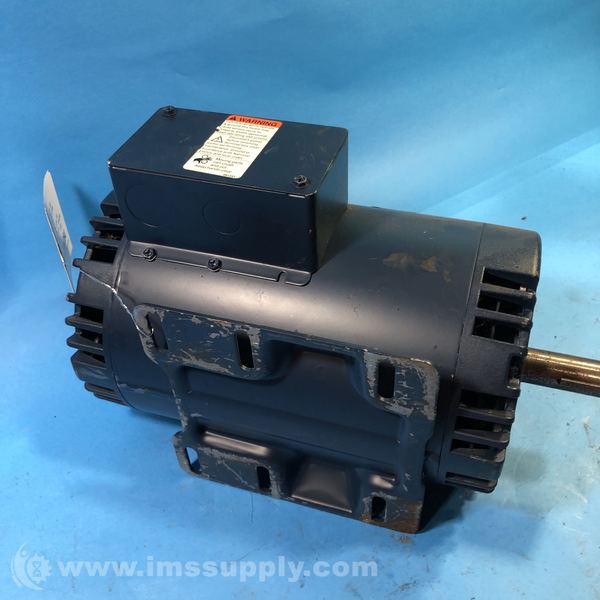

LEESON 116595.00 3 HP GENERAL PURPOSE MOTOR
Quick Overview
Manufactured By: LEESON
Manufacturer Part Number: 116595.00
IMS Product Code: 1897104
Packaging: Sold Individually
Description:
LEESON 116595.00 3 HP General Purpose Motor
Three-phase general purpose motor with 3 HP output, 208-230/460 V voltage, 1740 RPM speed, and ODP enclosure.
Specifications
- horsepower: 3 HP
- voltage: 208-230/460 V
- RPM: 1740
- phase: 3
- enclosure: ODP (Open Drip Proof)
- frame: 56HZ
- mounting: Rigid Base
- current rating: 8.6/4.3 A
- service factor: 1.15
- material: Rolled Steel
- insulation class: F
- design code: C
- thermal protection: No
- ambient temperature: 40 degrees C
- efficiency: 82.5%
- power factor: 79
- duty: Continuous
- starting method: Across The Line
- poles: 4
- rotation: Reversible
- drive end bearing size: 6205
- opp drive end bearing size: 6203
- UL: Recognized
- CSA: Y
- CE: N
- IP code: 22
- electrical type: Squirrel Cage Induction Run
- motor orientation: Horizontal
- drive end bearing: Ball
- opp drive end bearing: Ball
- frame material: Rolled Steel
- shaft type: Single Special Extension
- overall length: 13.13 in
- frame length: 8.00 in
- shaft diameter: 0.875 in
- shaft extension: 2.25 in
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
