LEESON 116743.00 1.5 HP MOTOR
Quick Overview
Manufactured By: LEESON
Manufacturer Part Number: 116743.00
IMS Product Code: 2129794
Packaging: Sold Individually
Description:

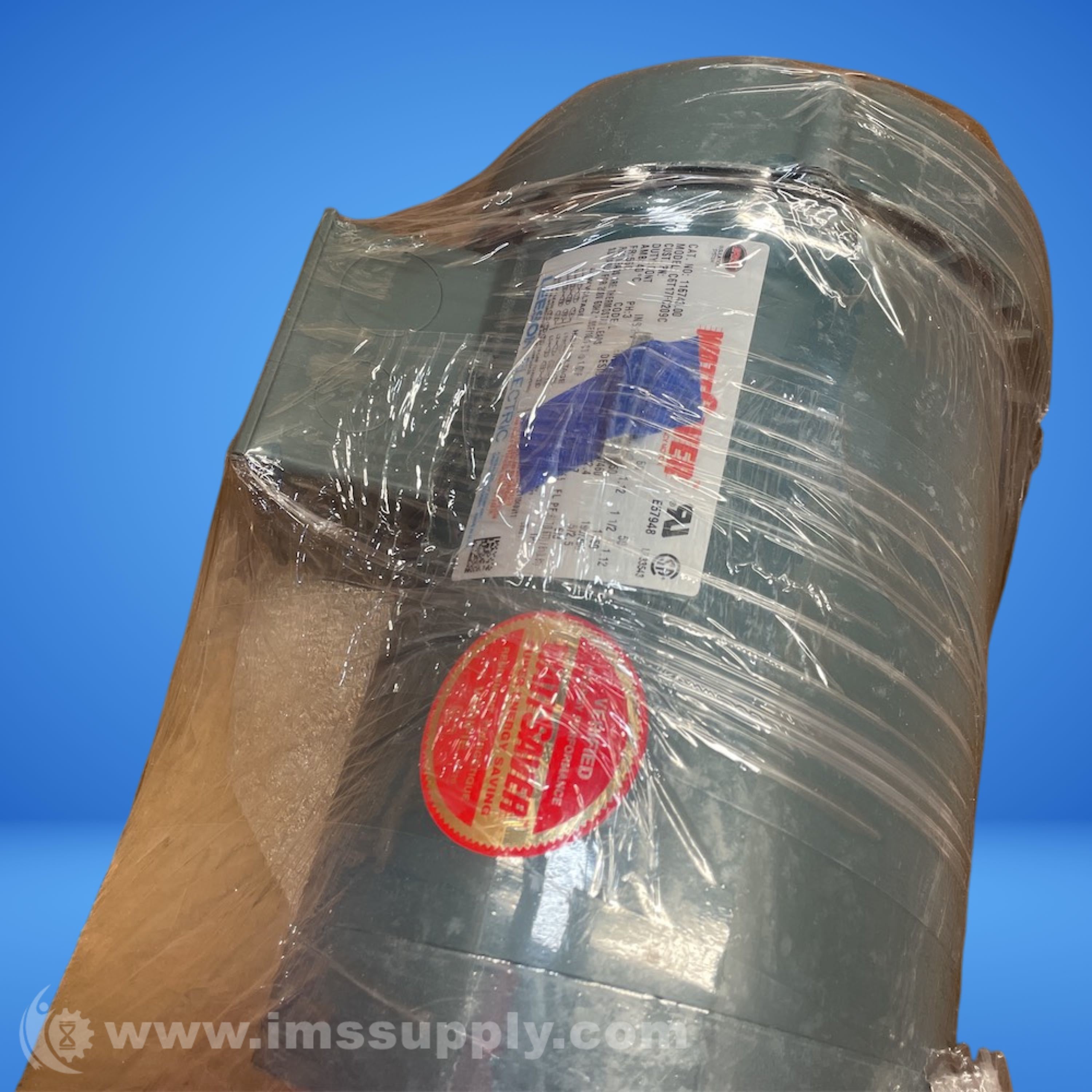

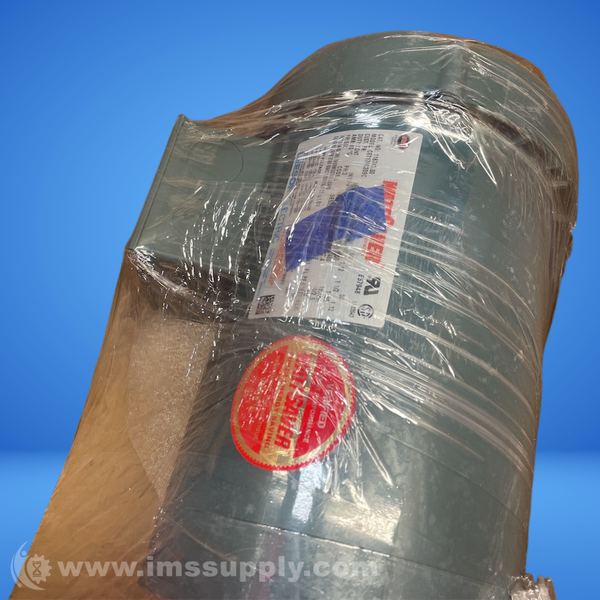

LEESON 116743.00 1.5 HP Motor
Three Phase General Purpose Motor, TEFC Enclosure, 56C Frame, Reversible, Ball Bearings
Specifications
- phase: 3
- output hp: 1.50 & 1.50 Hp
- output kw: 1.1 & 1.1 kW
- voltage: 230/460 & 190/380 V
- speed: 1750 & 1450 rpm
- service factor: 1.25 & 1.25
- frame: 56C
- enclosure: Totally Enclosed Fan Cooled
- thermal protection: Thermostat
- efficiency: 86.5 & 86.5 %
- ambient temperature: 40 degrees C
- frequency: 60 & 50 Hz
- current: 4.8/2.4 & 5/2.5 A
- power factor: 67.7
- duty: Continuous
- insulation class: F
- design code: B
- kva code: L
- drive end bearing size: 6203
- opp drive end bearing size: 6203
- ul: Recognized
- csa: Y
- ce: Y
- ip code: 43
- number of speeds: 1
- electrical type: Squirrel Cage Induction Run
- starting method: Across The Line
- poles: 4
- rotation: Reversible
- resistance main: 9.12 Ohms
- mounting: Round
- motor orientation: Horizontal
- drive end bearing: Ball
- opp drive end bearing: Ball
- frame material: Rolled Steel
- shaft type: NEMA 56
- overall length: 12.98 in
- frame length: 7.50 in
- shaft diameter: 0.625 in
- shaft extension: 1.88 in
- weight: 41.00 LB

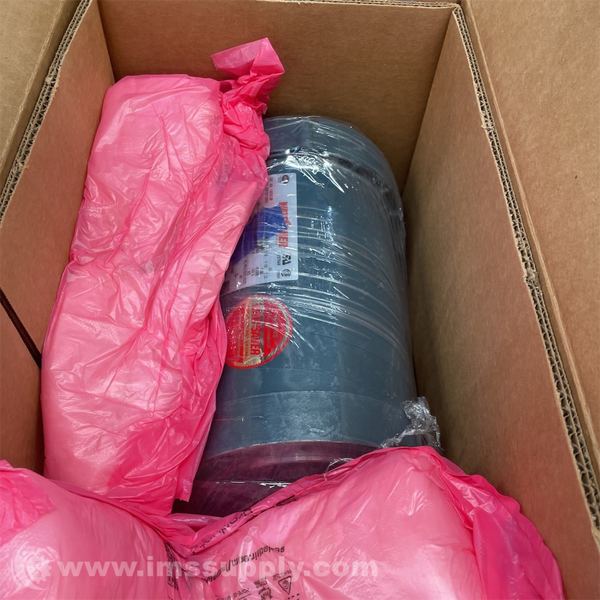

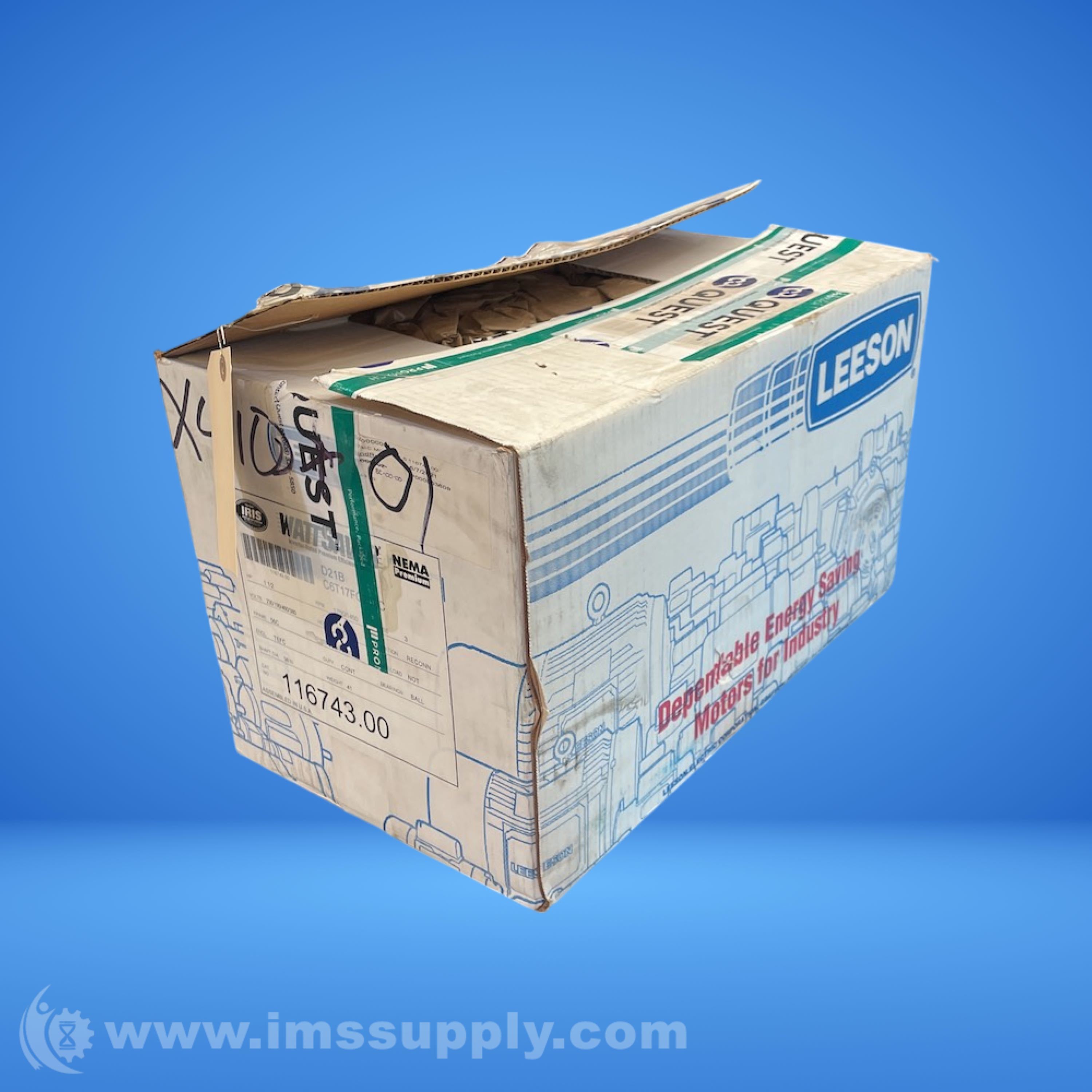

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
