LEESON C184T17FB43E 5 HP ELECTRIC MOTOR
Quick Overview
Manufactured By: LEESON
Manufacturer Part Number: C184T17FB43E
IMS Product Code: 1815153
Packaging: Sold Individually
Description:

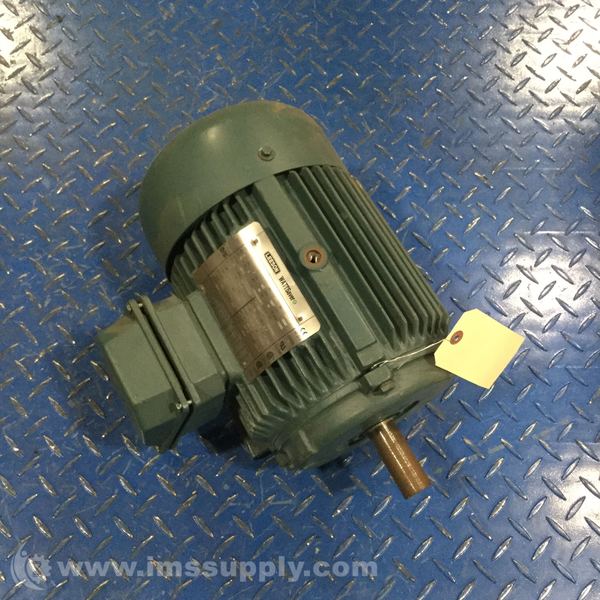

LEESON C184T17FB43E 5 HP Electric Motor
Three-phase, 5 HP, 184T frame, TEFC enclosure, 208-230/460V, 60 Hz, 1760 RPM.
Specifications
- Motor Phase: 3 ph
- Motor Horsepower: 5 hp
- Synchronous Rpm: 1800 rpm
- Motor Supply Voltage: 208-230/460 V
- Frame Size: 184T
- Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
- Frequency Rating: 60 Hz
- Base RPM: 1760 rpm
- Duty Condition Type: Continuous Duty
- Mounting Type: Rigid Base
- Thermal Protection: None
- Electrical Type: Squirrel Cage Inverter Rated
- Full Load Efficiency: 89.50 %
- KVA Code: J
- kW: 3.7 kW
- Motor Poles: 4-pole
- Starting Method: Line or Inverter
- Volts @ Frequency: 208-230/460 V @ 60 Hz
- Shaft Diameter: 1.1250 in
- Shaft Rotation: Reversible
- Shaft Type: T
- Overall Length C Dimension: 16.80 in
- Ambient Temperature Range: 40 degrees C
- Type Of Bearing: Ball Bearing
- NEMA Design Class: B
- Service Factor: 1.15
- Frame Material: Cast Iron
- Insulation Class: F
- IP Rating: 43
- Standards Met: CE, UL Recognized, CSA
- Drive End Bearing Size: 6306
- Opposite Drive End Bearing Size: 6306
- Weight: 111 lbs
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
