LEESON C4T17NK2A 1/2 HP 3 PHASE MOTOR
Quick Overview
Manufactured By: LEESON
Manufacturer Part Number: C4T17NK2A
IMS Product Code: 1930841
Packaging: Sold Individually
Description:

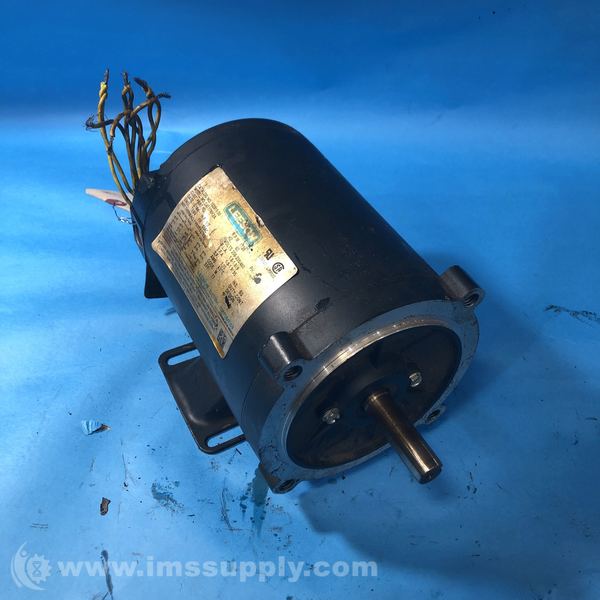

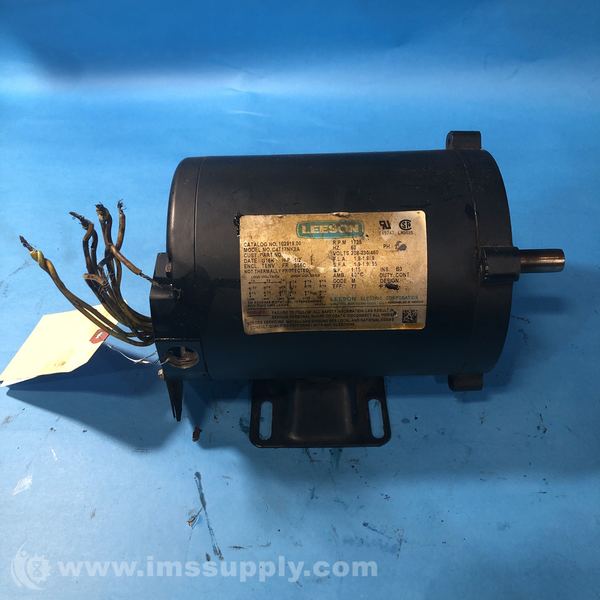

LEESON C4T17NK2A 1/2 HP 3 Phase Motor

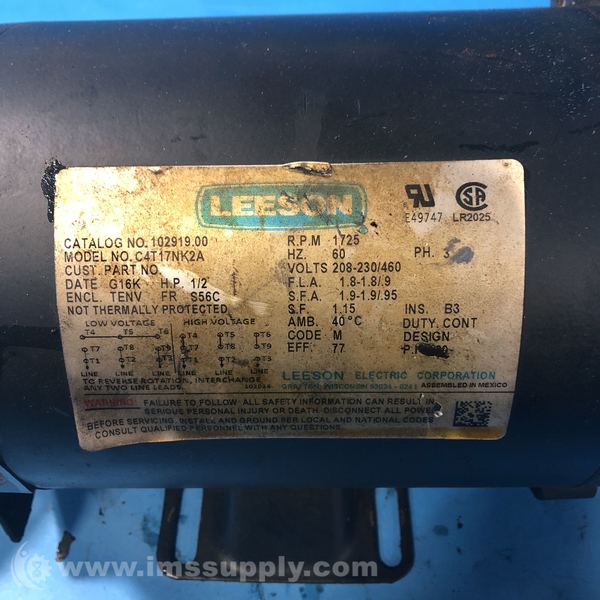

General purpose motor, 1/2 HP, 1725 RPM, 3 phase, 208-230/460V, S56C frame, TENV enclosure
Specifications
- Motor Phase: 3 ph
- Motor Horsepower: 1/2 hp
- Synchronous Rpm: 1800 rpm
- Motor Supply Voltage: 208-230/460 V
- Frame Size: 56C
- Enclosure Type: TENV (Totally Enclosed Non-Ventilated)
- Frequency Rating: 60 Hz
- Base RPM: 1725 rpm
- Duty Condition Type: Continuous Duty
- Mounting Type: Rigid Base
- Thermal Protection: None
- Electrical Type: Squirrel Cage Induction Run
- Full Load Efficiency: 77.00 %
- KVA Code: M
- kW: 0.37 kW
- Motor Orientation: Horizontal
- Motor Poles: 4-pole
- Number Of Speeds: 1
- Starting Method: Across The Line
- Shaft Diameter: 0.6250 in
- Shaft Rotation: Reversible
- Shaft Type: NEMA 56
- Motor Length Less Shaft: 6.00 in
- Overall Length C Dimension: 10.06 in
- Ambient Temperature Range: 40 degrees C
- Opposite Drive End Bearing Type: Ball
- Type Of Bearing: Ball Bearing
- NEMA Design Class: NO DESIGN CODE
- Service Factor: 1.15
- Frame Material: Rolled Steel
- Insulation Class: B
- IP Rating: 43
- Standards Met: UL Recognized, CSA
- Drive End Bearing Size: 6203
- Opposite Drive End Bearing Size: 6203
- Weight: 21.00 lbs
