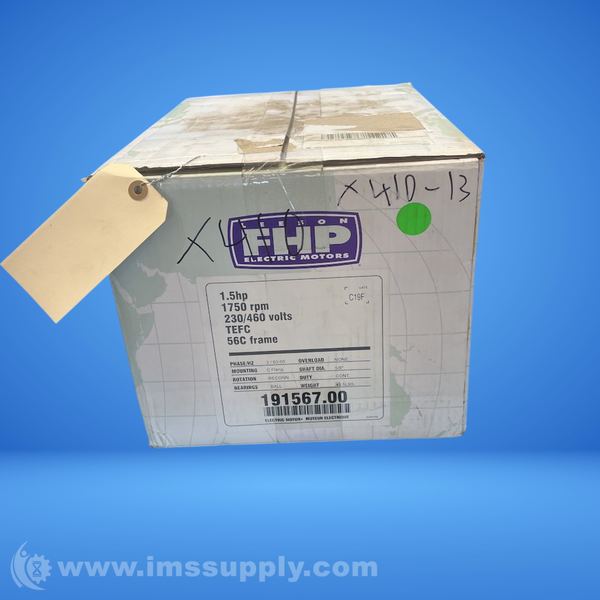

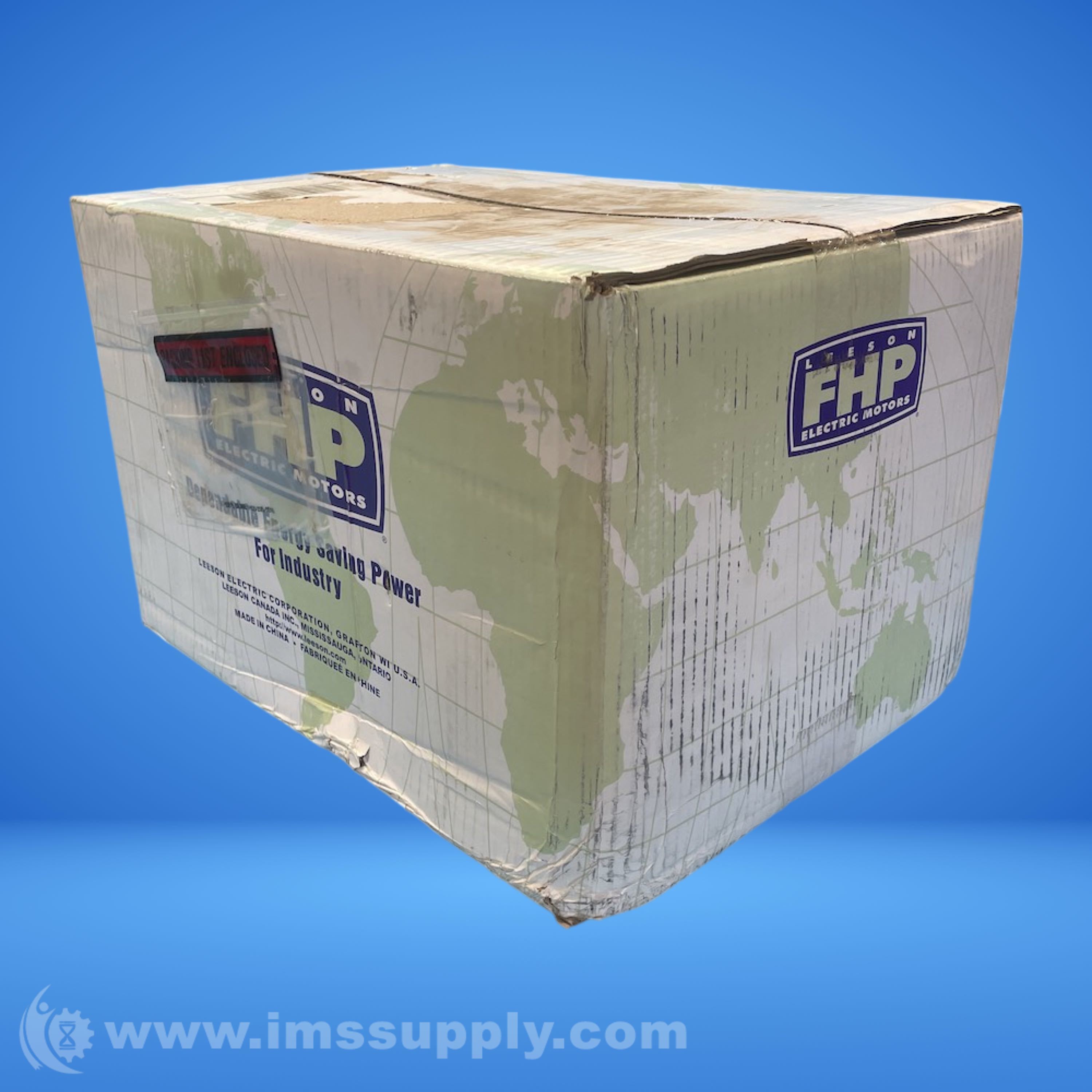

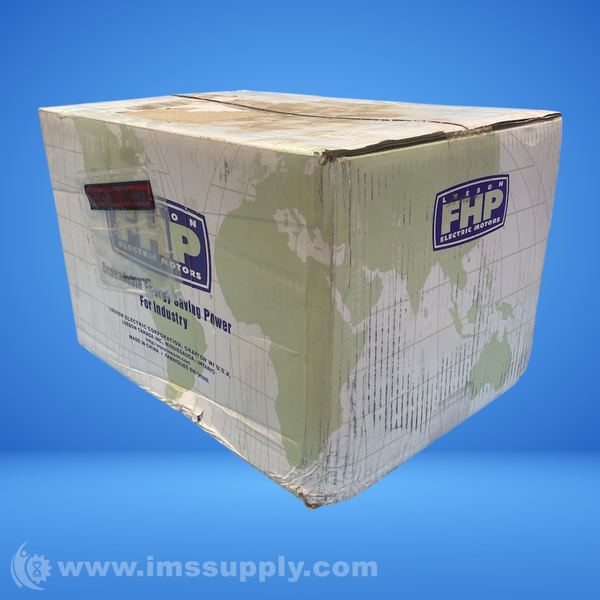

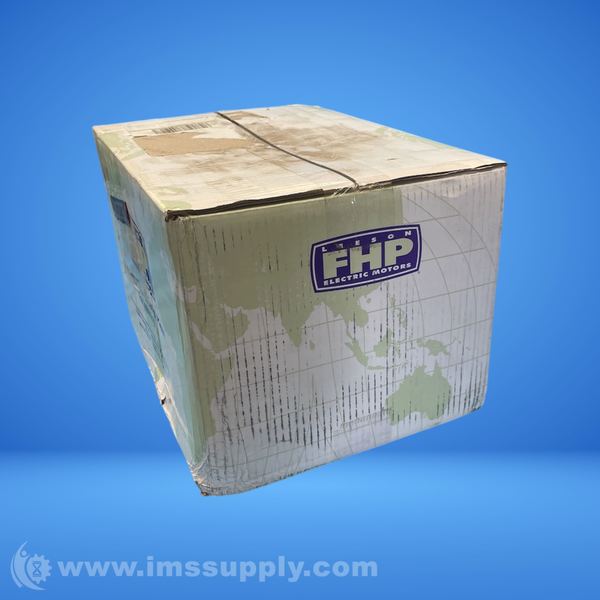

LEESON 191567.00 1.5 HP STAINLESS STEEL MOTOR
Quick Overview
Manufactured By: LEESON
Manufacturer Part Number: C6T17WC48A
IMS Product Code: 2129812
Packaging: Sold Individually
Description:
LEESON 191567.00 1.5 HP Stainless Steel Motor
1.5 HP, 1750 RPM, 3-phase, 208-230/460 V, 56C frame, TEFC enclosure, stainless steel construction, reversible, C-face mount.
Specifications
- Phase: 3
- Output HP: 1.5 hp
- Voltage: 208-230/460 V
- Speed: 1750 rpm
- Service Factor: 1.15
- Frame: 56C
- Enclosure: TEFC
- Thermal Protection: No Protection
- Efficiency: 86.5 %
- Ambient Temperature: 40 degrees C
- Frequency: 60 Hz
- Current: 4.4/2.2 A
- Duty: Continuous
- Insulation Class: F
- Design Code: B
- KVA Code: M
- Drive End Bearing Size: 6205
- Opp Drive End Bearing Size: 6205
- UL: Recognized
- CSA: Y
- CE: Y
- IP Code: 55
- Poles: 4
- Rotation: Reversible
- Mounting: C Face
- Motor Orientation: Horizontal
- Drive End Bearing: Ball
- Opp Drive End Bearing: Ball
- Frame Material: Stainless Steel
- Shaft Type: NEMA 56
- Shaft Diameter: 0.625 in
- Shaft Extension: 1.88 in
- Overall Length: 13.77 in
- Frame Length: 7.99 in
- Weight: 67.00 LB
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships today if ordered in the next 7 hours and 27 minutes.
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 7 hours and 27 minutes.
