LEESON M1115000.00 PARALLEL SHAFT GEARMOTOR
Quick Overview
Manufactured By: LEESON
Manufacturer Part Number: M1115000.00
IMS Product Code: 2143150
Packaging: Sold Individually
Description:
LEESON M1115000.00 Parallel Shaft Gearmotor

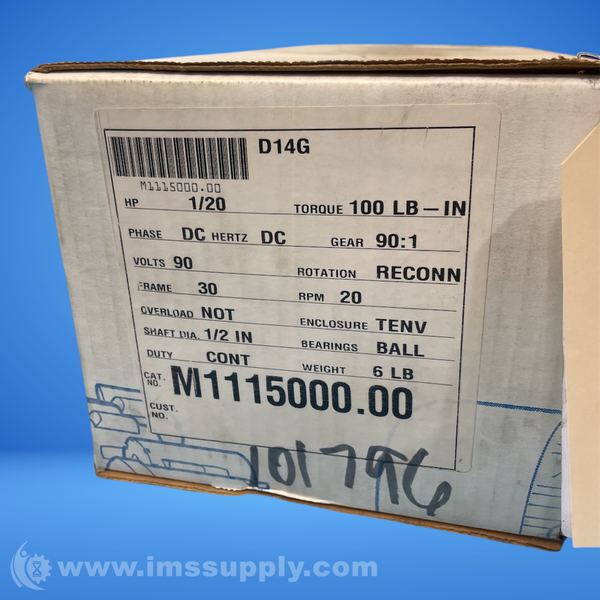

LEESON Parallel Shaft Continuous Duty Gearmotor, 90 VDC, 0.05 HP, 20 RPM, 100 LB-IN Torque, 90:1 Gear Ratio, TENV Enclosure, Class F Insulation
Specifications
- Output HP: 0.05 Hp
- Voltage: 90 V
- Speed: 20 rpm
- Service Factor: 1.0
- Frame: 30
- Enclosure: Totally Enclosed Non Ventilated
- Thermal Protection: No Protection
- Efficiency: 37.3 %
- Ambient Temperature: 40 degrees C
- Current: 0.54 A
- Duty: Continuous
- Insulation Class: F
- Rotation: Reversible
- Shaft Type: Parallel
- Torque: 100 LB-IN
- Weight: 6.00 LB
- Ratio: 90:1
