LEGRIS 3175 60 11 MALE CONNECTOR
Quick Overview
Manufactured By: LEGRIS
Manufacturer Part Number: 3175 60 11
IMS Product Code: 1873266
Packaging: Sold Individually
Description:

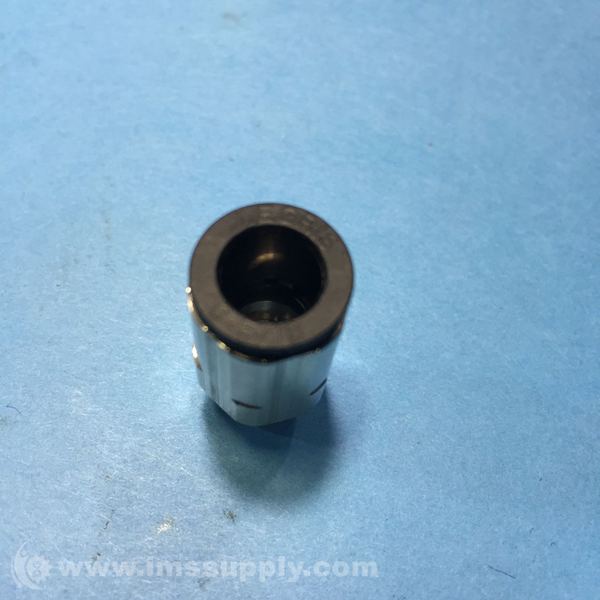

Legris 3175 60 11 Male Connector
Male Connector Push-to-Connect Instant Pneumatic Fitting, 3/8" Tube OD x 1/8" Male NPT Thread, Nickel-Plated Brass
Specifications
- Material: Nickel-Plated Brass
- Series: 3175 Series
- Configuration Type: Tube to Male
- Configuration Sub-Type: Male Connector
- Thread 1 Type: NPT
- Outer Diameter 1: 3/8 Inch
- Thread 1: 1/8 NPT
- Shape (Orientation): Straight
- Seal Material(s): Buna-N/Nitrile Rubber
- Working Pressure: Vacuum to 20 bar
- Working Temperature: -20°C to +80°C
- Maximum Operating Pressure: 290 psi
- Maximum Operating Temperature: 175 Degrees F
- Overall Length: 7/8 in
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 29 In Stock
Ships today if ordered in the next 7 hours and 0 minutes.
