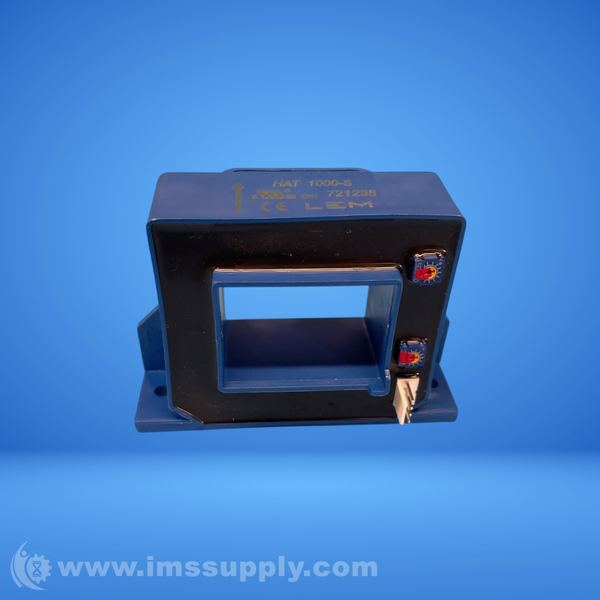

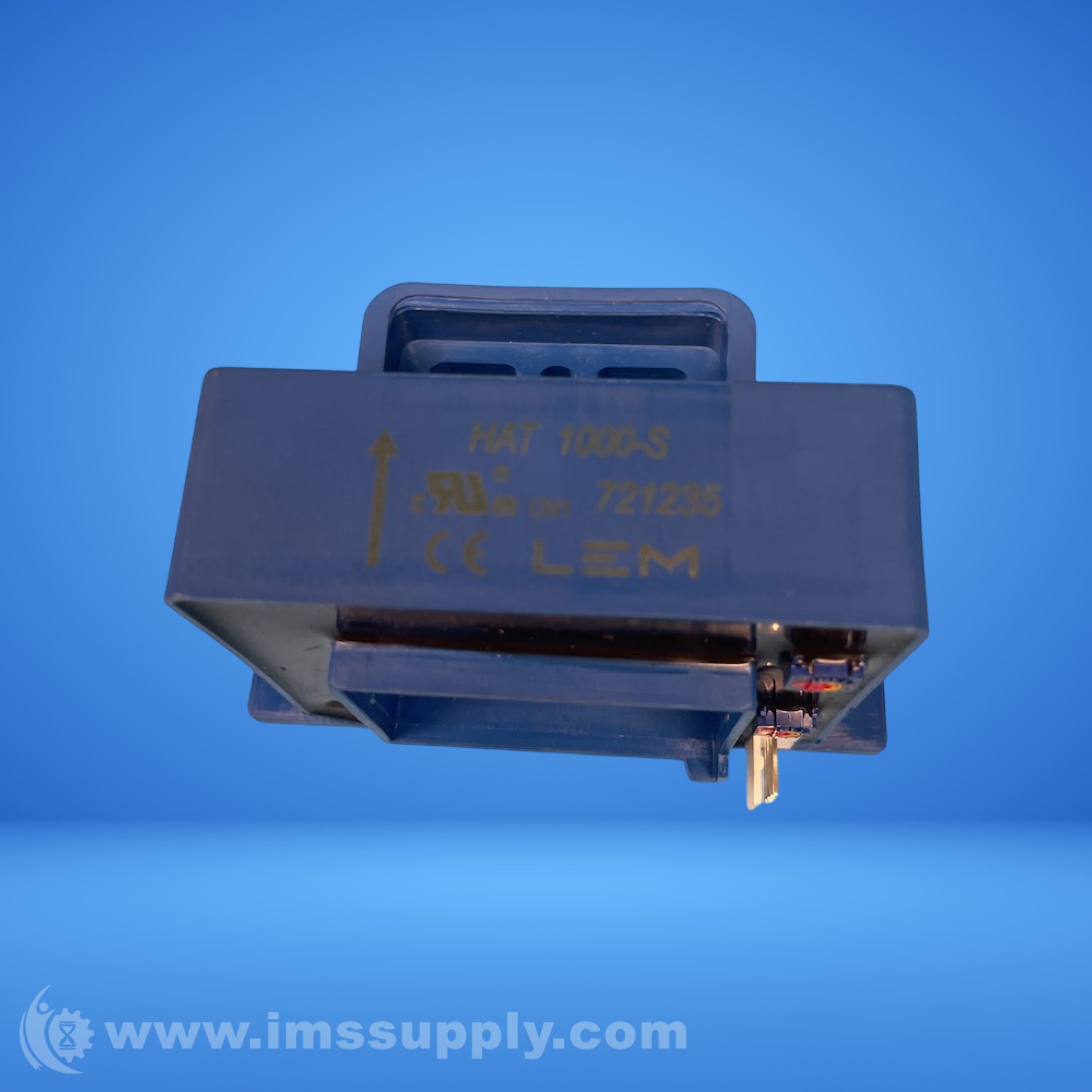

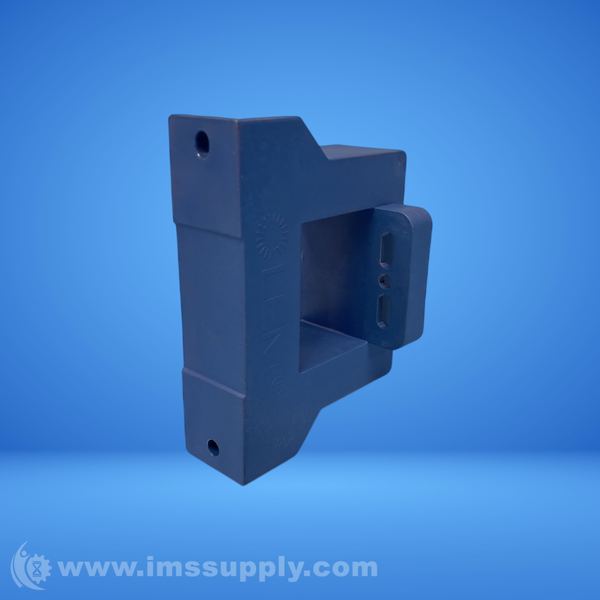

LEM HAT 1000-S CURRENT TRANSDUCER
Quick Overview
Manufactured By: LEM
Manufacturer Part Number: HAT 1000-S
IMS Product Code: 2127355
Packaging: Sold Individually
Description:
LEM HAT 1000-S Current Transducer
Measures AC and DC currents up to 1000A with Hall effect technology
Specifications
- Series: HAT
- Measurement: Current
- Nominal Value: 1000 A
- Measuring Range: 2500 A
- Second. Nominal Signal: Voltage
- Second. Nominal Signal Value: Instantaneous 4 V
- Primary Signal: AC + DC
- Supply Voltage: External DC Bipolar
- Supply Voltage Range: 15 - 15 V
- Accuracy: 1 %
- Op. Temperature: -40 degrees C / 105 degrees C
- Technology: Open loop Hall effect
- Mounting: Panel
- Isolation Voltage: 3000 V
- Case Material: Isolated plastic
- UL Recognition: UL 94-V0
- Frequency: 25 kHz
- Linearity: 1 %
- Max Operating Temperature: 105 degrees C
- Min Operating Temperature: -40 degrees C
- Number of Channels: 1
- Output Voltage: 4 V
- Polarity: Bidirectional
- Response Time: 5 us
- Height: 65 mm
- Length: 70 mm
- Wire/Cable Diameter: 30.5 mm
- Weight: 0.45 kgs
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
