LENEL LNL-8000 RS232 STAR MULTIPLEXER
Quick Overview
Manufactured By: LENEL
Manufacturer Part Number: LNL-8000
IMS Product Code: 2159110
Packaging: Sold Individually
Description:

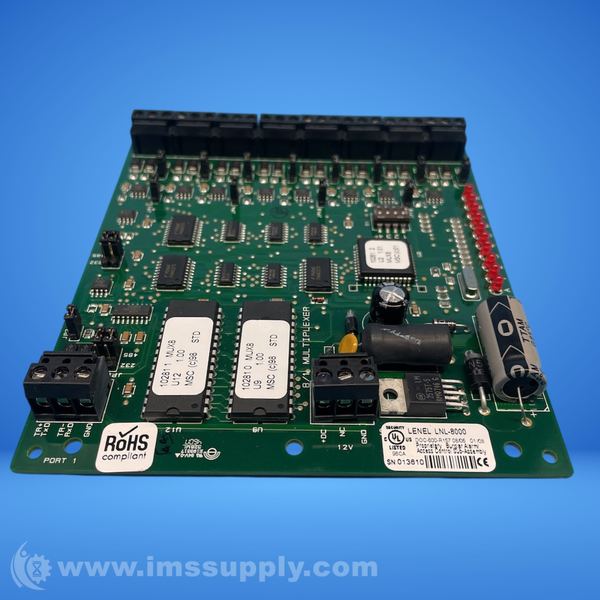

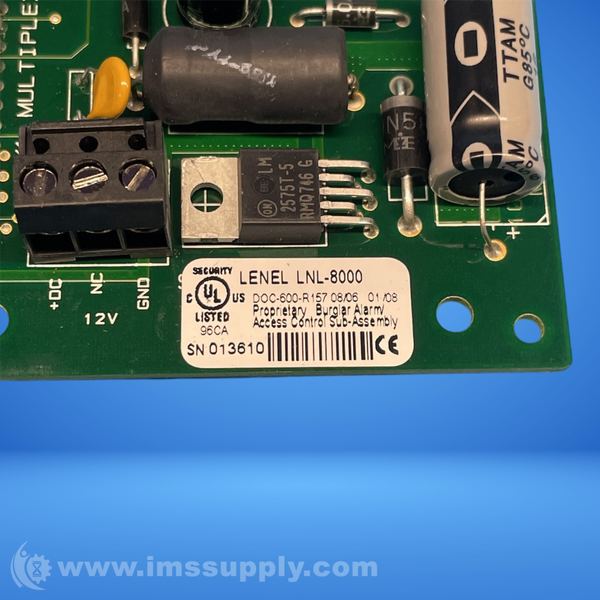

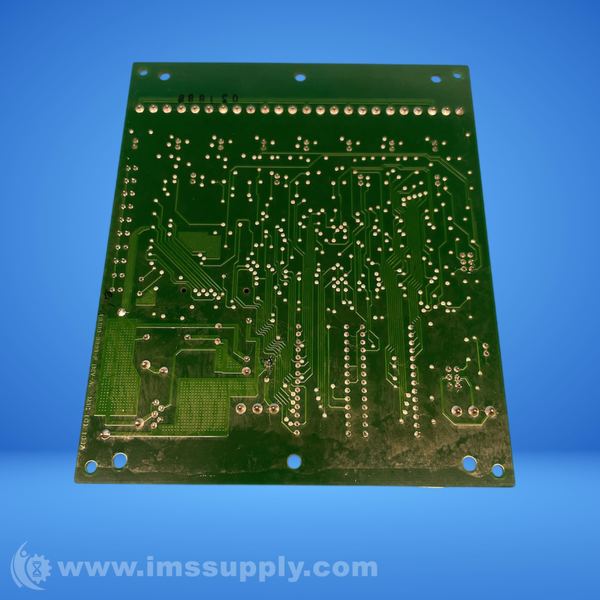

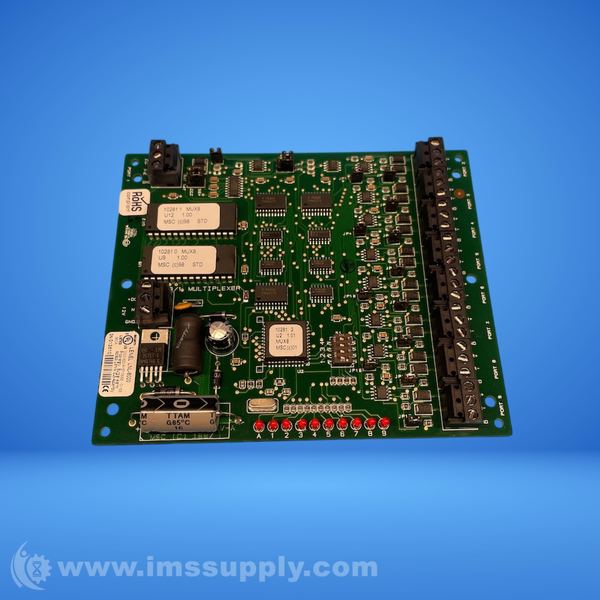

LENEL LNL-8000 RS232 Star Multiplexer
The Lenel LNL-8000 is a Star Multiplexer designed to implement star topology on a downstream port of any Lenel Intelligent System Controller or on any host communication port of any OnGuard server. It requires 12 VDC for power and allows communication protocol conversion, expanding RS-485 connections.
Specifications
- Dimensions: 6.00 � 5.00 � 1.00 in
- Weight: 0.3 lbs
- Type: Multiplexer
- Bus interface: RS232, RS485
- Input power: 12 VDC � 15%, 250 mA
- Status LEDs: heartbeat, upstream and downstream communication
- RS-485 topologies: 2-wire or 4-wire
- RS-485 on-board termination: jumper selectable
- Operating temperature: 32� to 158� F (0� to +70� C)
- Storage temperature: -67� to 185� F (-55� to +85� C)
- Humidity: 0 to 95% RHNC
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
