LEVITON 16251-I DECORA RECEPTACLE
Quick Overview
Manufactured By: LEVITON
Manufacturer Part Number: 16251-I
IMS Product Code: 1773936
Packaging: Sold Individually
Description:

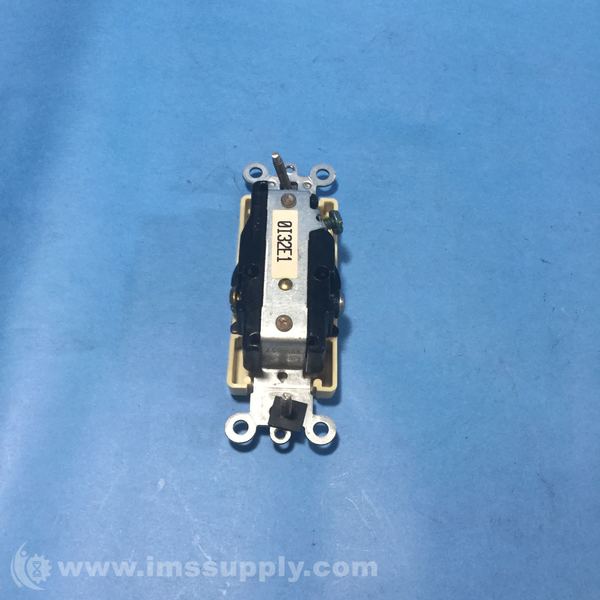

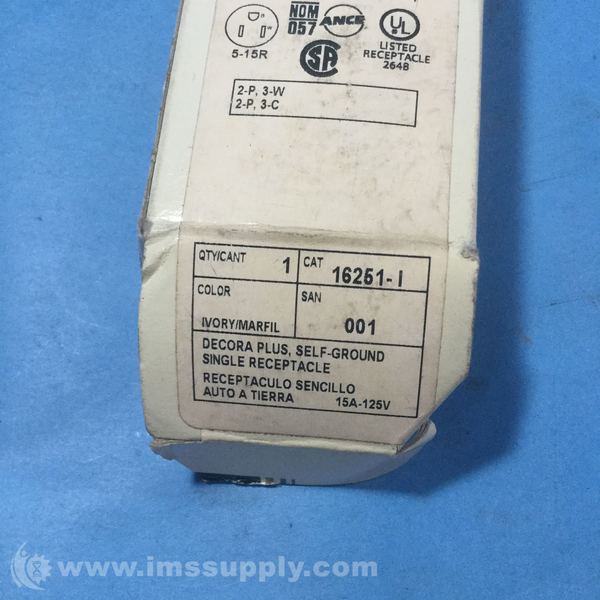

Leviton 16251-I Decora Receptacle
15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, Decora Plus Single Receptacle, Straight Blade, Commercial Grade, Self-Grounding, Back & Side Wired, Steel Strap, Ivory
Specifications
- Amperage: 15 A
- Body Material: Thermoplastic Nylon
- Color: Ivory
- NEMA: 5-15R
- Voltage: 125 VAC
- Grounding: Self-Grounding
- Termination: Back or Side Wire
- Wire Count: 3
- Material: Thermoplastic Nylon
- Grade: Commercial Specification Grade
- Device Type: Single Receptacle Outlet
- Face Material: Thermoplastic Nylon
- Standards and Certifications: UL
- AC Horsepower Ratings: 1/2 HP
- Dielectric Voltage: 2000V per UL498
- Operating Temperature: -40°C to 60°C
- Clamp Nuts: Zinc-Plated Steel
- Ground Clips: Brass-Plated
- Grounding Screw: Brass 8-32
- Line Contacts: Brass Triple-Wipe .031 Thick
- Terminal Screws: Brass 10-32
- Yoke: Zinc-Plated Steel
- Screw Terminal Torque: 14-18 in-lbs
- Terminal Accommodation: 14-10 AWG
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships today if ordered in the next 51 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 51 minutes.
