LEVITON HB011-PDX OCCUPANCY SENSOR
Quick Overview
Manufactured By: LEVITON
Manufacturer Part Number: HB011-PDX
IMS Product Code: 2041053
Packaging: Sold Individually
Description:

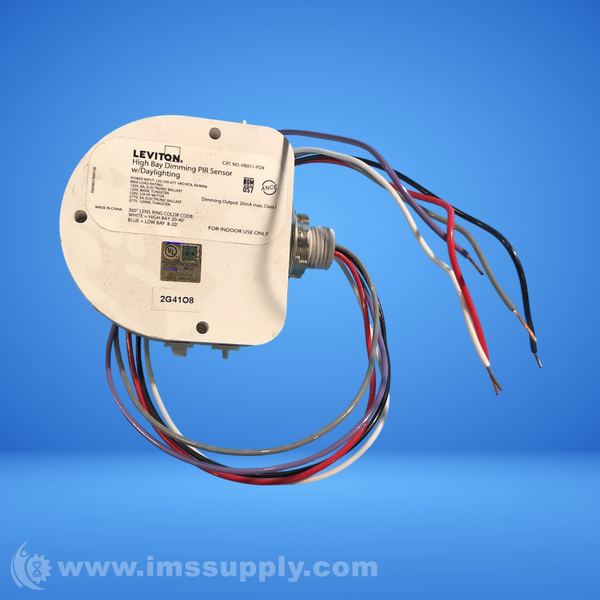

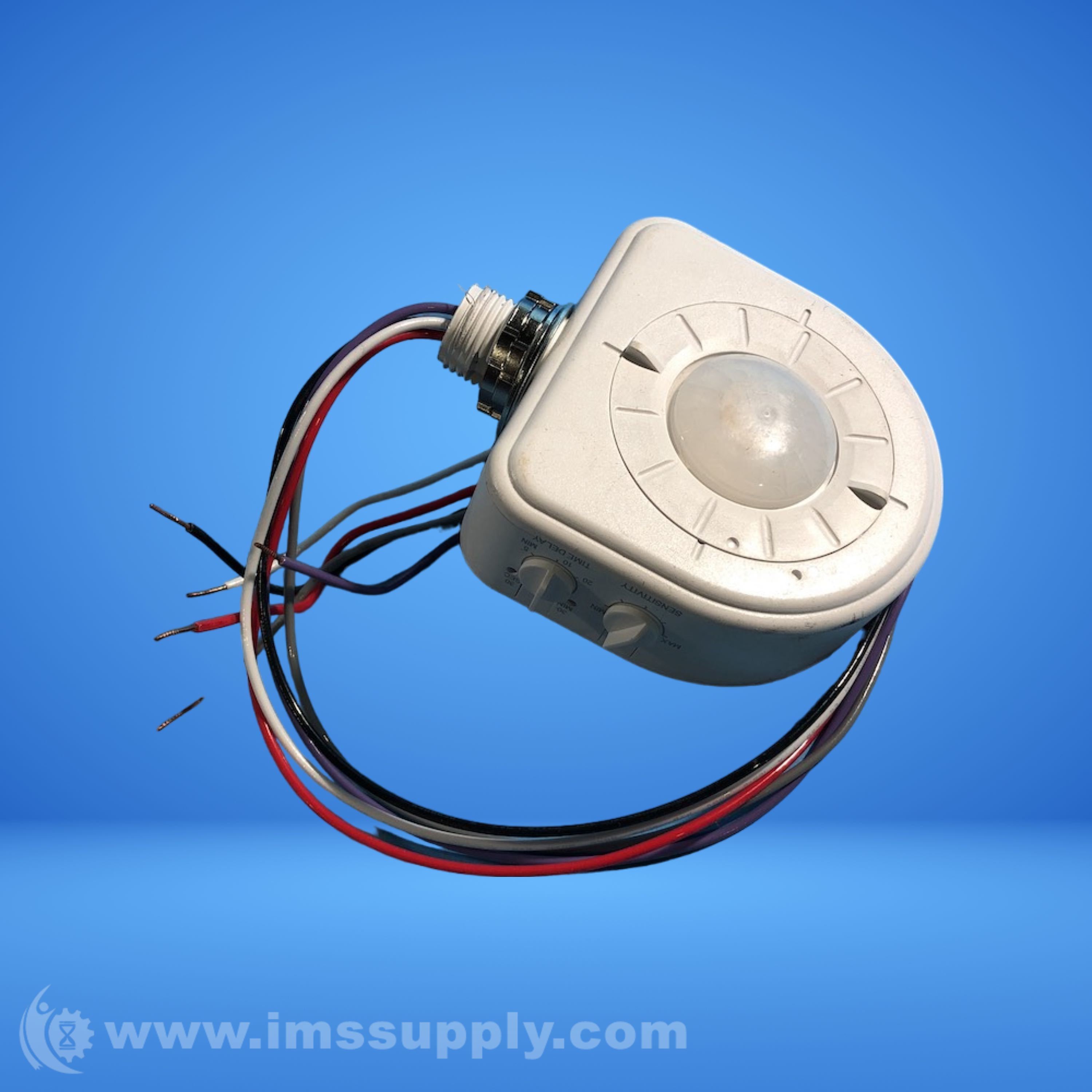

Leviton HB011-PDX Occupancy Sensor
High Bay Fixture Mount Occupancy Sensor with Daylight Harvesting - PIR technology, Single relay with one (1-10VDC sinking current) control line for use to connect directly to low voltage control ballast.
Specifications
- Voltage: 120-277 VAC
- Frequency: 50/60Hz
- Dimming Technology: 0-10VDC
- Wiring: Line-Black, Load-Red, Neutral-White (21" Leads)
- Environment: Indoor
- Relative Humidity: 20% to 75% non-condensing
- Storage Temperature Range: -40 to 122 degrees F (-40 to 50 degrees C)
- Color: White
- Construction: High-impact, injection-molded plastic
- Grade: Commercial
- Mounting Type: Fixture Mount
- Sensor Mounting Configuration: External
- Size: Height 1.58" (40.13mm), Width 4.34" (110.24mm), Length 4.44" (112.78mm)
- Coverage: 8-40
- Pattern: 360 degrees
- Application: Warehouses, Manufacturing facilities, production, Industrial areas, High ceiling applications
- Commissioning: Manual
- Feature: High Bay / Low Bay Dimming and Occupancy Sensing
- Sensor Technology: Passive Infrared (PIR) and Photocell
- Sensor Type: Occupancy and Photocell
- Time Delay: 30s-30m
- Listings: UL 773A, CSA 22.2 No. 205 M1983, FCC Certified
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
