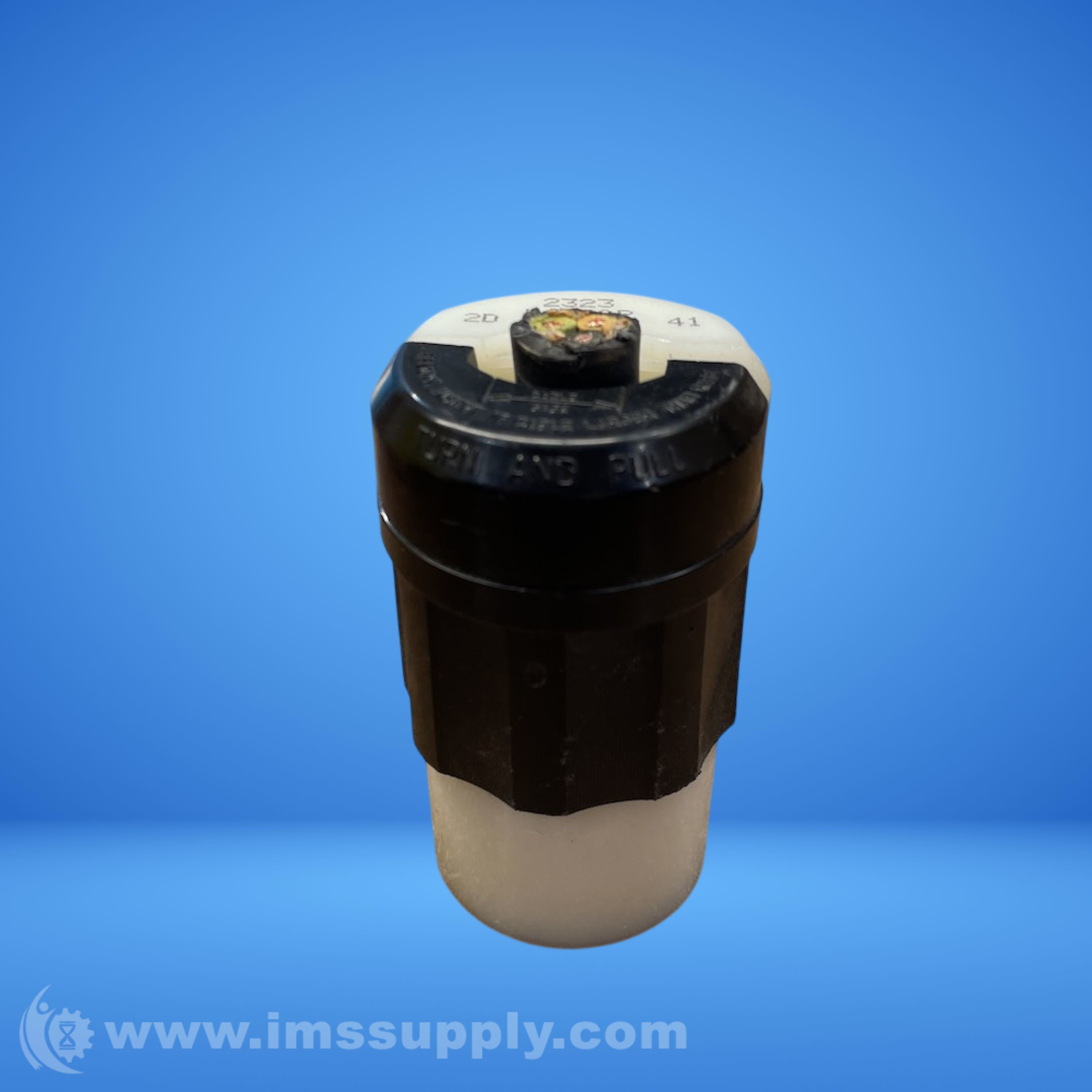

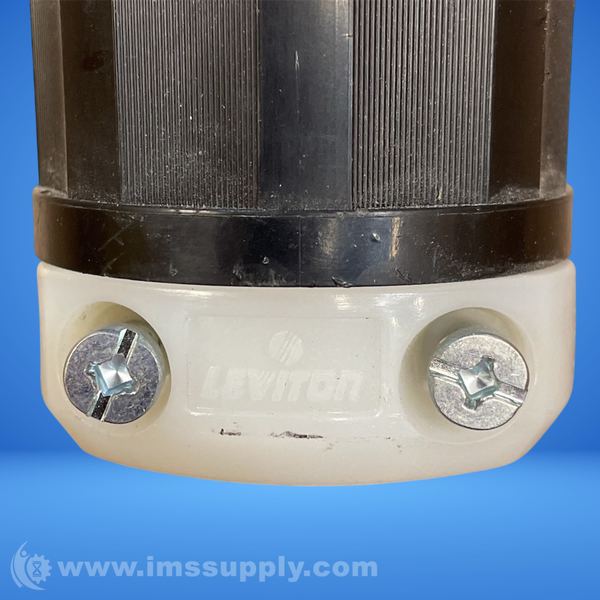

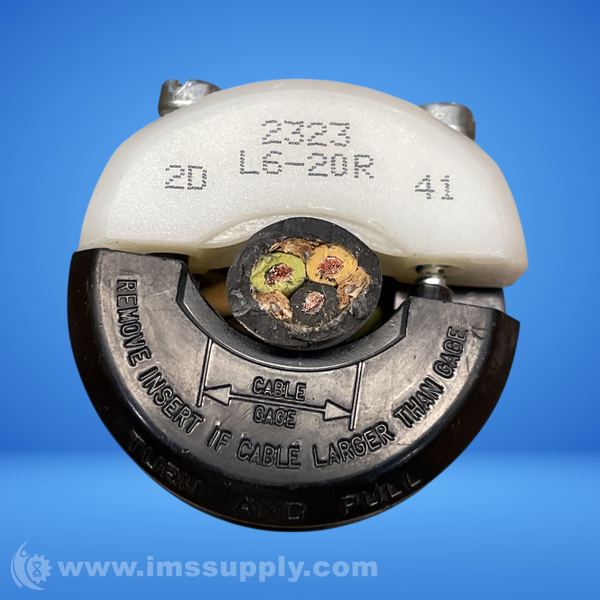

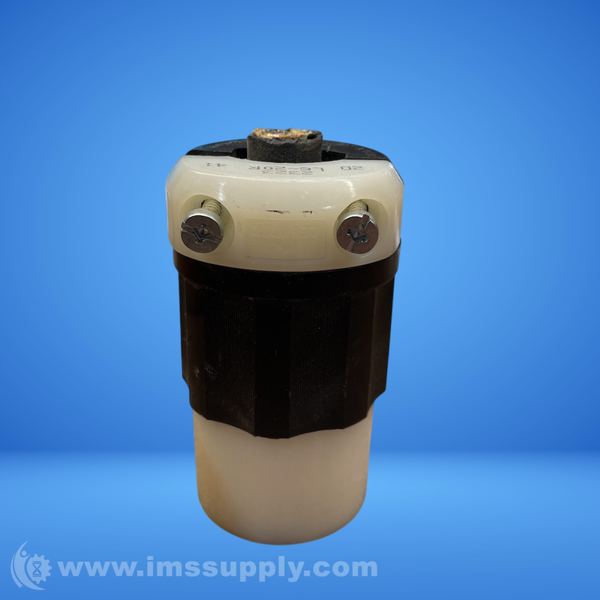

LEVITON L6-20R 20 AMP 250 VOLT LOCKING RECEPTACLE
Quick Overview
Manufactured By: LEVITON
Manufacturer Part Number: L6-20R
IMS Product Code: 2100187
Packaging: Sold Individually
Description:
Leviton L6-20R 20 Amp 250 Volt Locking Receptacle
20 Amp, 250 Volt, NEMA L6-20R, 2 pole, 3 wire industrial grade locking receptacle with grounding.
Specifications
- Amperage: 20 A
- Voltage: 250 VAC
- Pole: 2
- Wire: 3
- NEMA: L6-20R
- Grounding: Grounding
- Dielectric Voltage: Withstands 2000V per UL498
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- Operating Temperature: -40°C to 60°C
- Base Material: Nylon
- Body Material: Valox or Nylon
- Face Material: Nylon
- Ground Contacts: Brass or Nickel-Plated Brass
- Line Contacts: Brass or Nickel-Plated Brass
- Strap Material: Nickel-Plated Brass
- Terminal Accom.: 14-8 AWG
- Termination: Back & Side or Back
- Screw Terminal Torque: 14-18 in-lbs
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
Ships today if ordered in the next 2 hours and 30 minutes.
