HUBBELL HBL2311 L5-20P LOCKING PLUG
Quick Overview
Manufactured By: HUBBELL
Manufacturer Part Number: HBL2311
IMS Product Code: 823677
Packaging: Sold Individually
Description:

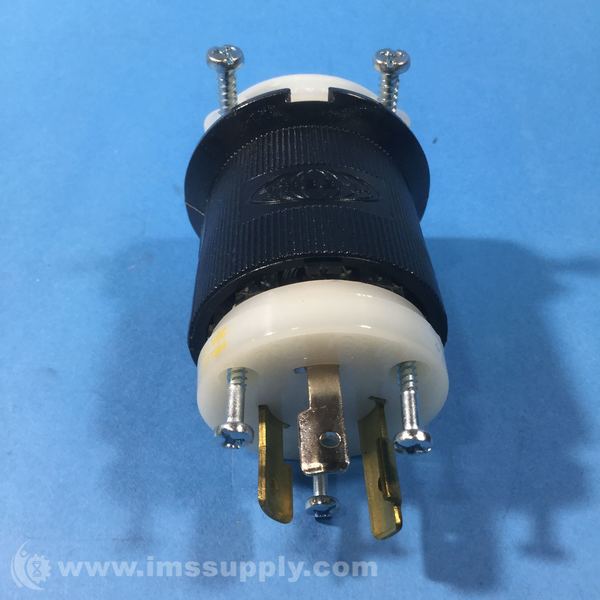

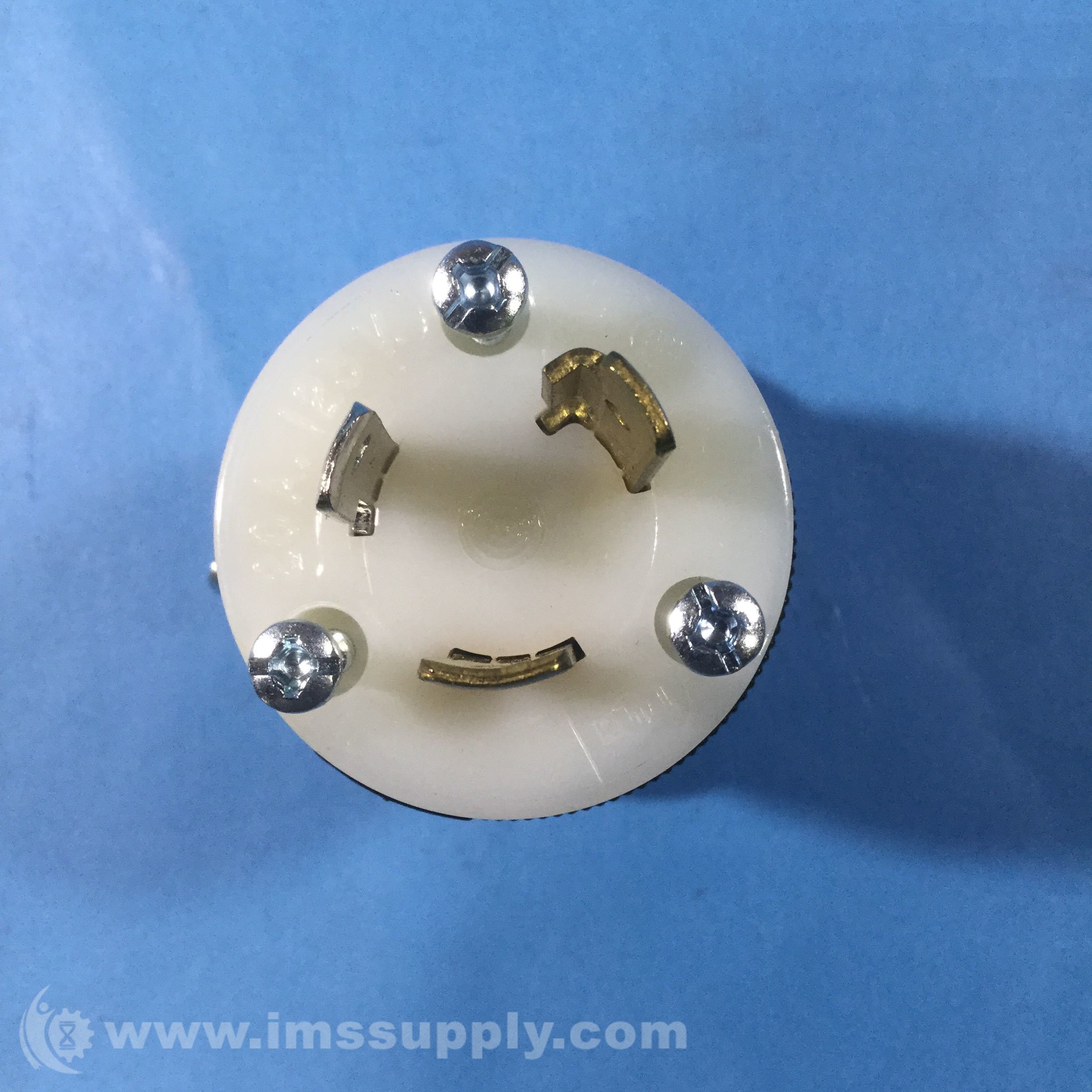

Hubbell HBL2311 L5-20P Locking Plug
NEMA L5-20P Twist-Lock male plug rated for 20A, 125V AC. Constructed from industrial-grade nylon with brass blades and screw terminals. Designed for dry environments and suitable for cord diameters between 0.36 and 0.93 inches.
Specifications
- NEMA Configuration: L5-20P
- Voltage Rating: 125V AC
- Current Rating: 20A
- Pole Count: 2
- Wire Count: 3
- Housing Material: Nylon
- Blade Material: Brass
- Cord Size Range: 0.36 to 0.93 in.
- AWG Wire Size Range: 16 - 8 AWG
- Operating Temperature Range: -40�C to 75�C
- Standards Compliance: UL 498, CSA C22.2 No. 42
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 5 hours and 52 minutes.
Used (Special):
Missing black nylon housing.
Availability: 3 In Stock
Ships today if ordered in the next 5 hours and 52 minutes.
Used (Special):
Missing black nylon housing.
Availability: 1 In Stock
Ships today if ordered in the next 5 hours and 52 minutes.
