LEVITON LDS30-FAX FUSED SAFETY DISCONNECT SWITCH
Quick Overview
Manufactured By: LEVITON
Manufacturer Part Number: LDS30-FAX
IMS Product Code: 2130737
Packaging: Sold Individually
Description:

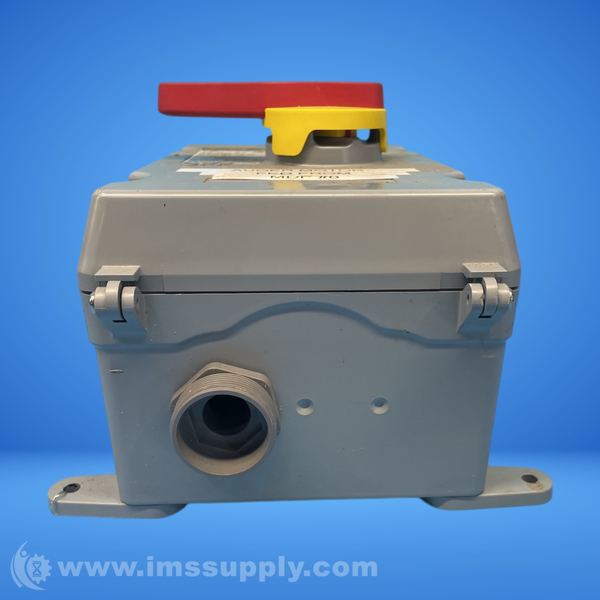

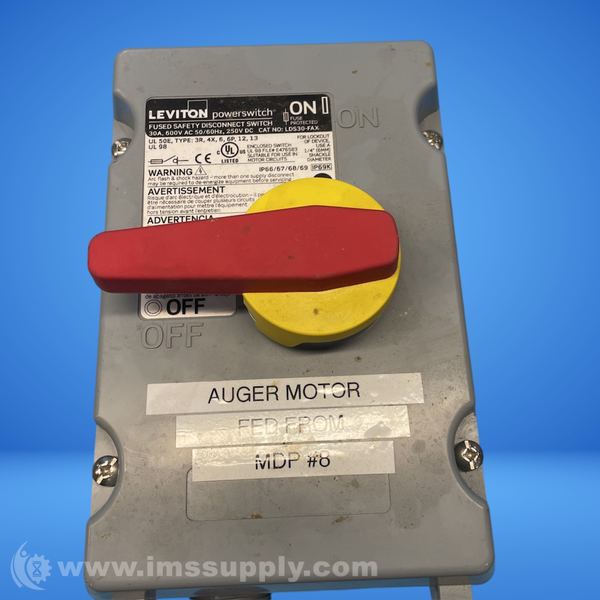

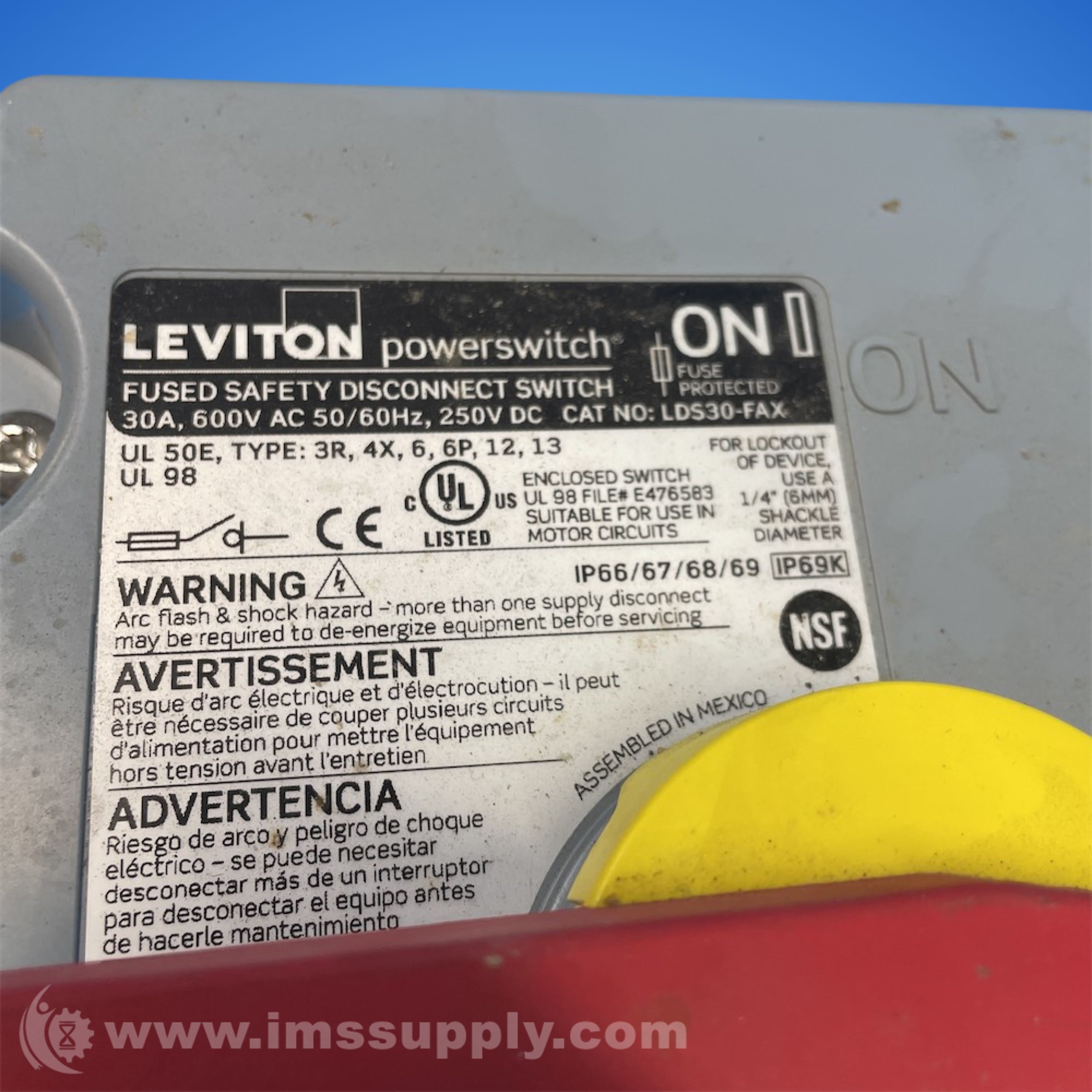

Leviton LDS30-FAX Fused Safety Disconnect Switch
30 Amp Fused PowerSwitch Disconnect Switch, 600 Volt, Non-Metallic Enclosure
Specifications
- Amperage: 30 A
- Voltage: 600 VAC
- Enclosure Material: Non-Metallic
- Ingress Protection: NEMA/UL 50E Type 3R, 4, 4X, 6, 6P, 12, 13 IEC IP66, IP67, IP68, IP69 IP69K
- Operating Temperature: -40°C to 75°C
- Short Circuit Current Rating: 200 kA; Fuse Type J; Fuse Size 30A
- Dielectric Voltage: 1000 V plus twice rated voltage for 1 minute
- Endurance: 6,000 operating cycles at rated current and voltage
- UV Resistance: Exposed materials are UV stabilized
- Terminal Accom.: 18 - 8 AWG
- Mounting: Feet Mount
- Dimensions: 6.5 Inch Width x 6.82 Inch Depth x 10.46 Inch Height
- Hub Size: 3/4 Inch
- Conductor Material: Copper
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 3 hours and 26 minutes.
