LEVITON MS603-BW MANUAL MOTOR STARTER SWITCH
Quick Overview
Manufactured By: LEVITON
Manufacturer Part Number: MS603-BW
IMS Product Code: 2141283
Packaging: Sold Individually
Description:

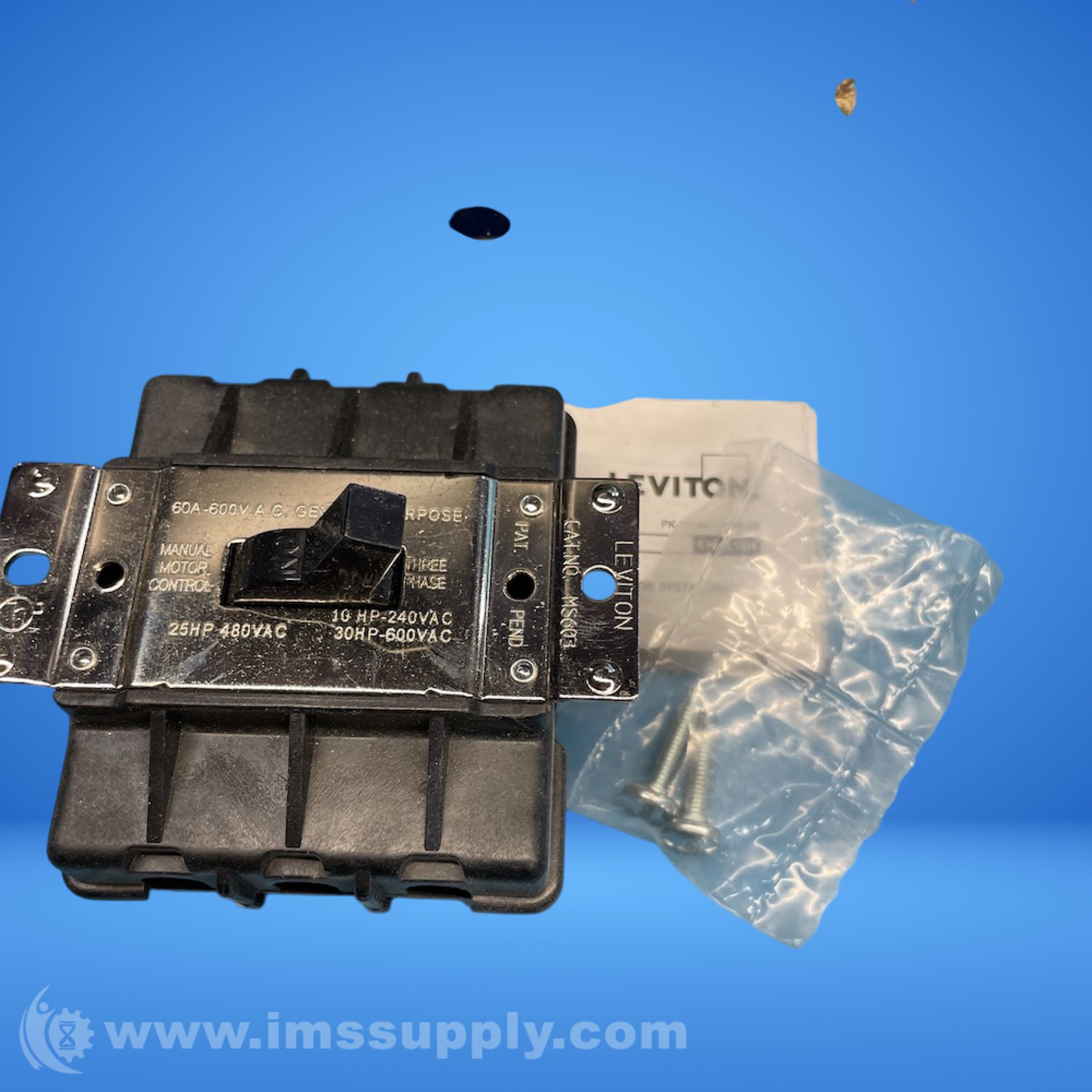

Leviton MS603-BW Manual Motor Starter Switch
Leviton MS603-BW is a manual motor starter switch rated for 60A and 600V AC. It is a three-pole, single-throw switch with back wiring and industrial specification grade construction. The switch is made of black thermoplastic polyester and has a standard toggle actuator.
Specifications
- Amperage: 60 A
- Voltage: 600 VAC
- Pole: 3
- HP Rating: 10HP-240V, 25HP-480V, 30HP-600V
- Material: Black Thermoplastic Polyester
- Dimensions: 3.43 Inch Width x 1.71 Inch Depth x 3.75 Inch Height
- Termination: Back Wired
- Short Circuit Current Rating: 5,000 RMS symmetrical amps at 600V AC max
- Operating Temperature: -40°C to 60°C
- Approvals: UL 508, CSA C22.2, NOM
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships on Monday, December 22, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
