LINCOLN ELECTRIC ED033518 STICK ELECTRODE
Quick Overview
Manufactured By: LINCOLN ELECTRIC
Manufacturer Part Number: ED033518
IMS Product Code: 2159951
Packaging: Pack of 64
Box of 4
Pack of 64
Description:

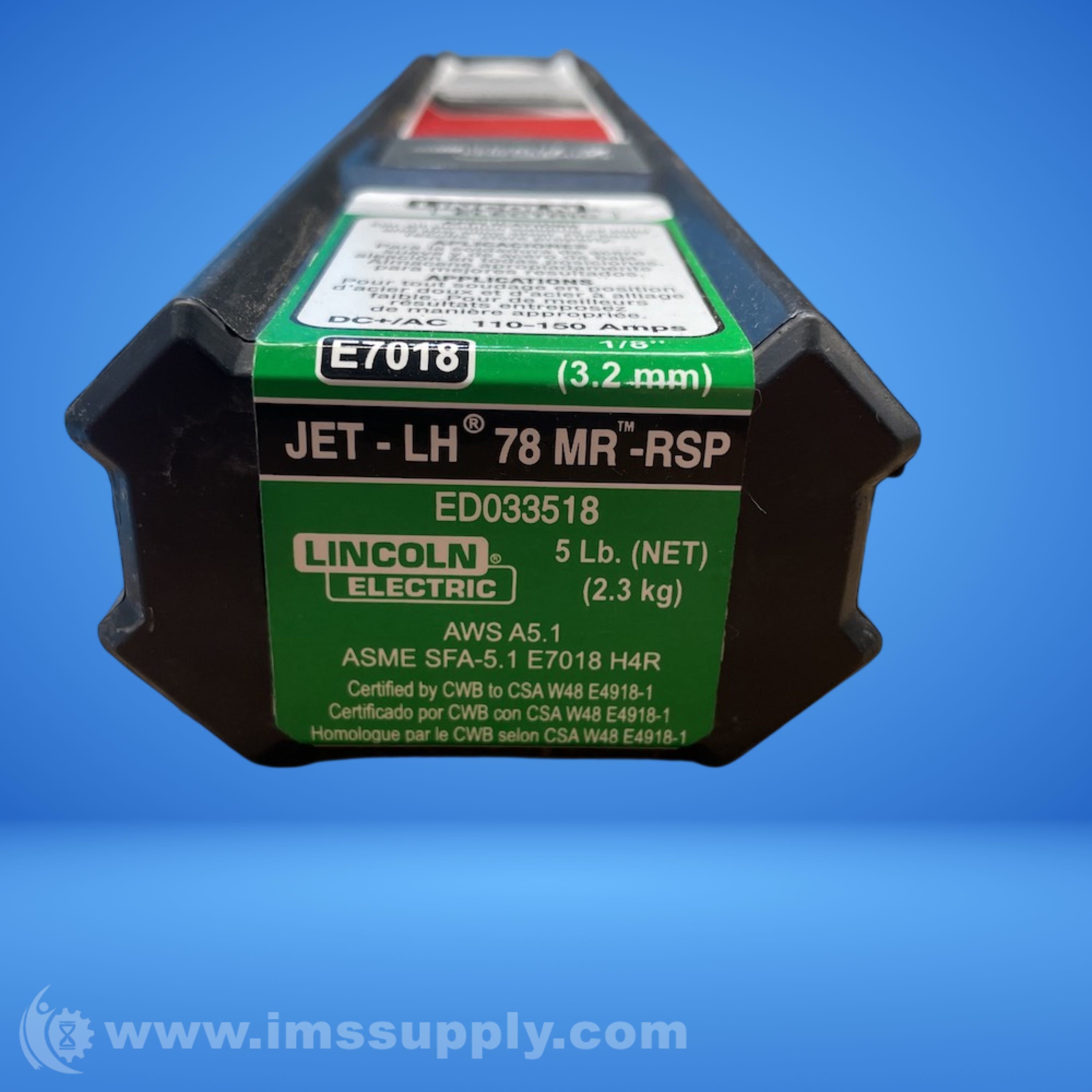

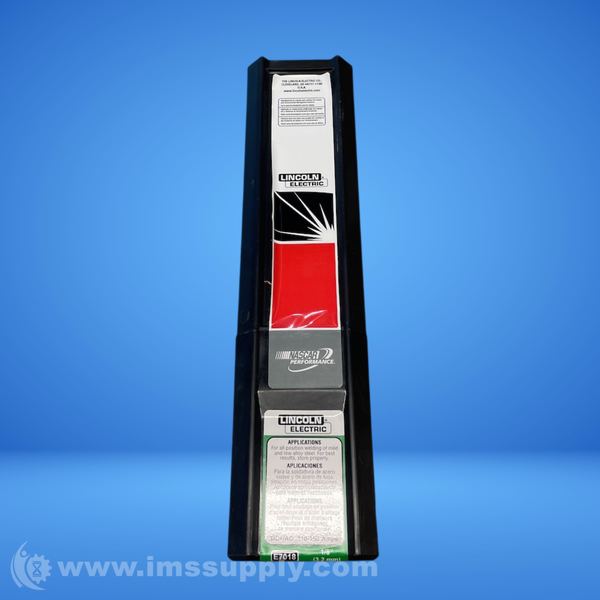

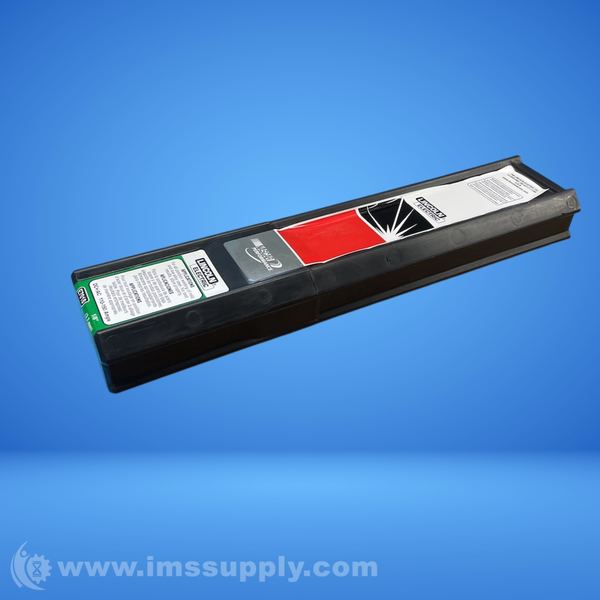

Lincoln Electric ED033518 Stick Electrode
Lincoln Electric JET-LH 78 MR-RSP stick electrode, E7018 H4R classification, 1/8 inch diameter, 14 inch length, 5 lb package, for mild and low alloy steel welding.
Specifications
- Classification: E7018 H4R
- Diameter: 1/8 inch (3.2 mm)
- Length: 14 inches
- Polarity: DC+, AC
- Current: 110-160 Amps (DC+), 120-170 Amps (AC)
- Weight: 5 lb (2.3 kg)
- Conformance: AWS A5.1, ASME SFA-5.1, CWB/CSA W48
- Tensile Strength: 480 MPa (70 ksi) min.
- Yield Strength: 400 MPa (58 ksi) min.
- Elongation: 22% min.
- Charpy V-Notch: 27 J (20 ft-lbs) min. at -30°C (-20°F)
- Diffusible Hydrogen: 4 mL/100g max.
