LINEMASTER 3C-30A2-S PNEUMATIC FOOT SWITCH
Quick Overview
Manufactured By: LINEMASTER SWITCH CORPORATION
Manufacturer Part Number: 3C-30A2-S
IMS Product Code: 1974893
Packaging: Sold Individually
Description:

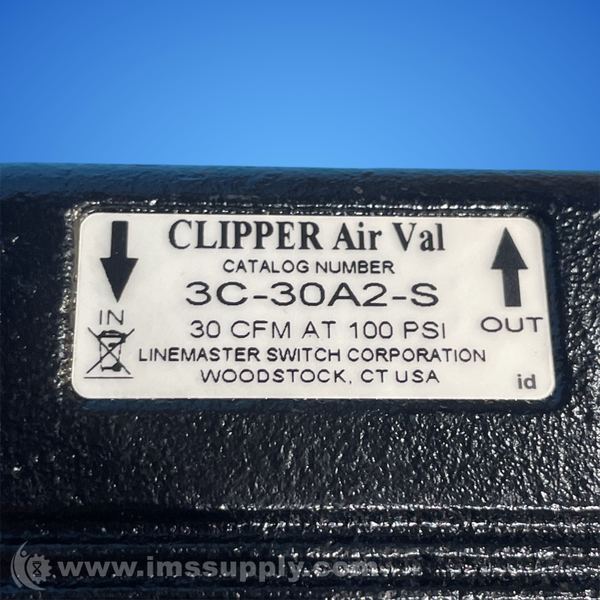

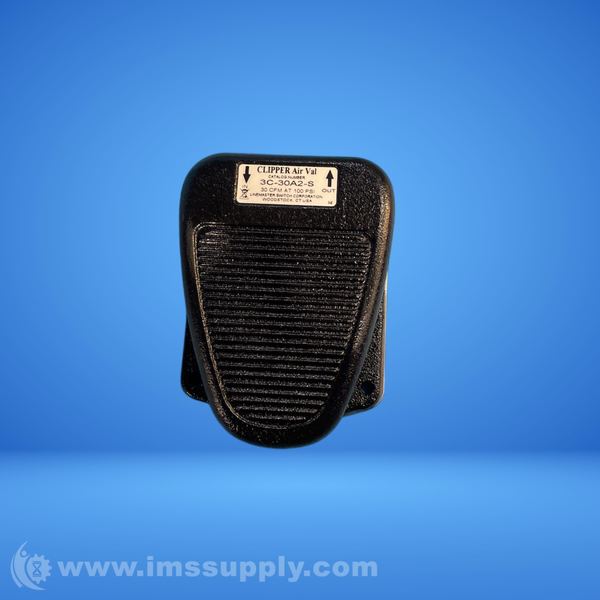

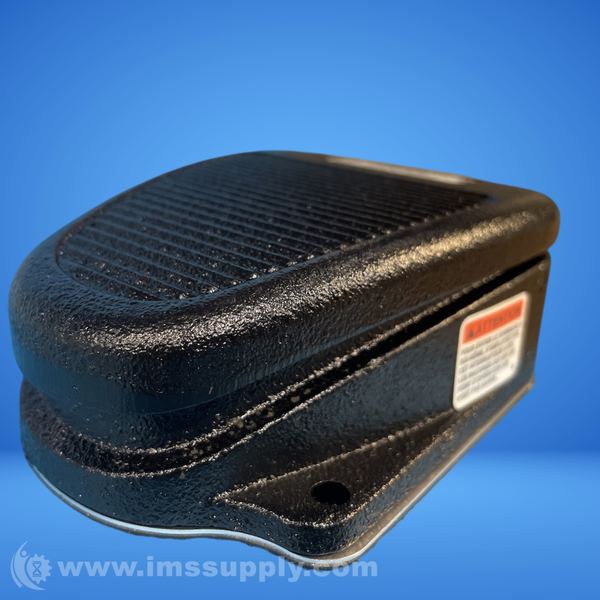

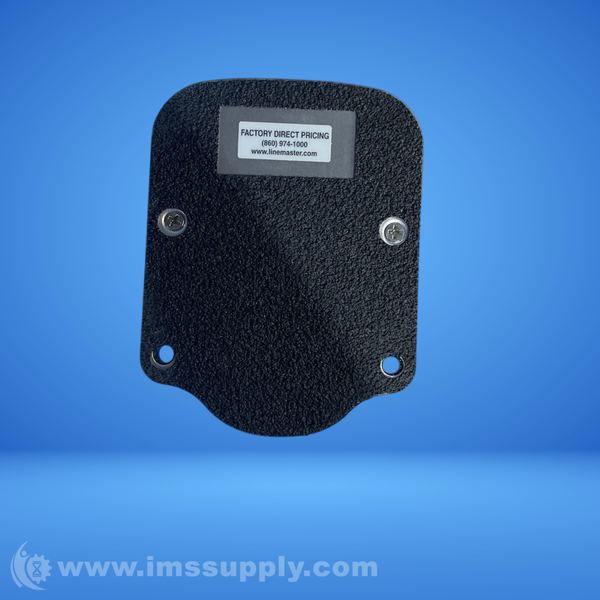

Linemaster 3C-30A2-S Pneumatic Foot Switch
3-way pneumatic foot switch with cast iron housing, 30 CFM air flow at 100 PSI, 3-way momentary control function, and non-skid base mounting.
Specifications
- Air Flow: 30 CFM at 100 PSI
- Control Function: 3-Way Momentary
- Exhaust: 25 CFM at 100 PSI
- Line Pressure: 150 PSI (max)
- Material: Cast Iron Housing, Black
- Operating Force: 10 lb
- Port Size: 1/8-27 NPT (input & output)
- Temperature Rating: -18 to 55 Degree C (0 to 131 Degree F)
- Dimensions: WxLxH: 3.45 x 4.56 x 1.78 in. (87.6 x 115.8 x 45.2mm)
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
