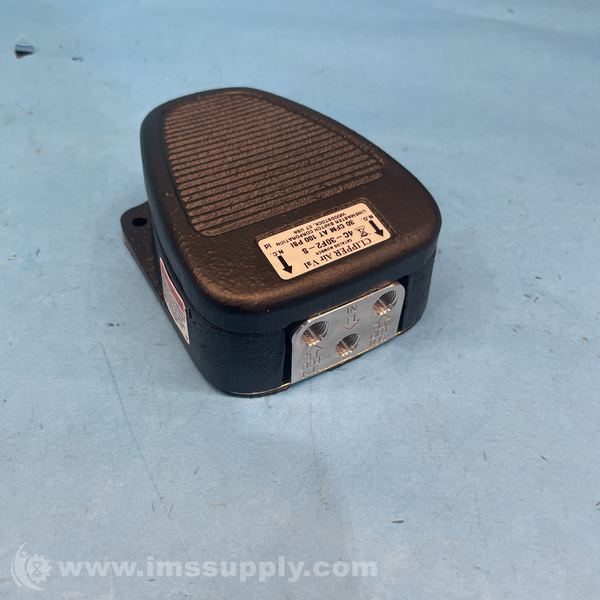

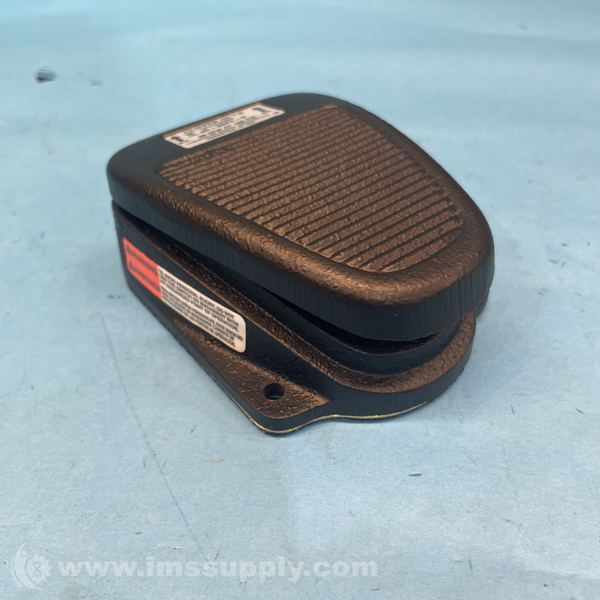

LINEMASTER 4C-30F2-S PNEUMATIC FOOT SWITCH
Quick Overview
Manufactured By: LINEMASTER SWITCH CORPORATION
Manufacturer Part Number: 4C-30F2-S
IMS Product Code: 2135035
Packaging: Sold Individually
Description:
Linemaster 4C-30F2-S Pneumatic Foot Switch
Pneumatic foot switch with 4-way momentary action, cast iron housing, and 1/8"-27 NPT ports.
Specifications
- Switch Type: Pneumatic Airval
- Actions: Momentary
- Material: Cast Iron
- Pneumatic Valves: 4-way air valve
- Input & Output Ports: 1/8"-27 NPT Ports - Exposed
- Operating Temperature: 0 to 131 °F (-18 to +55 °C)
- Series: AirVal Clipper
- NEMA Enclosure Rating: 1; 2; 4; 13
- Number of Pedals: 1
- Overall Depth: 4.38 in
- Overall Width: 5.87 in
- Power Source: Pneumatic
- Standards: RoHS
- Termination Connection Type: 1/8"-27 NPT Conduit Hole
- Country of Origin: USA
