LINEMASTER 971-S FOOT SWITCH
Quick Overview
Manufactured By: LINEMASTER SWITCH CORPORATION
Manufacturer Part Number: 971-S
IMS Product Code: 2075161
Packaging: Sold Individually
Description:

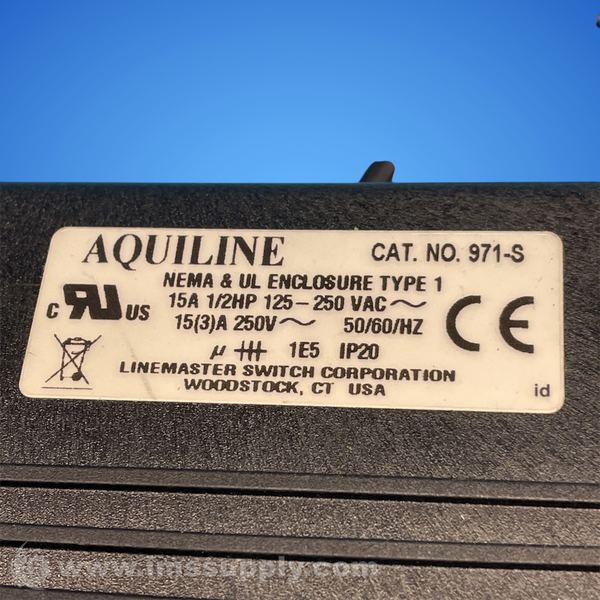

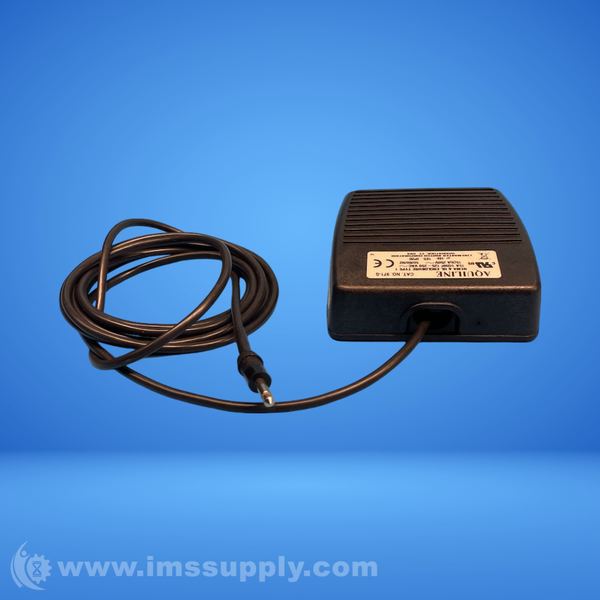

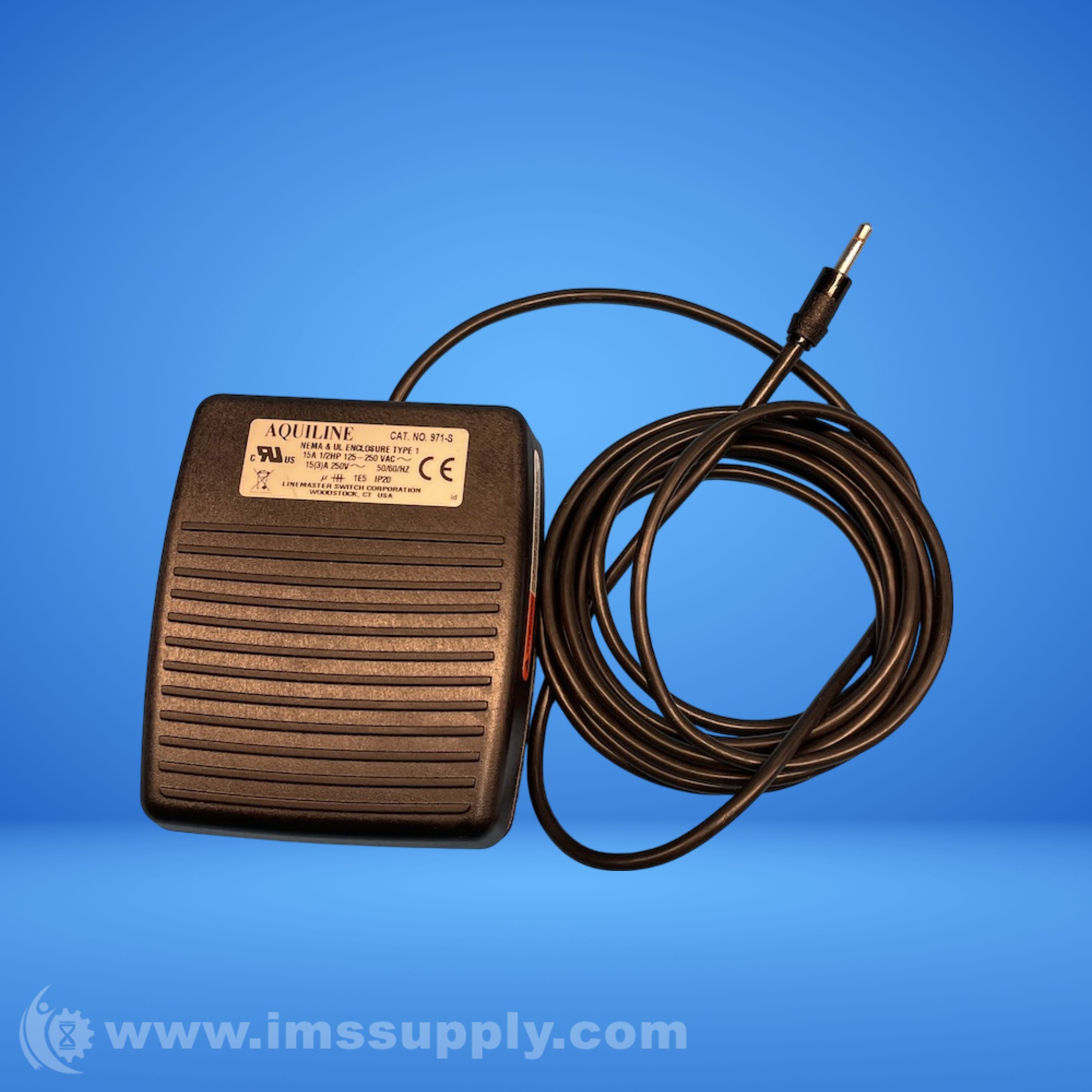

Linemaster 971-S Foot Switch
SPDT foot switch with corrosion-proof polymer housing, raised ribs on treadle, non-skid base, and quick-connect terminals. Rated for 15A at 250V AC, with momentary operation and IP20 ingress protection.
Specifications
- Contact Configuration: SPDT
- Switch Operation: Momentary (On)
- Contact Current Max: 15A
- Contact Voltage AC Nom: 250V
- External Height: 29.5mm
- External Width: 87.4mm
- External Depth: 101.6mm
- Enclosure: Polymer plastic
- Ingress Protection: IP20
- Standards met: UL Recognized, CE
- Dimensions: 1.09 x 3.44 x 4.0 inches (H x W x D)
- Input: 125-250 VAC, 15 amp
- Power: 1/2 hp
- Color: Dark Gray
