LINK BELT PU3K55 PILLOW BLOCK BALL BEARING
Quick Overview
Manufactured By: LINK BELT
Manufacturer Part Number: PU3K55
IMS Product Code: 2150054
Packaging: Sold Individually
Description:

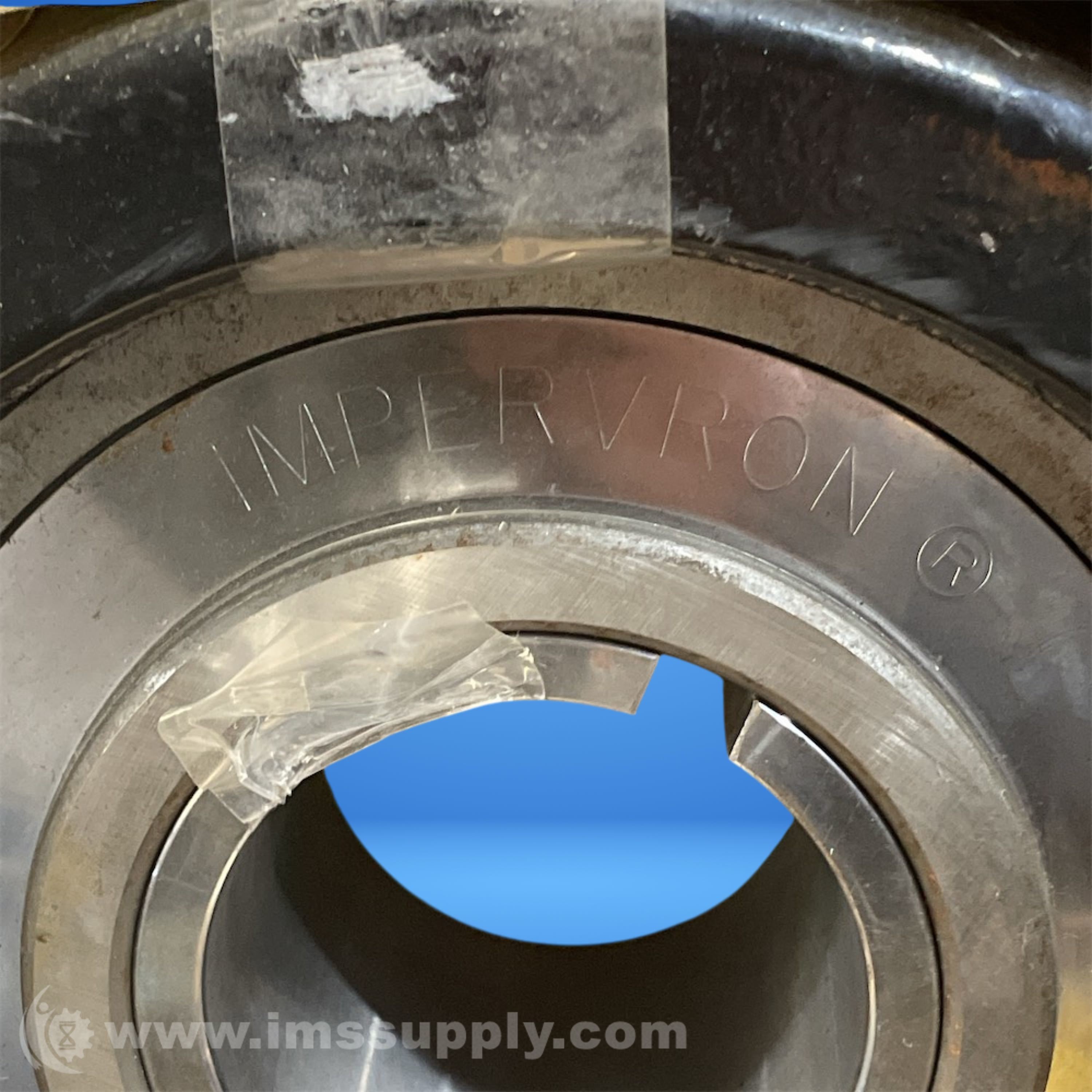

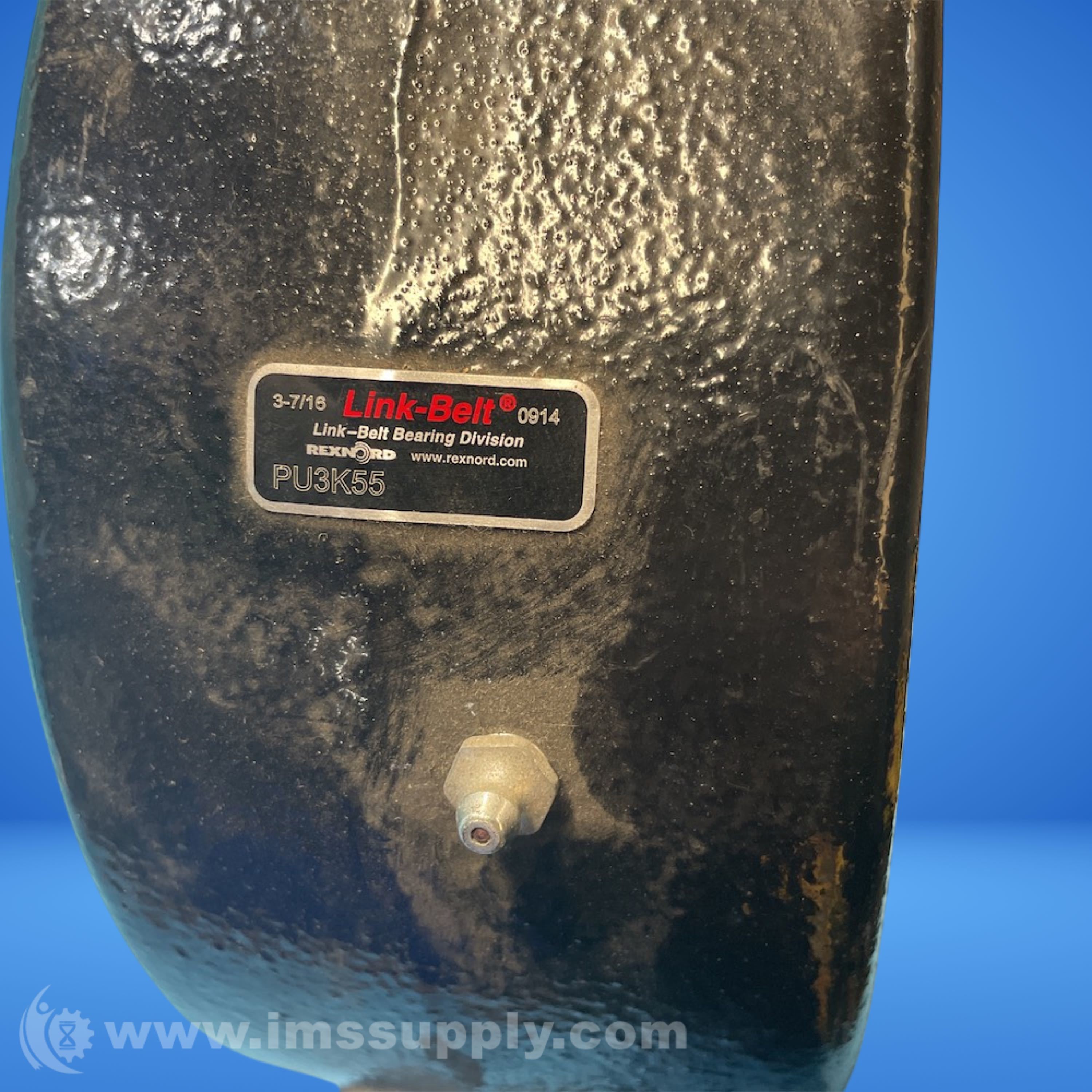

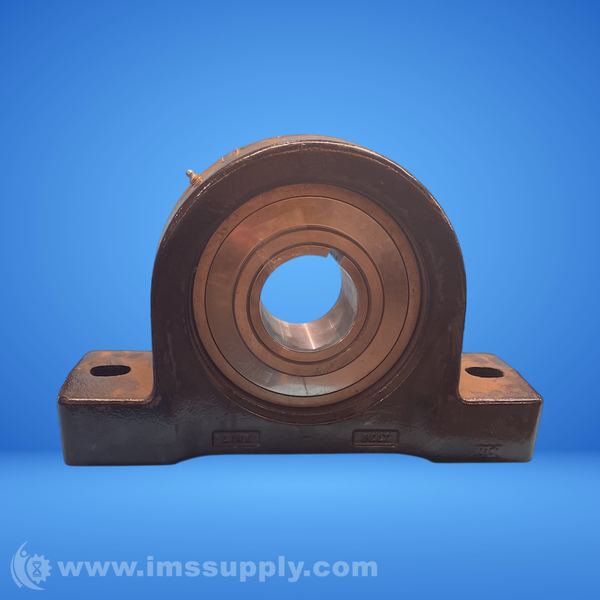

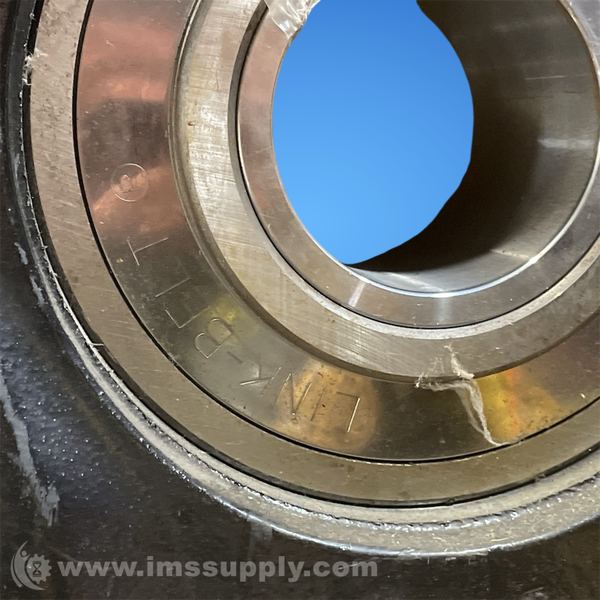

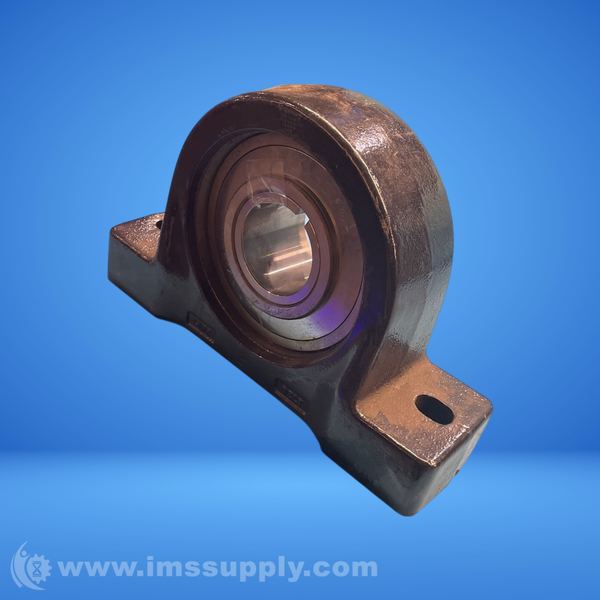

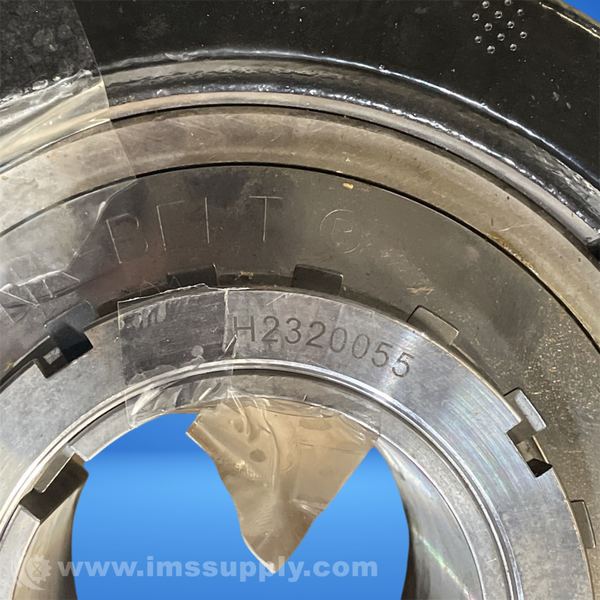

Link Belt PU3K55 Pillow Block Ball Bearing
Pillow block ball bearing unit with 2-bolt base, 3-7/16 inch bore diameter, cast iron housing, and adapter mounted locking device.
Specifications
- Mounting Type: 2-Bolt Base
- Bore Diameter: 3-7/16 in
- Bolt Center-to-Center Length: 14-1/2 in
- Base to Bore Centerline: 5-11/16 in
- Overall Length: 17-5/16 in
- Overall Height: 11-1/16 in
- Base Width: 5 in
- Duty Type: Heavy Duty
- Locking Device: Adapter Mounted
- Seal Type: Clearance
- Expansion Type: Non-Expansion
- Housing Material: Cast Iron
- Finish: Powder Coated
- Radial Dynamic Load Capacity: 45000 lb
- Radial Static Load Capacity: 31600 lb
- Maximum Speed: 2750 rpm
- Lubrication Type: Lubrication Fitting
- Series: 300
- Weight: 82 lbs
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
