LOVEJOY 68514411087 JAW COUPLING HUB
Quick Overview
Manufactured By: LOVEJOY
Manufacturer Part Number: 68514411087
IMS Product Code: 937216
Packaging: Sold Individually
Description:

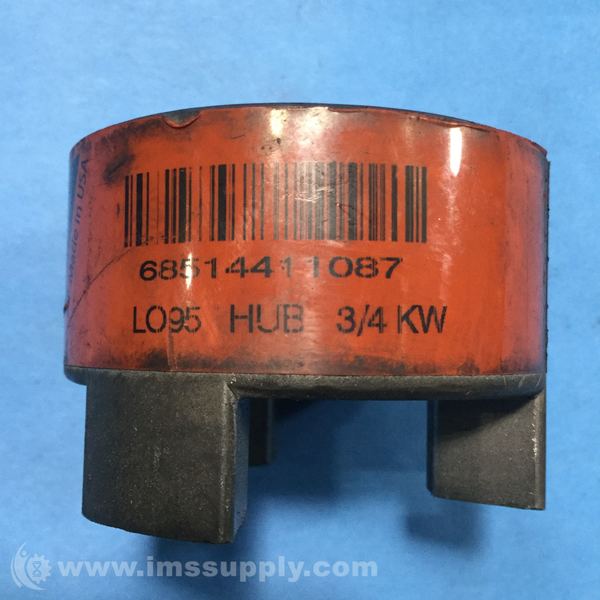

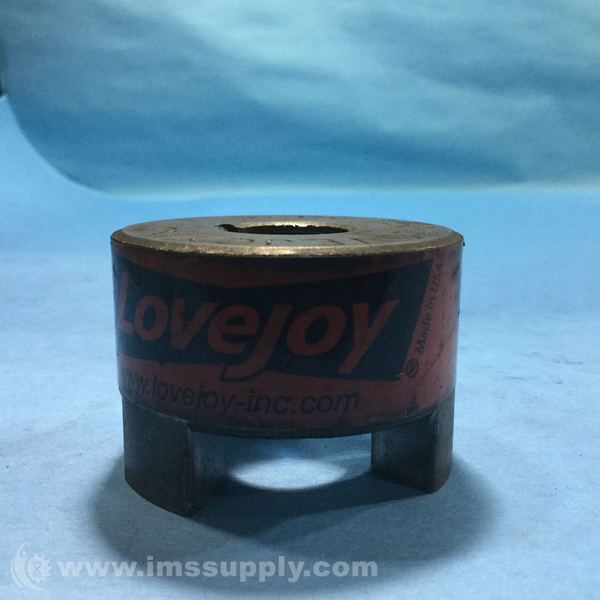

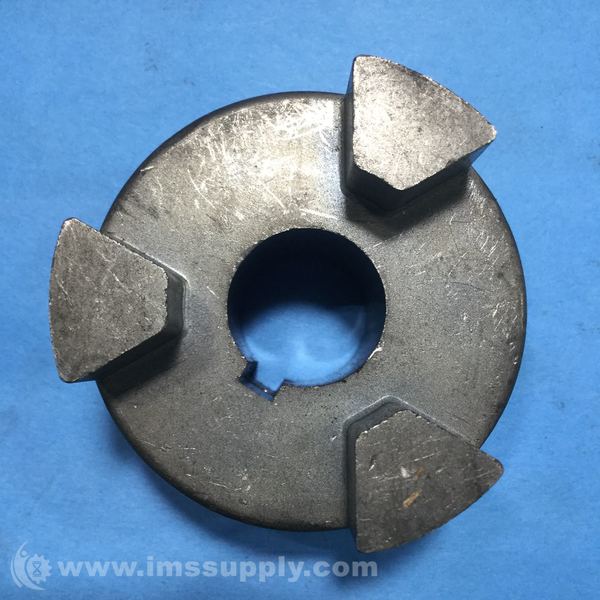

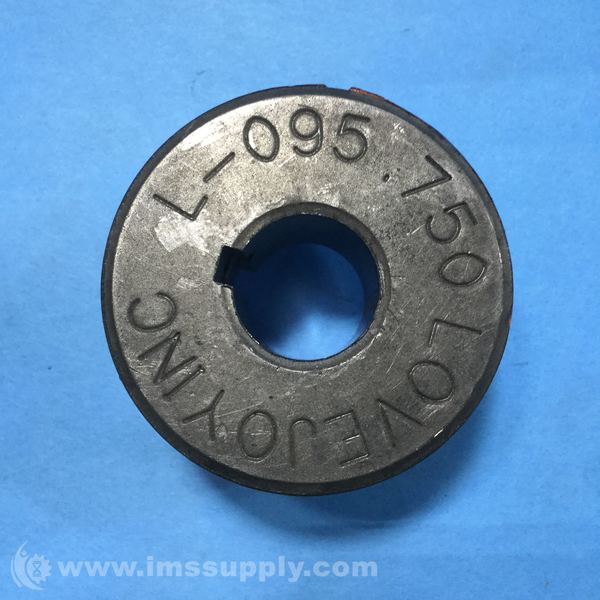

Lovejoy 68514411087 Jaw Coupling Hub
Jaw coupling hub made of sintered iron, L095 coupling size, 3/4 inch bore diameter, 1 inch length through bore, 2.11 inch hub diameter, 1.52 inch hub length, with 3/16 x 3/32 inch keyway and 5/16-18 setscrew.
Specifications
- Type: L-Type
- Coupling Size: L095
- Bore Diameter: 3/4 in
- Length Through Bore: 1 in
- Hub Diameter: 2.11 in
- Hub Length: 1.52 in
- Keyway Size: 3/16 x 3/32 in
- Material: Sintered Iron
- Maximum Speed: 9000 rpm
- Screw Size: 5/16-18
- Finish: Metallic
- Bore Type: Round Bore with Keyway
- Fail Safe: Yes
- Maximum Operating Temperature: 212 F
- Minimum Operating Temperature: -40 F
- Shaft Locking Type: Set Screw
- Standards: ANSI B92.1A; ANSI/AGMA 9002-B04; ANSI/AGMA 9112-A04; DIN 5480
- System of Measurement: Inch
- For Shaft Type: Keyed
- Number of Locking Screws: 1
- Outside Diameter: 2-7/64 in
- Coupling Overall Length: 2-33/64 in
- Maximum Bore Diameter: 1-1/8 in
- Minimum Bore Diameter: 7/16 in
- Resistance Properties: Oil Resistant; Water Resistant
- Coupling Type: Jaw
- Hub Style: 1
- Elastomeric Member: SOX (NBR) Rubber
- Weight: 0.73 lb
- Nominal Torque: 194 in-lb
- Rated HP at 100 rpm: 0.31 hp
