LOVEJOY 68514436052 COUPLING FLANGE
Quick Overview
Manufactured By: LOVEJOY
Manufacturer Part Number: 68514436052
IMS Product Code: 937315
Packaging: Sold Individually
Description:

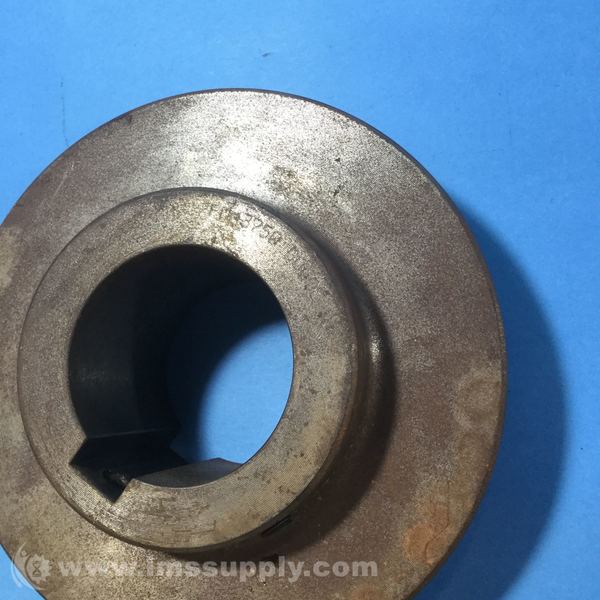

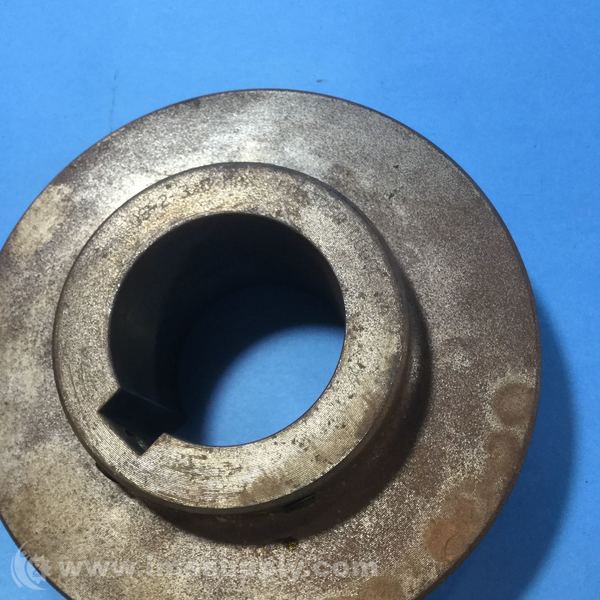

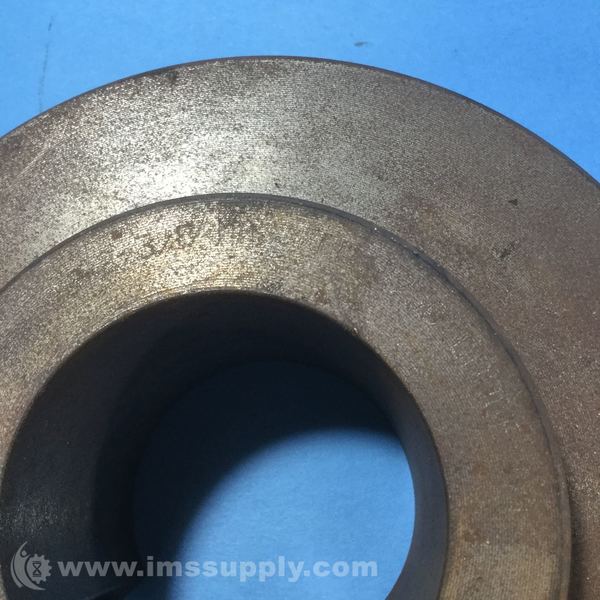

Lovejoy 68514436052 Coupling Flange
Type J Finished Bore Coupling Flange, 4J Coupling, 5/8 in Bore, 1.63 in Diameter Hub, 0.44 in Hub Length, 3/16 x 3/32 in Keyway, 7600 rpm Maximum, 0.88 in Length Through Bore, 1/4-20 Screw, Zinc Alloy
Specifications
- Type: Type J Finished Bore
- Material: Zinc Alloy
- Maximum Speed: 7600 rpm
- Screw Size: 1/4-20
- Hub Length: 0.44 in
- Keyway Size: 3/16 x 3/32 in
- Coupling Size: 4J
- Length Through Bore: 0.88 in
- Hub Diameter: 1.63 in
- Bore Size: 5/8 in
- Bore Type: Finished with Keyway
- Outside Diameter: 2.46 in
- Torque Rating: 120 in-lb
- Coupling Type: S-Flex
- Weight: 0.41 lb
- Torsional Stiffness: 458 in-lb/rad
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
