LUMBERG ASB4/LED5/4-328/5M M12 DISTRIBUTION BLOCK
Quick Overview
Brand: LUMBERG AUTOMATION
Part Number: ASB4/LED5/4-328/5M
IMS Product Code: 2131931
Packaging: Sold Individually
Description:

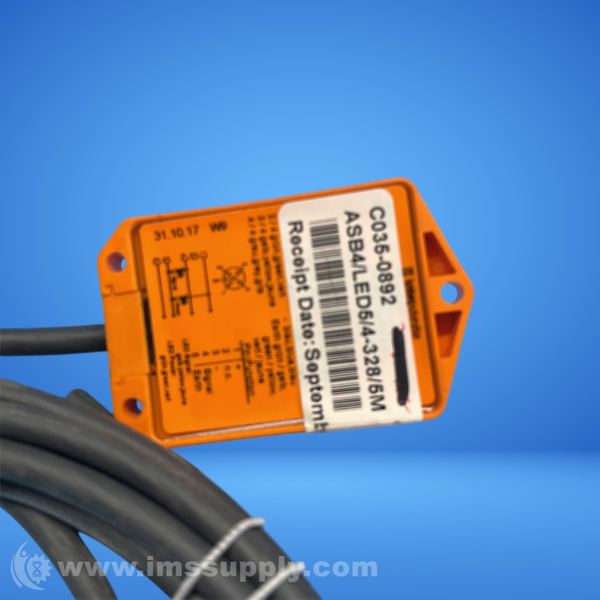

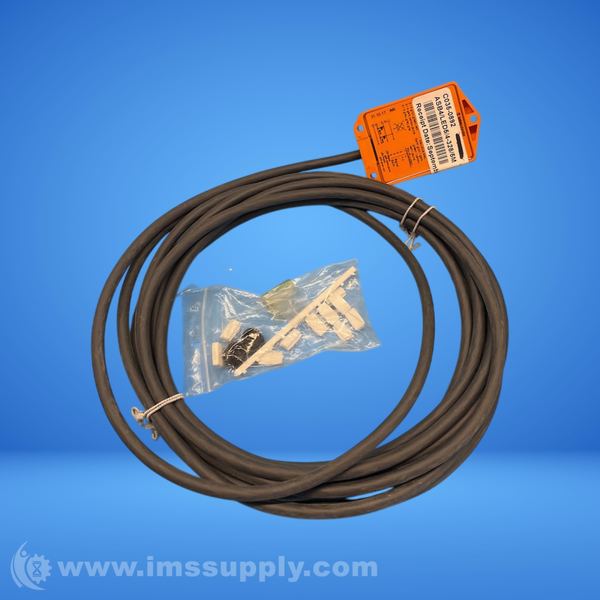

Lumberg ASB4/LED5/4-328/5M M12 Distribution Block
4-port M12 distribution block with 5m PUR cable, IP65/IP67 rated, -40C to 80C operating temperature.
Specifications
- Cable Length: 5 Meters
- Cable Jacket: Black PUR
- Contact Material: CuZn (pre-nickeled and gold plated)
- Housing Dimensions: 129.7mm Length x 59.6mm Width x 17.7mm Height (5.11" x 2.35" x 0.7")
- Housing Material: Zinc die-casting
- Insulation Resistance: > 10^9 Ohm
- LEDs: Operation Display: LED Green; Function Display/Channel Status: LED Channel A: Yellow, LED Channel B: White
- O-Ring Material: FKM
- Operating Temperature Range: -40 C to 80 C (dragchain & UL max. 60 C)
- Pollution Severity: 3
- Ports: 4
- Protection Class: IP 65/IP 67
- Rated Current: 4 A per outlet / 8 A max. total, at 40 C
- Rated Impulse Voltage: 32 V
- Rated Voltage: 30 V
