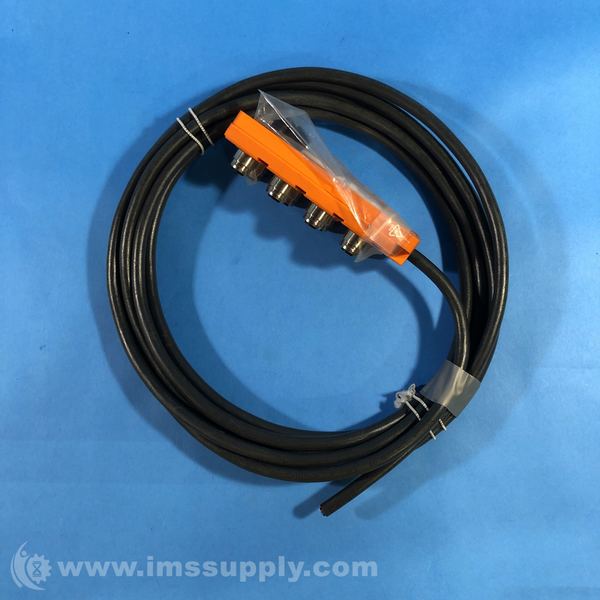

LUMBERG ASB8/LED-5-4-331/5M M12 DISTRIBUTION BOX
Quick Overview
Brand: LUMBERG AUTOMATION
Part Number: ASB8/LED-5-4-331/5M
IMS Product Code: 1930543
Packaging: Sold Individually
Description:
Lumberg ASB8/LED-5-4-331/5M M12 Distribution Box
8-port M12 distribution box with LED indicators, 5m PUR cable, IP67 rated
Specifications
- Cable Length: 5M
- Housing Dimensions: 127 mm Length x 54 mm Width x 30.3 mm Height (5" x 2.12" x 1.19")
- Operating Temperature: 5 F to 176 F (-15 C to 80 C)
- Housing Material: Orange TPU
- Degree of Protection: IP 67 (Total protection for dust and temporary immersion in water - 1 meter for up to 30 minutes)
- I/O Connection: M12, 5 pole (1 pin not connected), A-Coded
- Number of Ports: 8
- I/O Wiring Configuration: Single I/O Per Port
- Control Cable Interface: Open End
- Contact Base Material: Gold Plated Copper Zinc
- Contact Bearer Material: Polyamide
- O-Ring Material: FKM
- Contact Resistance: <= 5 mOhm
- Insulation Resistance: > 10^9 Ohm
- Outer Cable Diameter: 0.315" (8 mm)
- Conductor Size: 3 x 0.75 mm2, 8 x 0.34 mm2
- Approvals: CE, RoHS Compliant, cULus, CSA
- Status Indicator: Green LED
- Nominal Actuator Supply Voltage: 24V DC
- Actuator Supply Voltage Range: 10 - 30V DC
- Current Per Connector: 1.5 Amps Max
- Port Status Indicator: Yellow LED Per Channel
