LUTZE 772002 ETHERNET SWITCH
Quick Overview
Manufactured By: LUTZE
Manufacturer Part Number: 772002
IMS Product Code: 2142794
Packaging: Sold Individually
Description:

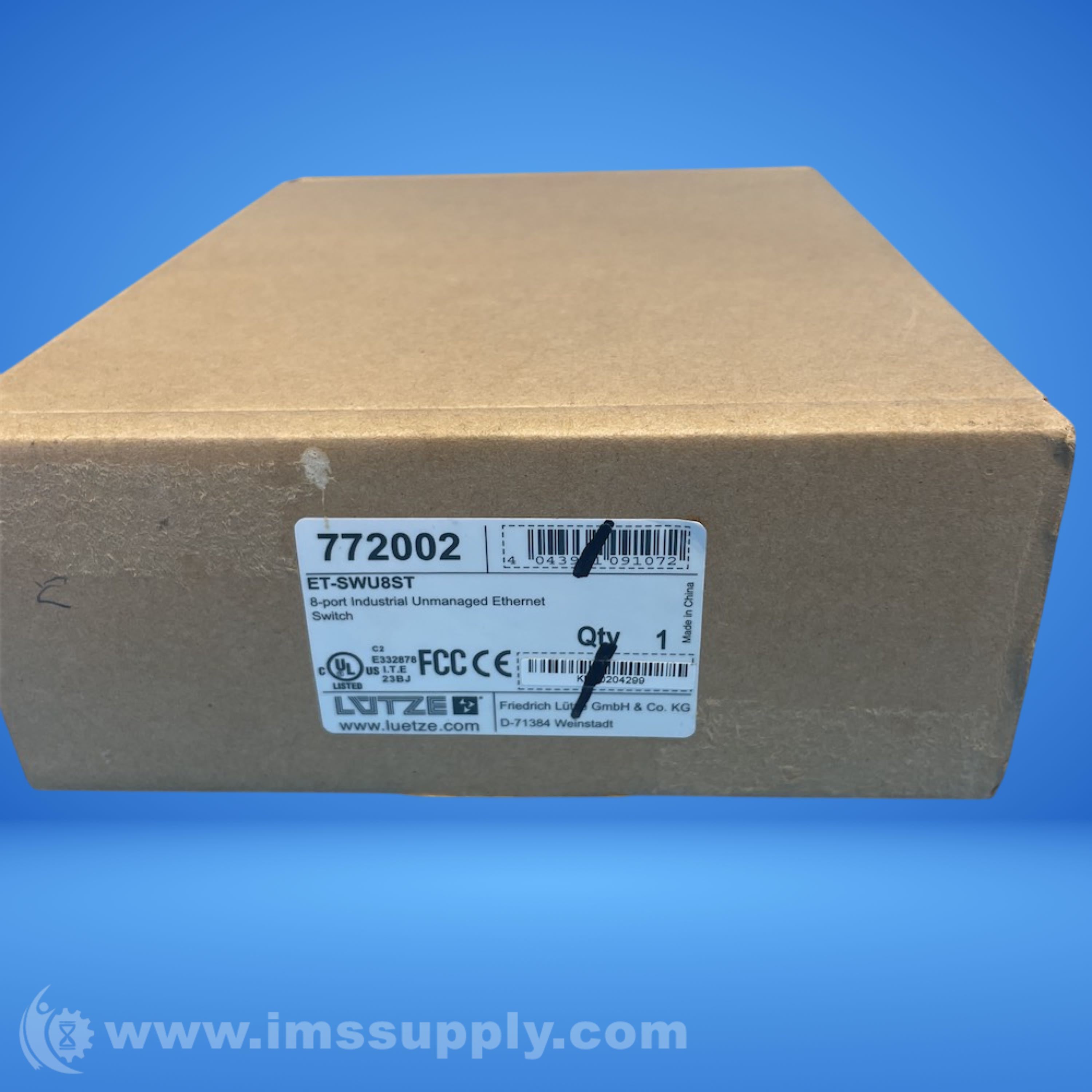

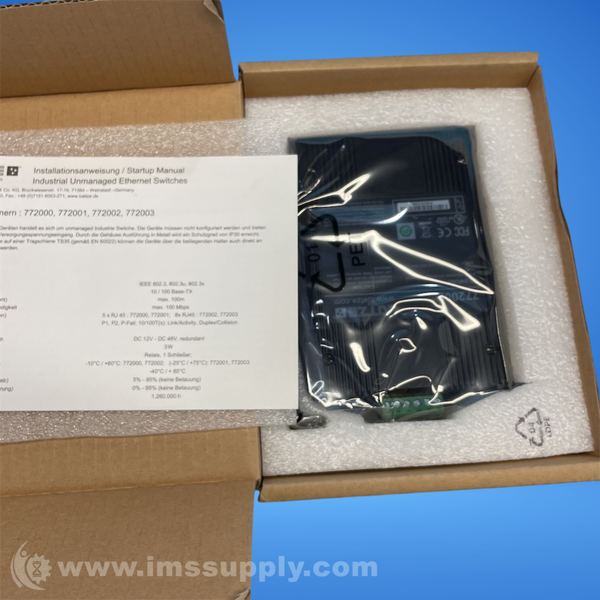

Lutze 772002 Ethernet Switch
8-port unmanaged industrial Ethernet switch with 10/100 Base-TX connections
Specifications
- Standard: IEEE 802.3, 802.3u, 802.3x
- LAN: 10 / 100 Base-TX
- Cable length (segment): Max. 100 m
- Transfer rate: max. 100 Mbit/s
- Connection technology (data): 8 x RJ45
- Operation voltage range: DC 12V - DC 48V, redundant
- Power consumption: 5 W
- Protection class: IP20
- Relative humidity (operation): 5 % - 95 % (non-condensing)
- Operation temperature range: -10 degrees C - +60 degrees C
- Dimensions (w x h x d): 37 x 140 x 95 mm
- Weight: 0.6 kg
- Housing material: Metal
- Mounting: DIN rail mountable TS35 (EN 60715)
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
