LYNDEX 100-036 TG100 COLLET
Quick Overview
Manufactured By: LYNDEX
Manufacturer Part Number: 100-036
IMS Product Code: 1908840

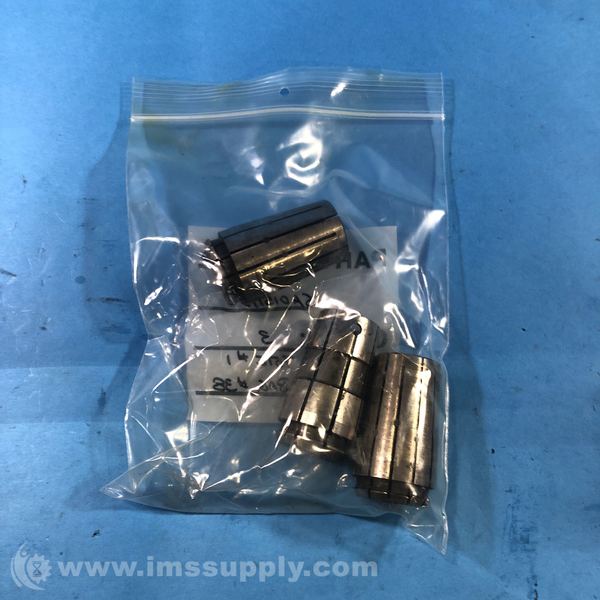

Packaging: Pack of Sets 3
Description:

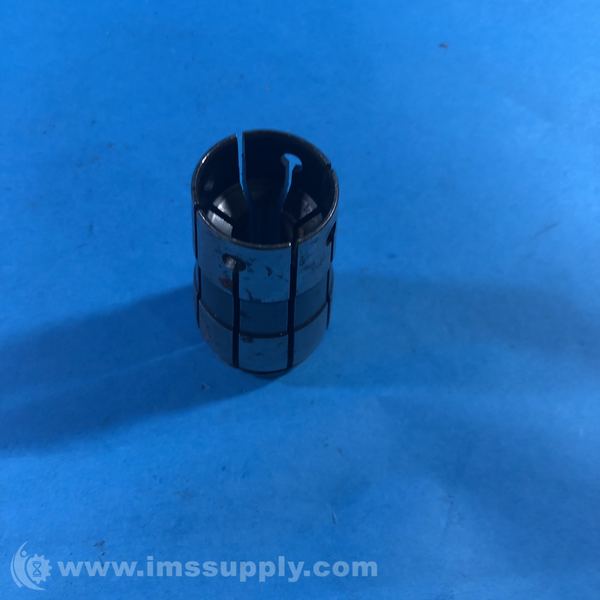

Lyndex 100-036 TG100 Collet
Standard TG collet for precision machining, 9/16 inch capacity, chrome-plated low-carbon steel construction.
Specifications
- Collet Series: TG100
- Bore Shape: Round
- Collet Size: 9/16 in
- Collapse Range: 0.5474 in to 0.563 in
- Clamping Hole Length: 1-59/64 in
- Outside Diameter - Maximum: 1.38 in
- Overall Length: 2.386 in
- Taper Angle: 8 degrees
- T.I.R. Tolerance: 0.0002 in
- Torque - Maximum: 75 ft-lb
- Material: Low-Carbon Steel
- Finish: Chrome-Plated
- Standards: AT3
- Collet Type: Standard
- Type: Imperial Standard
- Head Diameter: 1.278 in
- Capacity: 9/16 in
- Suitable For Use With: TG Collet Chuck
- Clamping Range: 0.547 - 0.562 inches
- Accuracy TIR: 0.0005 inches
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
