LYNDEX B3007-0025-2.00 BT30 ER25 COLLET CHUCK
Quick Overview
Manufactured By: LYNDEX
Manufacturer Part Number: B3007-0025-2.00
IMS Product Code: 1936356
Packaging: Sold Individually
Description:

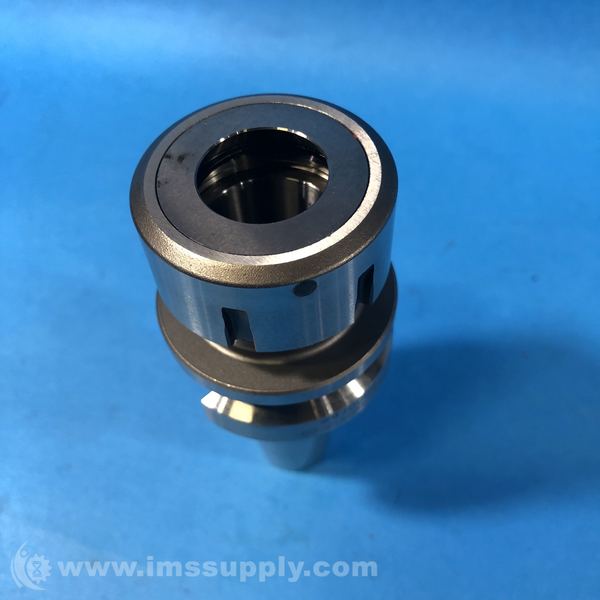

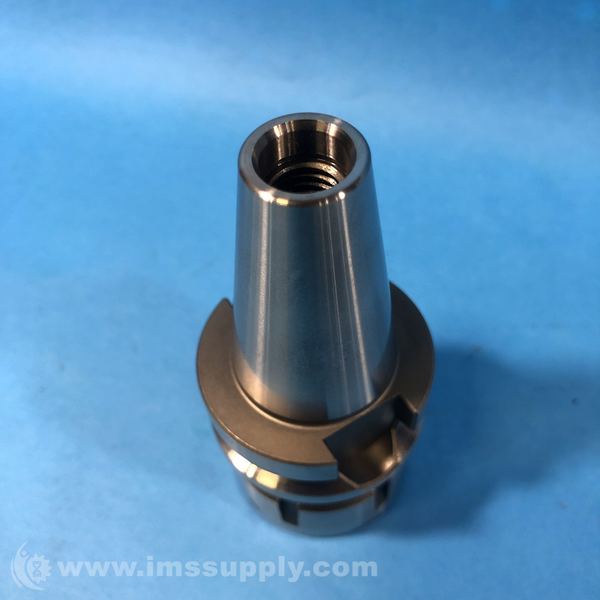

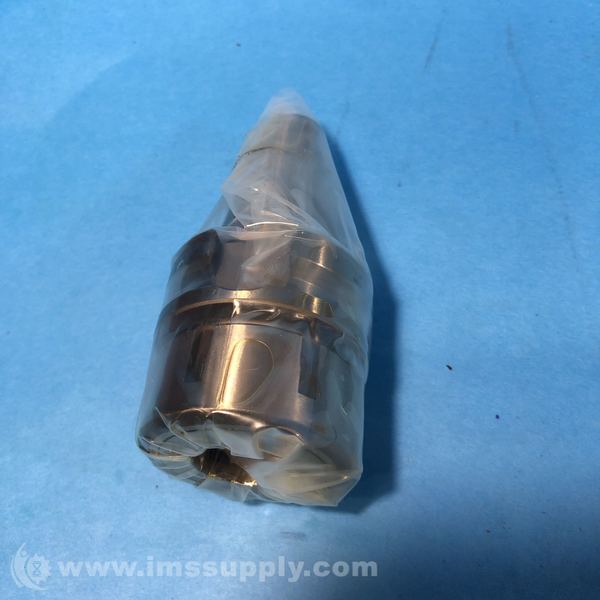

Lyndex B3007-0025-2.00 BT30 ER25 Collet Chuck
High torque bearing nut collet chuck with BT30 taper shank and ER25 collet system.
Specifications
- type: Bearing Nut High Torque Standard
- nose diameter: 1.65 in
- head length/projection: 2 in
- modular connection size: BT30
- collet system: ER25
- shank type: BT Taper
- taper size: BT30
- collet nut diameter: 1.65 in
- through coolant: Yes
- min. collet capacity: 0.0390 in
- max. collet capacity: 0.629 in
- nut diameter: 1.65 in
- overall length: 3 29/32 in
- pre-balanced: Yes
- material: Molybdenum
- balanceable: No
- coolant fed: Yes
- torque - maximum: 73 ft-lb
- T.I.R. tolerance: 0 in
- product type: BT Collet Chuck
- compatible collet series: ER25
- speed - maximum: 23,000 RPM
- finish: Nickel Chrome
- coolant supply: Coolant Through
- shank type: Taper
- includes coolant screws: Yes
- includes nut: Yes
- weight: 1.23 LBS
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships today if ordered in the next 10 hours and 55 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 10 hours and 55 minutes.
