LYNDEX E32-354 ER32 COLLET
Quick Overview
Manufactured By: LYNDEX
Manufacturer Part Number: E32-354
IMS Product Code: 1932235
Packaging: Sold Individually
Description:

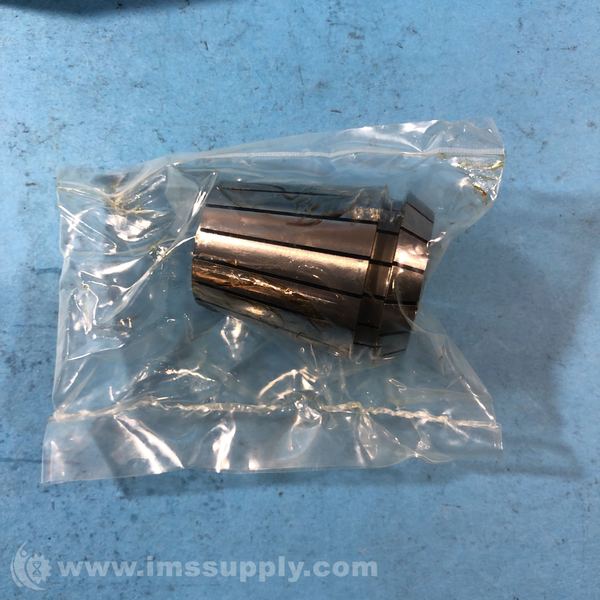

Lyndex E32-354 ER32 Collet
ER32 collet for clamping cutting tools, 9 mm capacity.
Specifications
- Collet Series: ER32
- Bore Shape: Round
- Measurement System: Metric
- Collet Size: 9 mm
- Collapse Range: 8 mm to 9 mm
- Clamping Hole Length: 1-3/16 in
- Outside Diameter - Maximum: 1.3 in
- Overall Length: 1-9/16 in / 40 mm
- Taper Angle: 16 degrees
- Material: Chromium-Molybdenum
- Standards: DIN 6499
- Collet Type: Standard
- Body Diameter: 33.2 mm
- Head Diameter: 33.2 mm
- Capacity: 9 mm
- Suitable For Use With: ER Collet Chuck
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 3 In Stock
Ships today if ordered in the next 10 hours and 52 minutes.
