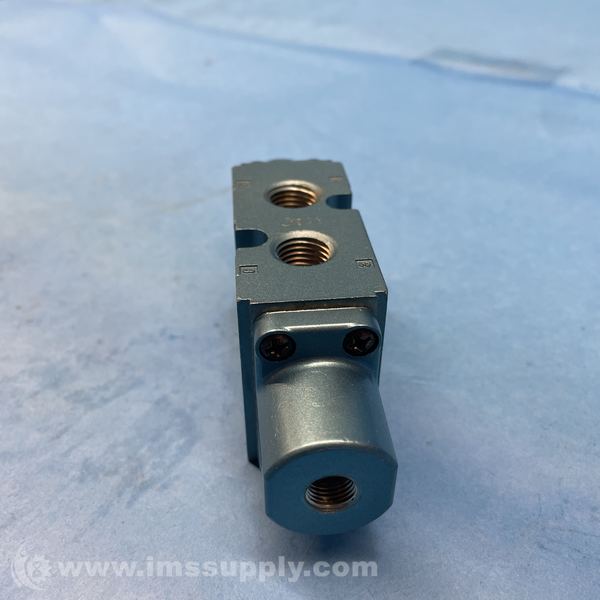

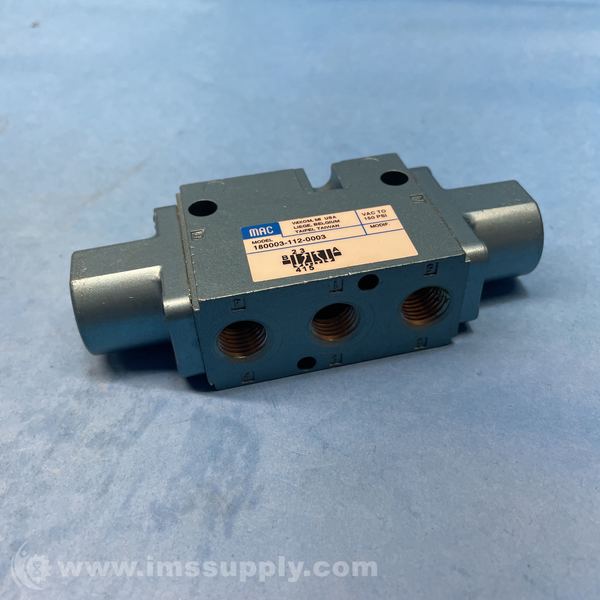

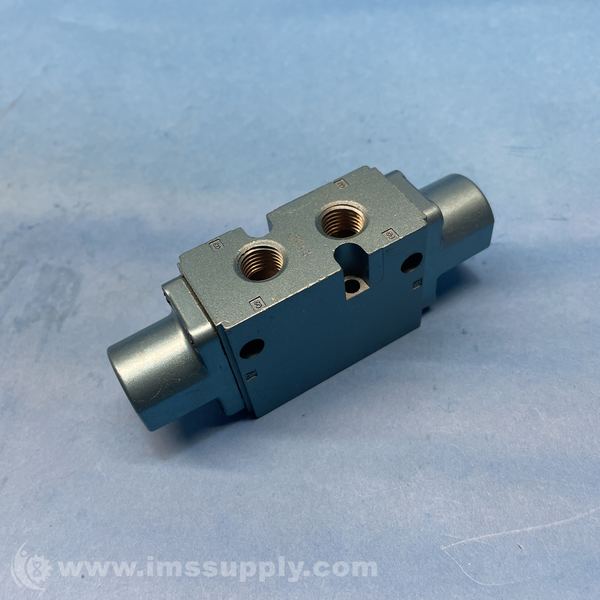

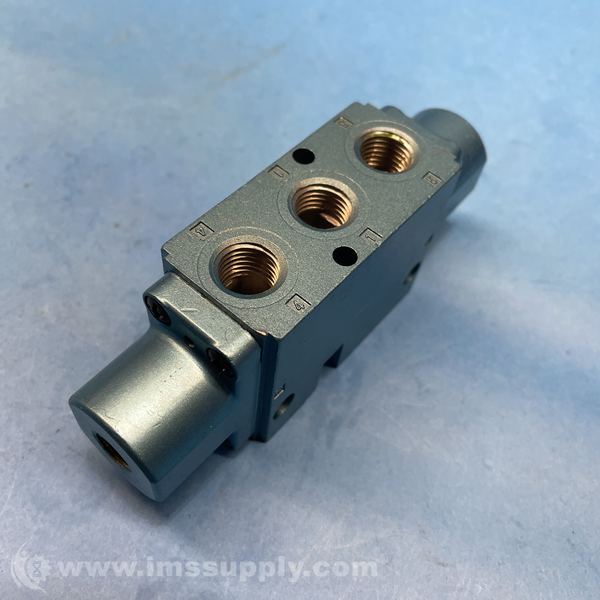

MAC VALVES 180003-112-0003 PNEUMATIC SPOOL VALVE
Quick Overview
Manufactured By: MAC VALVES INC
Manufacturer Part Number: 180003-112-0003
IMS Product Code: 2135334
Packaging: Sold Individually
Description:
MAC Valves 180003-112-0003 Pneumatic Spool Valve
5/2-way double operator pneumatically-actuated spool valve with 2 standard pilots, single pressure valve, 1/4" NPTF pneumatic ports, bistable operation, vacuum to 200psi pressure range
Specifications
- Product Series: 1800 series (remote air)
- Functions: Double-operated pneumatically-actuated spool valve (Cv 1.4)
- Valve Function: 5/2-way double operator
- Number of Ports: 5
- Number of Positions: 2
- Operation: Bistable
- Pressure Range: vacuum to 200psi
- Pilot Pressure Range: 10 to 150psi
- Connection Type: 1/4" NPTF threaded female pneumatic ports
- Pilot Port Connection: 1/8" NPTF threaded female pneumatic pilot port(s)
- Mounting Mode: Individual in-line installation
- Dimensions: H50mm x W30mm x D124mm
- Ambient Air Temperature: -18 to 50 degrees C
- Weight: 0.79 lbs

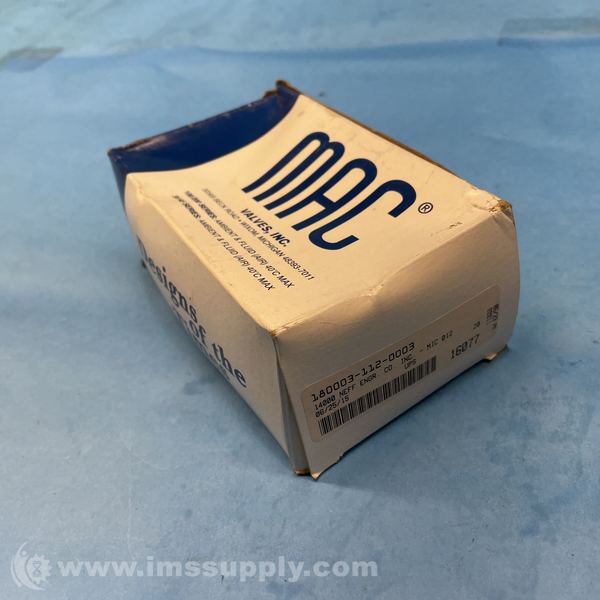

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships today if ordered in the next 7 hours and 1 minutes.
