MACAIR ADF-2 PROGRAMMABLE ELECTRONIC DRAIN VALVE

Call For Quote

Quick Overview

Manufactured By: MACAIR
Manufacturer Part Number: ADF-2
IMS Product Code: 1793080
Packaging: Sold Individually

Description:

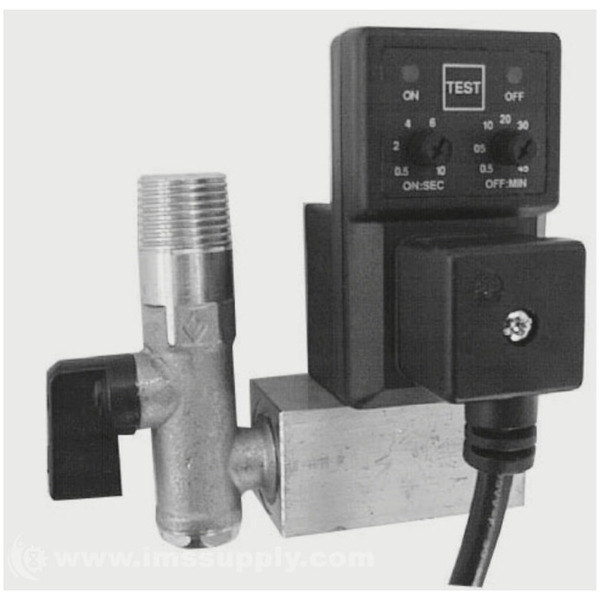

MACAIR ADF-2 Programmable Electronic Drain Valve

The ADF series drain reliantly discharges accumulated fluids from filters, dryers, drip legs, air receiver tanks, separators and other points to keep downstream operations free of liquid contaminations.

Specifications:

  • Connection Size (NPT): 1/4"
  • Voltage: 115v or 230v, 1ph-60hz
  • MAX. PSI: 230
  • Oriface (mm): 3.5
  • Seal Type: Viton
  • Timer Manual PUSH to TEST button to check operation
  • Timer Environmental protection- NEMA 4 when installed
  • Programmable Open and Closed time. Open from . 5 sec to 10 sec, Closed from .5 min to 45 min
  • Cleanable mesh strainer and isolation valve
  • Valve open LED light and valve closed LED light.
  • Valve Body- Forged brass
  • Cleanable mesh strainer and isolation valve
