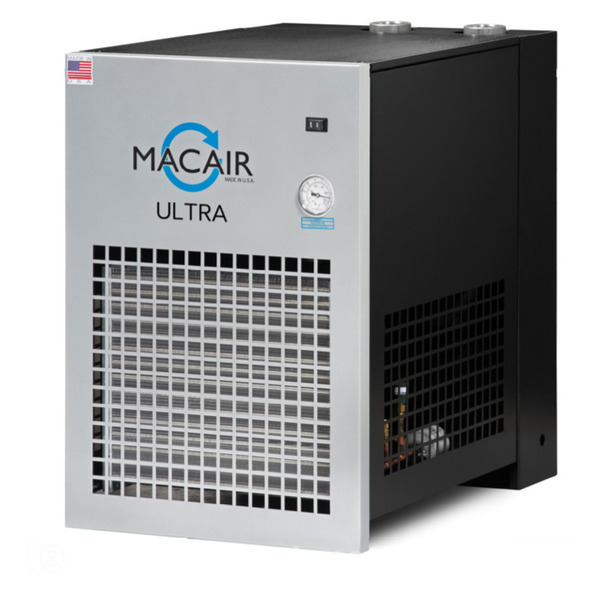

MACAIR UA250A ULTRA NON-CYCLING AIR DRYER 208-230V 1PH 60HZ

Call For Quote

Quick Overview

Manufactured By: MACAIR
Manufacturer Part Number: UA250A-208-230V-1PH-60HZ
IMS Product Code: 1792885
Packaging: Sold Individually

Description:

MACAIR UA250A Ultra Non-Cycling Air Dryer 208-230v 1ph 60hz

MECHANICAL SPECS

  • Inlet Air Flow: 250 SCFM
  • Inlet Pressure: 100 PSIG
  • Inlet Temp: 100 F
  • DEWPOINT TEMP: 38 F
  • COOLING AIR FLOW: 820 CFM
  • PRESSURE LOSS, DESIGN: 2.7
  • CONDENSER TYPE: Air Cooled
  • WEIGHT: 295 LBS
  • IN & OUT CONNECTION: 2” FPT
  • DRAIN CONNECTION: 1/4” FPT
  • MAXIMUM AMBIENT TEMP: 110 F
  • MINIMUM AMBIENT TEMP: 40 F
  • MAXIMUM AIR PRESSURE: 232 PSIG

ELECTRICAL SPECS

  • Locked Rotor Amps: 24
  • Rated Load Amps: 3.8
  • Max Fuse: 15
  • Power Connection: 460-3-60
  • Full Load Power (WATTS): 2110

STANDARD FEATURES

  • Aluminum block heat exchanger
  • Air to air pre-cooler/re-heater
  • Stainless Steel mesh separator
  • Tecumseh Compressor
  • Suction Pressure Gauge
  • On-Off Switch
  • Compressor Overload
  • Heavy duty industrial powder coated steel cabinet
  • Environmentally friendly R404a refrigerant
  • Refrigerant access ports
  • Expansion valve
  • Hot Gas Bypass Valve
  • Filter Drier
  • Programmable electronic drain valve with y-strainer
  • Easy access cabinet design allows for ease of service.

OPTIONAL FEATURES

  • Pre-filter and after-filters mounted on the dryer
  • 575-3-60 or 230-3-60
  • Additional pressure and temperature gauges
  • Ambient Air Filter
