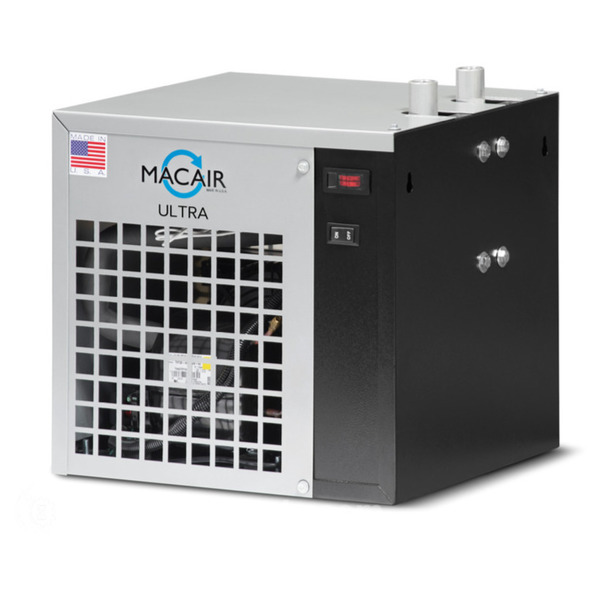

MACAIR UA25A ULTRA SERIES NON-CYCLING AIR DRYER 115V 1HP 60HZ

Call For Quote

Quick Overview

Manufactured By: MACAIR
Manufacturer Part Number: UA25A
IMS Product Code: 1792855
Packaging: Sold Individually

Description:

MACAIR UA25A Ultra Series Non-Cycling Air Dryer 115v 1hp 60hz

MECHANICAL SPECS

  • Inlet Air Flow: 25 SCFM
  • Inlet Pressure: 100 PSIG
  • Inlet Temp: 100 F
  • DEWPOINT TEMP: 38 F
  • COOLING AIR FLOW: 190 CFM
  • PRESSURE LOSS, DESIGN: 2.7
  • CONDENSER TYPE: Air Cooled
  • WEIGHT: 72 LBS
  • IN & OUT CONNECTION: 1/2” FPT
  • DRAIN CONNECTION: “1/4” FPT
  • MAXIMUM ABIENT TEMP: 110 F
  • MINIMUM AMBIENT TEMP: 40 F
  • MAXIMUM AIR PRESSURE: 232 PSIG

ELECTRICAL SPECS

  • Locked Rotor Amps: 22
  • Rated Load Amps: 3.4
  • Max Fuse: 15
  • Power Connection: 115-1-60
  • Full Load Power (WATTS): 260

STANDARD FEATURES

  • Aluminum block heat exchanger
  • Air to air pre-cooler/re-heater
  • Stainless Steel mesh separator
  • Tecumseh Compressor
  • Dew point Indicator
  • On-Off Switch
  • Compressor Overload
  • Heavy duty industrial powder coated steel cabinet
  • Environmentally friendly R134a refrigerant
  • Refrigerant access ports
  • Expansion valve
  • Hot Gas Bypass Valve
  • Filter Drier
  • Programmable electronic drain valve with y-strainer
  • Easy access cabinet design allows for ease of service.
  • 9 foot power cord and plug
  • Ships UPS
  • Made In USA

OPTIONAL FEATURES

  • Pre-filter and after-filters mounted on the dryer
  • 230-1-60 voltages
  • Additional pressure and temperature gauges
  • Mounting Brackets
