MAGNESCALE DK25PR5 DIGITAL GAUGING PROBE
Quick Overview
Manufactured By: MAGNESCALE CO
Manufacturer Part Number: DK25PR5
IMS Product Code: 1824438
Packaging: Sold Individually
Description:

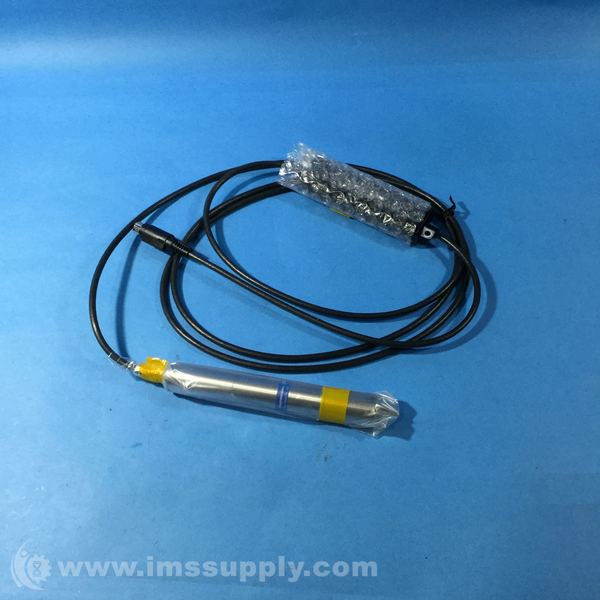

Magnescale DK25PR5 Digital Gauging Probe
25mm stroke digital probe with spring push mechanism, 20mm body diameter, 0.5um resolution, 2.0um accuracy, A/B quadrature output.
Specifications
- Travel: 25mm
- Body Style: Straight
- Probe Spindle Movement: Spring Push
- Body Diameter: 20mm
- A/B Quadrature Output: EIA-422 Line Driver
- Accuracy: 2.0um
- Resolution: 0.5um
- Response Speed: 250m/min
- Protection: IP64
- Power Requirements: 5VDC @ 350mA
- Cable Length: 2 meters
