MALLORY SONALERT SC110NJ PIEZO BUZZER
Quick Overview
Manufactured By: MALLORY SONALERT PRODUCTS INC.
Manufacturer Part Number: SC110NJ
IMS Product Code: 1910797
Packaging: Pack of 2
Sold Individually
Pack of 2
Description:

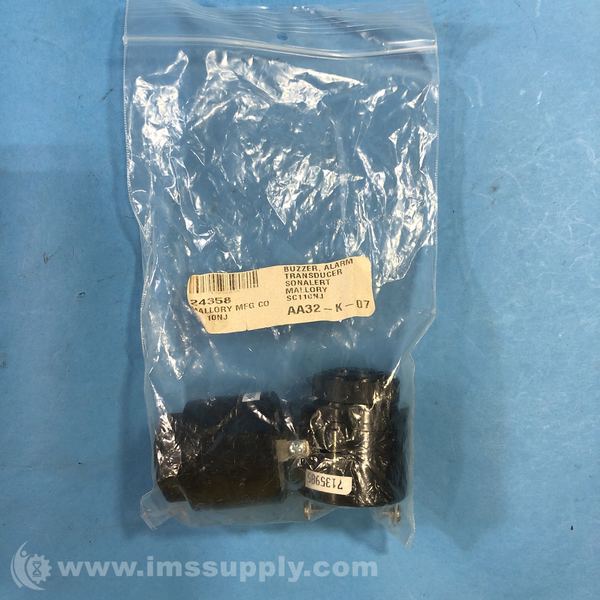

Mallory Sonalert SC110NJ Piezo Buzzer
Piezoelectric alarm buzzer with slow pulse mode, operating at 30-120 VAC/DC, 80dBA sound pressure level, panel mount with screw terminals.
Specifications
- Technology: Piezo
- Tone Mode: Slow Pulse
- Minimum Operating Supply Voltage: 30VAC|30VDC
- Maximum Operating Supply Voltage: 120VAC|120VDC
- Maximum Supply Current (mA): 24
- Mounting: Panel Mount
- Termination Method: Screw
- Number of Terminals: 2
- Minimum Operating Temperature (degrees C): -30
- Maximum Operating Temperature (degrees C): 65
- Product Diameter (mm): 42.85
- Product Height (mm): 47.53
- Driver Circuitry Indicator: Internally Driven
- Input Type: AC, DC
- Voltage Range: 30 ~ 120V
- Frequency: 2.9kHz
- Operating Mode: Pulse, Slow
- Duration: 0.5 ~ 2 PPS
- Sound Pressure Level (SPL): 80dB @ 30V, 61cm
- Current - Supply: 6 ~ 24mA
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
