MALLORY SONALERT SC250 PIEZO AUDIBLE SIGNALING DEVICE
Quick Overview
Manufactured By: MALLORY SONALERT PRODUCTS INC.
Manufacturer Part Number: SC250
IMS Product Code: 943047
Packaging: Sold Individually
Description:

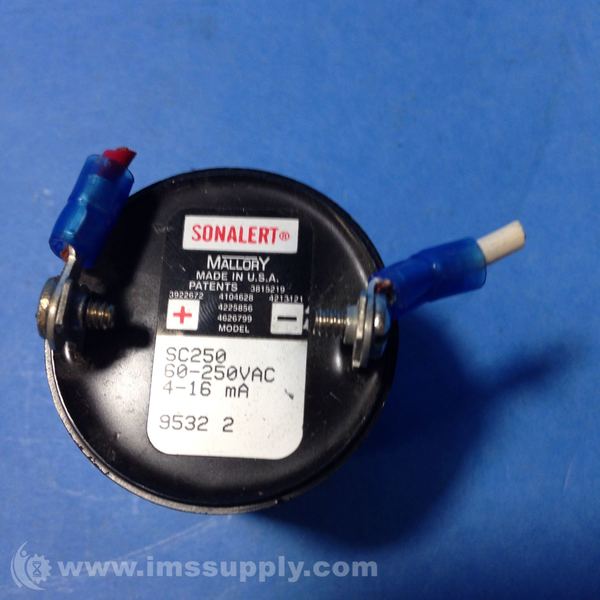

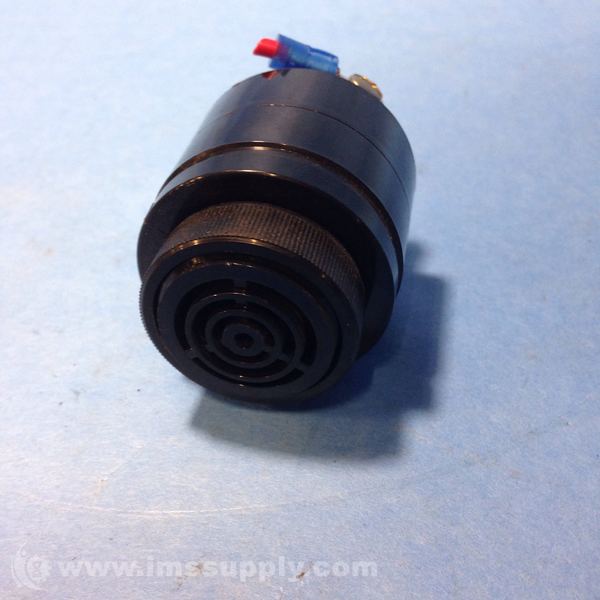

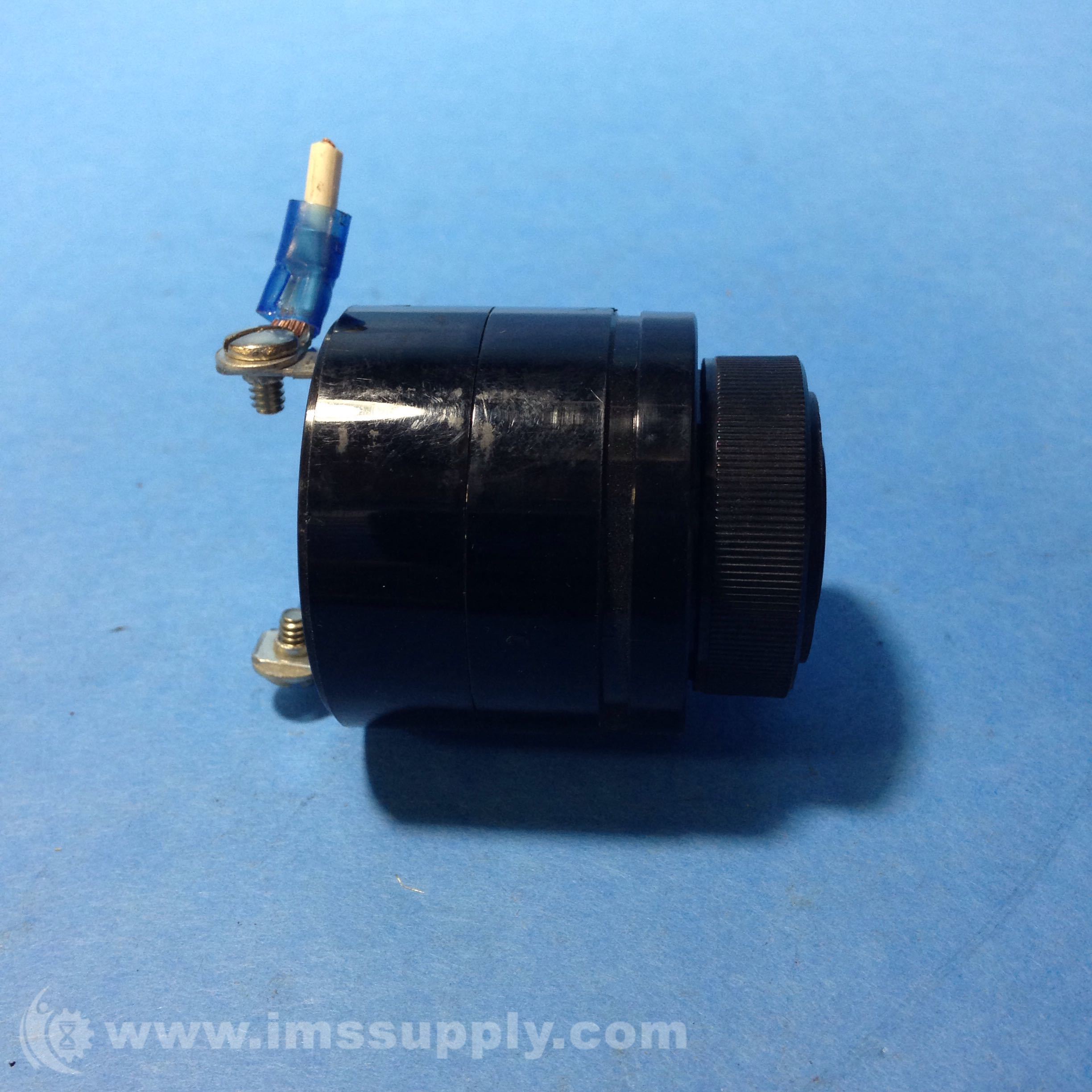

Mallory Sonalert SC250 Piezo Audible Signaling Device
Piezo audible signaling device, panel mount, 60-250V AC/DC, 4-16mA, 2.9kHz, 68dB SPL
Specifications
- Series: SC
- Technology: Piezo
- Operating Mode: Single Tone
- Input Type: AC, DC
- Voltage Range: 60 ~ 250V
- Current: 4-16 mA
- Frequency: 2.9kHz
- Sound Pressure Level (SPL): 68dB @ 60V, 61cm
- Mounting Type: Panel Mount
- Termination: Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)
- Size / Dimension: 1.687" Dia (42.85mm)
- Height - Seated (Max): 1.399" (35.54mm)
- Operating Temperature: -30°C ~ 65°C
- Driver Circuitry: Indicator, Internally Driven
- Approval Agency: cUL
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
